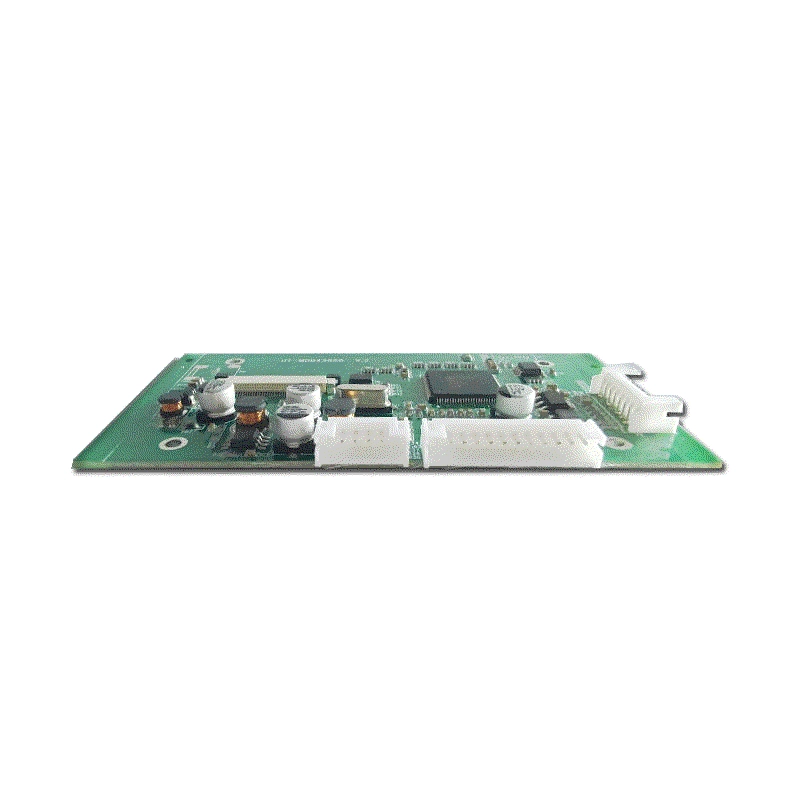

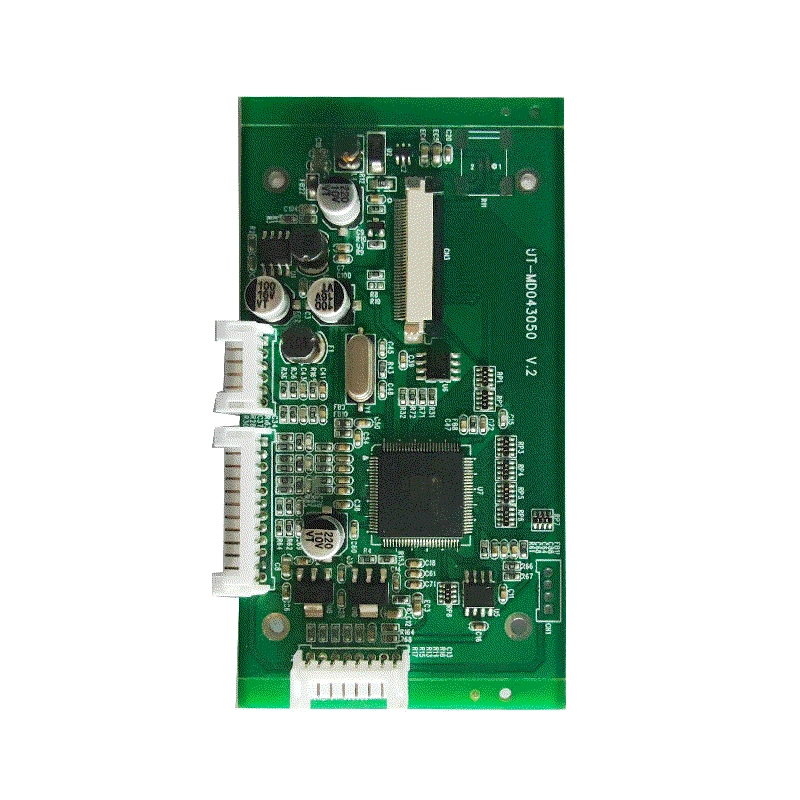

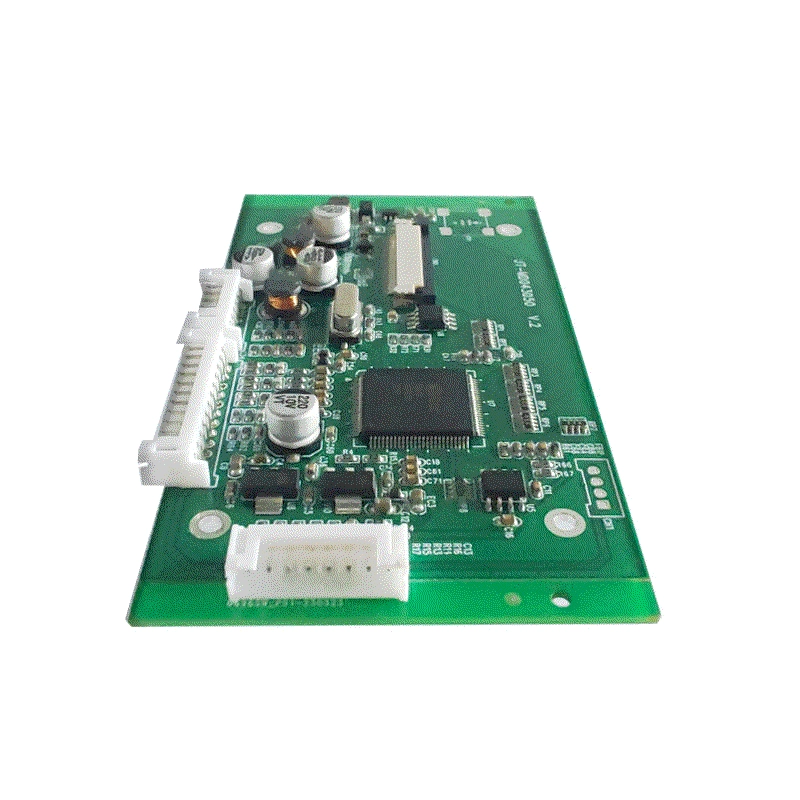

UT - MD043050V.2 TFT Driver Board RGB VGA AV (CVBS)
UT - MD043050V.2 TFT Driver Board RGB VGA AV (CVBS)
UT - MD043050V.2 TFT Driver Board RGB VGA AV (CVBS)
UT - MD043050V.2 TFT Driver Board RGB VGA AV (CVBS)

UT-MD043050V.2 TFT Driver Board RGB VGA AV(cvbs) 800*480 with remote control function

SKU: DS40038
Maximum supported resolution

800*480
Model Source

VGA AV(cvbs)
Output Interface

RGB

The UT – MD043050V.2 TFT Driver Board RGB VGA AV (CVBS) features multiple interfaces for versatile signal input and output, enabling easy connection to various devices, and offers advantages like high – quality image display, low power consumption, and stable performance.

x

    Description

    UT – MD043050V.2 TFT Driver Board RGB VGA AV (CVBS)

    Here are the key points about this UT-MD043050V.2 TFT driver board :
    • Product Specs: UT-MD043050V.2 TFT driver board , multi-signal input support (HDMI/VGA/CVBS), DC +12V power input, multi-function OSD operation, optional remote control function, auto power-off with no signal, supports AT043TN24 V.1/AT043TN25 V.2/AT050TN43 V.1 LCD panels (4.3″/5″, 480×272/800×480 resolution)
    • Applications: Suitable for consumer electronics, industrial control equipment and medical devices requiring diverse video interface connections and high-quality visual display
    • Signal Input Standards: HDMI v1.2 universal version; VGA supports 800×480/800×600/1024×600/1024×768/1280×800 (60-75Hz refresh rate); CVBS 1.0Vp-p 75Ω

    ✅Scope of Application

    Assembly of AT043TN24 V.1, AT043TN25 V.2, and AT050TN43 V.1 for 4.3 – inch and 5 – inch LCD displays with resolutions of 480*272 and 800*480, and their display drivers

    ✅Product Function Description

    TFT Driver Board_

    1 Supports HDMI, VGA, and CVBS video signal input.

    2 The power input is DC +12V.
    3 Features multi – function OSD operation.
    4 Optional remote control function is available.
    5 Auto – power – off when no signal is detected.

    ✅ Signal Input Standards

    1 HDMI: (Universal version 1.2).
    2 VGA: Supports resolutions of 800×480, 800×600, 1024×600, 1024×768, 1280×800 (refresh rate 60 – 75Hz).

    3 CVBS: 1.0Vp – p 75Ω.
    Interface Definition
    CN3 (FPC Socket Definition) 40PIN/ 0.5mm
    Pin No. Function Pin No. Function Pin No. Function Pin No. Function
    1 VLED- 11 R6 21 B0 31 DISP
    2 VLED+ 12 R7 22 B1 32 NC
    3 GND 13 G0 23 B2 33 NC
    4 VDD 14 G1 24 B3 34 DE
    5 R0 15 G2 25 B4 35 NC
    6 R1 16 G3 26 B5 36 GND
    7 R2 17 G4 27 B6 37 NC
    8 R3 18 G5 28 B7 38 NC
    9 R4 19 G6 29 GND 39 NC
    10 R5 20 G7 30 CLK 40 NC
    Operating Power Supply Requirements (AT043TN24 V.1)
    Minimum Value Typical Value Maximum Value Unit
    Operating Voltage 9 12 14 V
    Operating Voltage 130 100 70 mA

    Customizable Parts

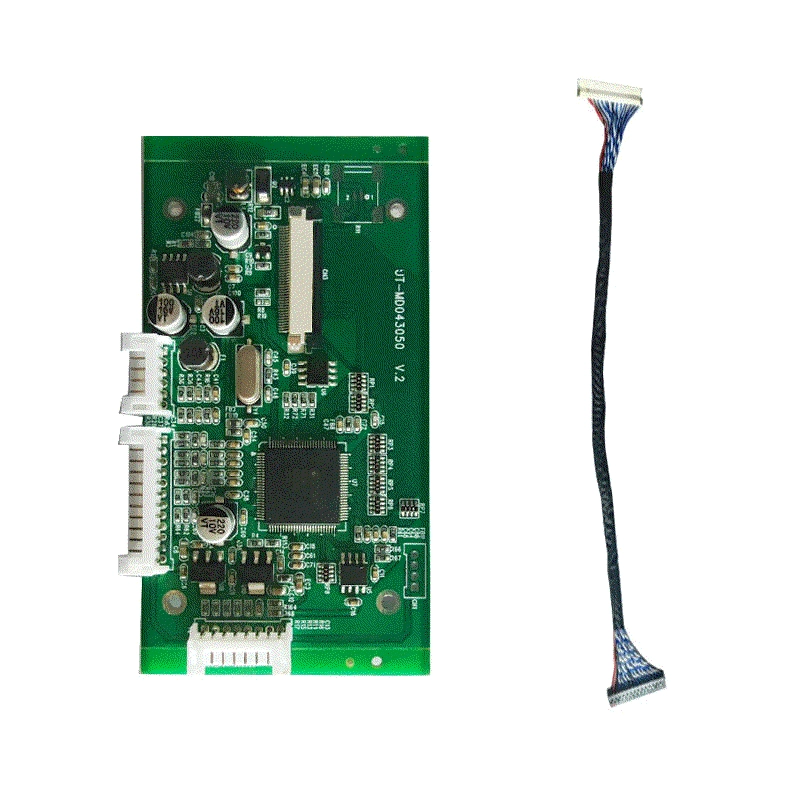

    Display Cable

    Display Cable

    We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.

    Customized glass and touch screen

    In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.

    Customized glass and touch screen

    Contact us to get the best customized solution.



    We provide comprehensive customization services: cable adjustments, capacitive/resistive touchscreen upgrades with custom glass, interface integration (HDMI, USB, etc.), connector modifications, PCB tweaks, cover glass additions, versatile mounting options, and custom backlights (voltage, brightness, color).

    Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.

    Visual access control displays deliver high brightness, HD quality, and shape customization.
    Submit your project requirements via our form for a personalized solution within 48 hours.

    Q1: What is the model of this TFT driver board?

    A1: The model number is UT – MD043050V.2, supporting RGB, VGA, AV (CVBS) signal inputs.

    Q2: What power supply does this driver board use?

    A2: It requires a DC +12V power input.

    Q3: Which display sizes and resolutions is this board compatible with?

    A3: It supports 4.3-inch and 5-inch LCD panels with resolutions of 480272 and 800480, including models like AT043TN24 V.1, AT043TN25 V.2, and AT050TN43 V.1.

    Q4: What signal interfaces does this driver board support?

    A4: It supports HDMI (v1.2), VGA, and CVBS video signal inputs.

    Q5: What are the key features of this driver board?

    A5: It offers multi-function OSD operation, optional remote control support, and auto power-off when no signal is detected.

    Additional information

    Maximum supported resolution

    800*480
    Model Source

    VGA AV(cvbs)
    Output Interface

    RGB
