Description

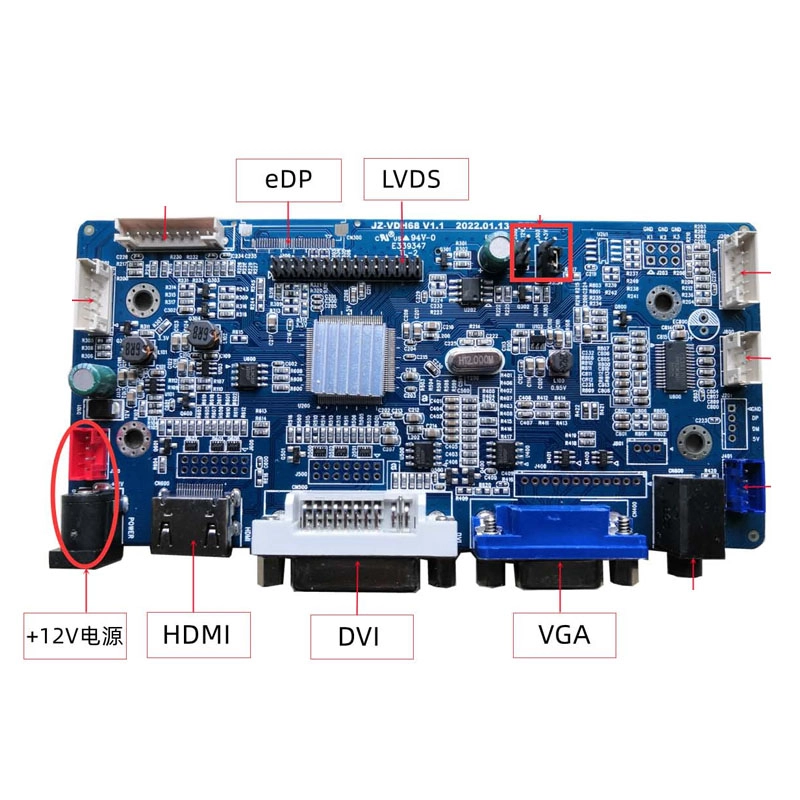

JZ-VH68U V1.0 TFT Driver Board
Here are the key points about this JZ-VH68U V1.0 TFT driver board :
- Product Specs: JZ-VH68U V1.0 TFT driver board , -20~60℃ operating temp, optional light-sensing control, max 1920×1200 resolution, up to 85Hz refresh rate, 2×10W amplifier, IR remote & serial port control
- Applications: Industrial and embedded display devices
- Manufacturer Support: Stable board solution with customizable functions
| Main Features | |||||
| Display Output | Maximum Resolution | Max. 1920×1200 | |||
| Output Interface | Single/Dual LVDS | ||||
| Supported Signals | Analog RGB | Horizontal Freq: 30-120KHz Vertical Freq: 50-75Hz 0.7Vp-p@75ohm Separate/Composite/SOG sync support | |||
| Digital DVI/HDMI | Horizontal Freq: 30-120KHz Vertical Freq: 50-75Hz 0.7Vp-p@75ohm Separate/Composite/SOG sync support | ||||
| Buttons | Power, Menu, Exit, Plus, Minus | ||||
| Menu Type | Graphical OSD | ||||
| Language Support | Chinese, English, and 8 other languages | ||||
| Function Operations | Picture | Mode/Brightness/Contrast/Saturation/Sharpness/Hue | |||
| Function | Language/Reset/Color Temp. | ||||
| PC | Clock/Phase/H position/V position/Auto configure | ||||
| Power supply | Stand-by | <0.5W 12Vstb/200mA | |||
| Input | 12V/dc | ||||
| Interface Definition | |||||
| LVDS output | |||||
| Pin No. | Function | Pin No. | Function | Pin No. | Function |
| 1 | VCC | 11 | RXO2- | 21 | RXE1- |
| 2 | VCC | 12 | RXO2+ | 22 | RXE1+ |
| 3 | VCC | 13 | GND | 23 | RXE2- |
| 4 | GND | 14 | GND | 24 | RXE2+ |
| 5 | GND | 15 | RXOC- | 25 | GND |
| 6 | GND | 16 | RXOC+ | 26 | GND |
| 7 | RXO0- | 17 | RXO3- | 27 | RXEC- |
| 8 | RXO0+ | 18 | RXO3+ | 28 | RXEC+ |
| 9 | RXO1- | 19 | RXE0- | 29 | RXE3- |
| 10 | RXO1+ | 20 | RXE0+ | 30 | RXE3+ |
| Backlight Board Port | |||||
| Pin No. | Function | Pin No. | Function | Pin No. | Function |
| 1 | 12V | 3 | ON/OFF | 5 | GND |
| 2 | 12V | 4 | ADJ | 6 | GND |
| 3.3v/5v Panel Voltage Selection Port | |||||
| Pin No. | Function | Pin No. | Function | ||
| 1 | 5V | 3 | 3.3V | ||
| 2 | VPANEL_IN | ||||
| 12v Panel Voltage Selection Port | |||||
| Pin No. | Function | Pin No. | Function | ||
| 1 | 12V | 2 | VPANEL_IN | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
