Description
DV366FBM-N10 Introduction

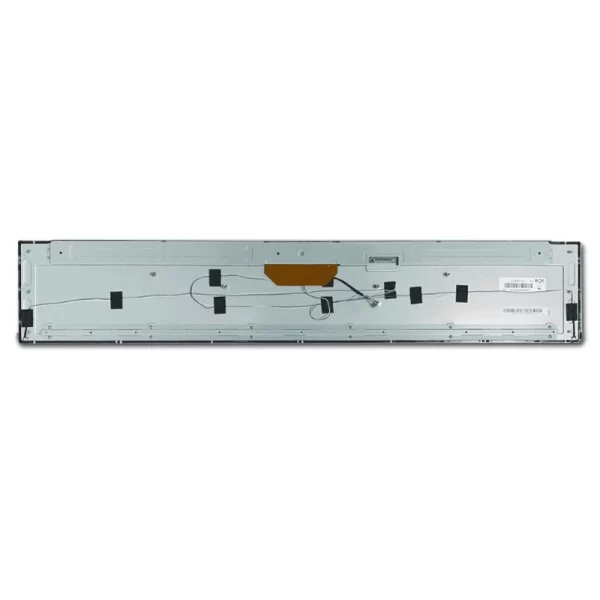

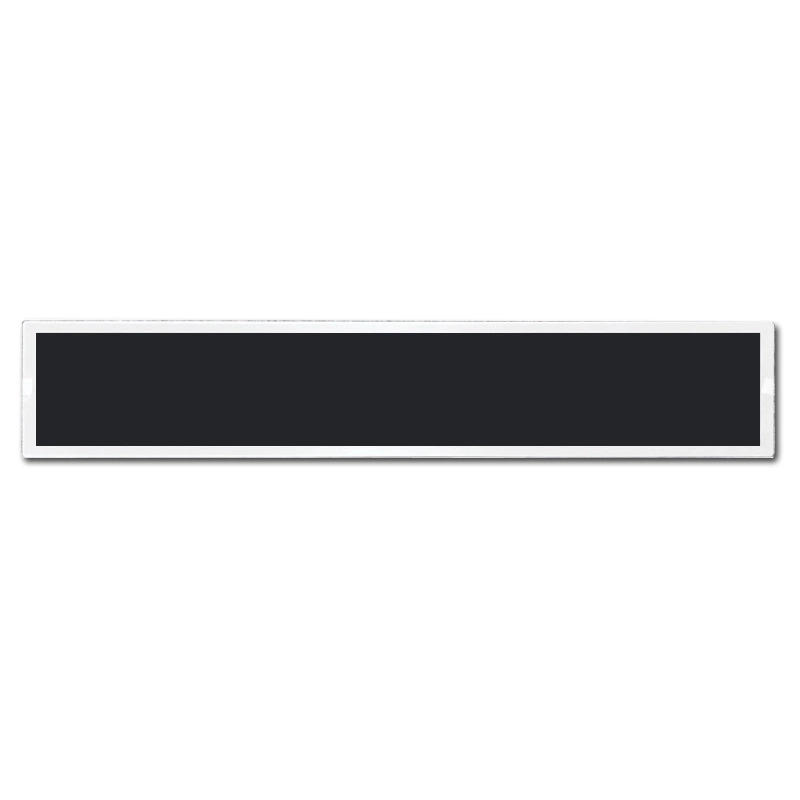

BOE DV366FBM-N10 LCD Screen is a BOE 36.6-inch ultra-wide LCD strip panel.
It has a resolution of 1920*290 and an aspect ratio greater than 3:1.
It features 700-nit brightness, enabling clear display outdoors.
This BOE ultra-wide LCD panel is engineered for reliability.
It delivers stable performance with IPS full-view technology to ensure consistent visuals from any angle.
The equipped with LVDS for secure signal transmission.
It is currently mass-produced by the original manufacturer, ensuring long-term stability.
BOE DV366FBM-N10 LCD Screen Applications
This BOE DV366FBM-N10 LCD Screen ideally suits transportation applications such as train interior information displays, subway station route indicators, and bus passenger notification systems. It also serves display devices for digital signage. Its ultra-wide format and rugged design make it a trusted choice for mission-critical transit environments requiring 24/7 operation.
DV366FBM-N10 36.6″ TFT LCD Display Specifications
| DV366FBM-N10 36.6″ TFT LCD Display Specifications | |||
| Model Number | DV366FBM-N10 | Operating Temperature | 0℃ to +50℃ |
| Display Size | 36.6 inch (929.6 mm diagonal) | Storage Temperature | -20℃ to +60℃ |
| Native Resolution | 1920 × 290 pixels | LED Backlight Lifetime | 50,000 hours |
| Module Dimensions | 960(W) × 174.35(H) × 16.9(D) mm | Touchscreen | Not supported |
| Active Area | 919.3 × 138.85 mm | Contrast Ratio | 1200:1 |
| Brightness | 700 cd/m² | Power Supply | 3.3V DC |
| Signal Interface | LVDS (40-pin connector) | Display Type | Color TFT LCD |
| Viewing Direction | All View | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
