Capacitive touch screens are pivotal for manufacturers and suppliers in industrial, medical, automotive, and smart appliance sectors, where precision and durability drive operational success. These screens enable intuitive human-machine interaction, leveraging electrostatic fields for seamless control in demanding environments. Miqidisplay, a leader in wholesale display solutions, offers projected capacitive (PCAP) screens integrated with TFT and OLED, certified under ISO-9001, ISO-14001, and TS-16949 for robust supply chain integration. This guide explores capacitive touch technology to empower procurement teams with actionable insights for high-stakes applications.
What is a Touch Screen?
A touch screen is an interactive overlay that enables direct system control via conductive or mechanical inputs, replacing traditional peripherals. In professional settings, it transforms displays into dynamic interfaces, processing gestures for real-time data interaction in critical operations.
Touch technologies vary, each tailored to specific input methods. Some prioritize conductive sensitivity, others support diverse inputs for versatile use cases.
Capacitive
Capacitive screens use a charged indium tin oxide (ITO) layer on glass, detecting disruptions from conductive objects like gloved fingers. Sensors at panel edges relay touch coordinates to a microcontroller, offering 90%+ light transmission and resistance to contaminants. Miqidisplay’s 10-point PCAP panels with OCA lamination achieve 20% better signal-to-noise ratios, ensuring reliability in 95% humidity.
Infrared
Infrared screens use LED-phototransistor grids to detect interruptions, supporting non-conductive inputs but losing 15% accuracy in bright conditions, limiting use in high-ambient settings.
Resistive
Resistive screens rely on pressure to connect dual ITO layers, registering inputs with 75% clarity. They support styluses but wear after 1-2M touches, less suited for high-cycle environments.
Surface Acoustic Wave
SAW technology uses ultrasonic waves across glass, attenuated by touch. With 92% clarity, it falters in moist or dusty conditions, absorbing 30% wave energy, requiring frequent maintenance.

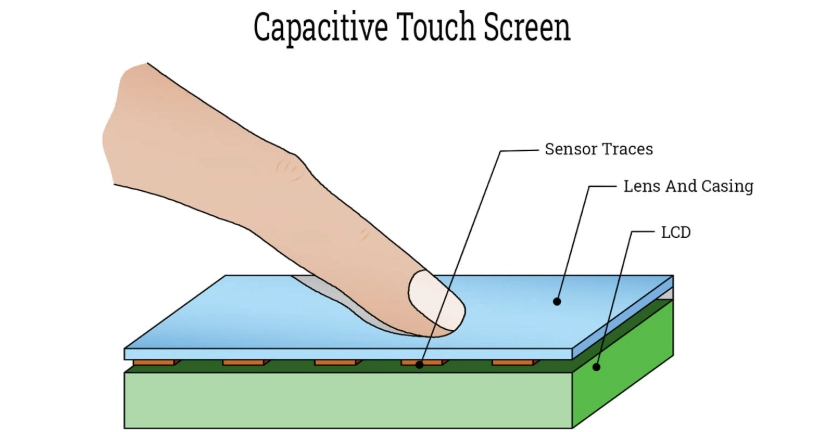

What Is a Capacitive Touch Screen?
Capacitive touch screens detect inputs via electrostatic field changes, leveraging human conductivity (~10-100pF) for zero-pressure interaction. Supporting gestures like pinch-to-zoom with <10ms latency, they integrate with LCD/OLED displays for 1000-nit brightness in high-ambient operations.
Built with ITO grids on 9H glass substrates, these screens use 50-100μm pitch electrodes for 4096×4096 resolution. Touch induces 5-20% capacitance shifts, processed by 24-bit ADCs for <1mm accuracy. Features like IP67 sealing and IK10 impact resistance ensure durability, with Miqidisplay’s GSL3670-based panels supporting -30°C to 85°C for thermal stability. OEMs should evaluate multi-touch capability, glove compatibility, and EMI shielding (<30dB) for seamless integration.
How do capacitive touch screens work?
Capacitive screens detect touch via RC time constant shifts, where finger-induced capacitance (~1-5pF) extends charge cycles by 10-50μs. A 32-bit ARM MCU scans 1000+ nodes/sec across laser-etched ITO grids (<5Ω/sq), mapping deltas with bilinear interpolation for <1mm precision. Kalman filtering ensures 50dB SNR noise rejection.
Dielectric glass (0.7mm) preserves 95% field penetration, enabling gloved operation. Adaptive thresholds counter temperature drift (±0.1pF/°C), while MIPI DSI interfaces in Miqidisplay’s modules sync video at 60fps. PCAP variants use drive-sense multiplexing, cutting idle power to <5mW, ideal for low-energy medical wearables.
What are the different types of capacitive touch screens?
Capacitive designs vary by electrode configuration, balancing cost and performance.
Surface Capacitance
Surface capacitance uses uniform ITO coatings energized at 50kHz, detecting single-touch via charge diversion with ~2mm resolution. Common in basic kiosks, it offers 85% transmittance but lacks multi-touch support.
Projected Capacitive Touch (PCT)
PCT employs micro-electrode grids (100-300μm) for projective sensing, supporting 10+ touches with <0.5mm accuracy. Scalable to 32-inch panels, it achieves 92% clarity, dominating 95% of touch markets.
PCT Mutual Capacitance
Mutual capacitance forms capacitors at grid intersections, detecting 20-40% coupling drops for 10-point gestures. Orthogonal scanning ensures >60dB crosstalk isolation, ideal for complex HMIs.
PCT Self Capacitance
Self capacitance energizes rows/columns against ground, yielding ~10pF signals for robust single-touch but risking ghosting in multi-touch without tracking. It cuts IC costs by 15-20%.
What is the concept of finger capacitance?
Finger capacitance reflects ~5-15pF shifts from human tissue’s dielectric (εr ~50-70) and conductivity (0.1-1 S/m), perturbing fields without conduction. Insulative overlays (50μm solder masks) prevent discharge, with C_total = C_base + C_finger paralleling via bodily grounding (~100pF). Proximity boosts ε_eff by 20-30% within 5mm, enabling hover detection at 15mm. Conductive effects linearize gradients for <1mm localization.
In PCB designs, 0.2mm traces on FR4 (εr=4.5) form ~8pF capacitors, with fingers amplifying as parallel plates. Miqidisplay’s sensors tune for glove compatibility, detecting latex-thickened fields at 0.5mm, with lookup tables ensuring >95% accuracy.
What are the advantages and disadvantages of capacitive touch screens?
Advantages
Durability
PCAP screens withstand 50M+ touches, using 7-9H glass resistant to abrasives. Anti-glare coatings (AF<5°) repel dust, maintaining >90% function after 1000h UV exposure.
Reliability
Rear-matrix isolation ensures scratches (<50μm) alter <1% fields, with EMI shielding attenuating 60GHz by 40dB, ensuring uptime in noisy environments.
Touch Accuracy
12-bit sampling delivers sub-1mm resolution, rejecting transients for >99% gesture fidelity, outperforming opticals in cluttered settings.
Image Clarity
Uncoated glass achieves 93% transmittance, minimizing parallax (<0.2mm) with full lamination, ideal for UHD OLEDs (contrast >1M:1).
Additional benefits include zero-force input (<0.1N), single calibration, and 20% energy savings (3.3V drives). Inductive subtypes excel in mid-sized grids, surface in larger single-point arrays.
Disadvantages
Capacitive screens struggle with thick gloves (ΔC<1pF), requiring specialized variants. Moisture induces ghosting (~5pF/droplet), mitigated by hydrophobic ITO at 10% cost increase. Pricing exceeds resistive by 20-30%, though volumes drop to $5-15/unit. Stylus compatibility demands active tips, and extreme cold (-40°C) induces 15% drift, needing thermistors.
Frequently Asked Questions
What distinguishes surface capacitance from projected capacitive touch screens?
Surface capacitance supports single-touch with lower resolution for basic overlays; projected capacitance uses grids for multi-touch precision in complex inputs.
How does finger capacitance influence touch detection reliability?
It adds 5-15pF, enabling <1ms responses, but requires compensation for humidity to maintain >98% uptime.
What are key advantages of capacitive over resistive touch screens?
Capacitive offers 90%+ clarity, multi-touch, and no mechanical wear, but at higher cost and conductivity reliance.
Can capacitive touch screens operate in high-moisture environments?
Yes, IP67 sealing and anti-interference coatings reduce false triggers by 80% via advanced processing.
How do mutual and self-capacitance differ in multi-touch capability?
Mutual supports 10+ point gestures via intersection coupling; self excels in single-touch but risks ghosting without tracking.
