G101ICE-LH1 General Description
Here are the key points about this Innolux G101ICE-LH1 10.1 inch IPS LCD Panel :
Model and Panel Type：The Innolux G101ICE-LH1 is a robust 10.1-inch IPS LCD panel designed for mission-critical environments.
Display Performance：Boasting 500cd/m² brightness and 1280×800 resolution, it delivers sharp visuals under direct sunlight.
Viewing Angles and Contrast：With an expansive 88/88/88/88 viewing angle and 800:1 contrast ratio, it ensures consistent color accuracy for multi-user scenarios.
Temperature Adaptability：Built to withstand extreme conditions, it operates flawlessly from -30°C to 80°C and survives storage temperatures down to -40°C.
Interface and Power Supply：The LVDS interface provides EMI-resistant signal transmission, while the 5.0V power supply enhances compatibility with industrial systems.
Structure and Lifespan：Its ultra-slim 7mm profile and 50,000-hour LED lifespan make it ideal for 24/7 operations in space-constrained installations.
Innolux G101ICE-LH1 10.1 inch IPS LCD Panel Application & Performance
Ideal for heavy-duty industrial automation, EV dashboards, and outdoor energy systems. Operates in Arctic/desert extremes. 500cd/m² brightness suits construction machinery and airport displays. IPS aids medical imaging; LVDS integrates with robotics. 88° viewing for collaborative workstations. 50k-hour lifespan reduces maintenance in mining/marine setups. 7mm slim design fits portable IoT devices.

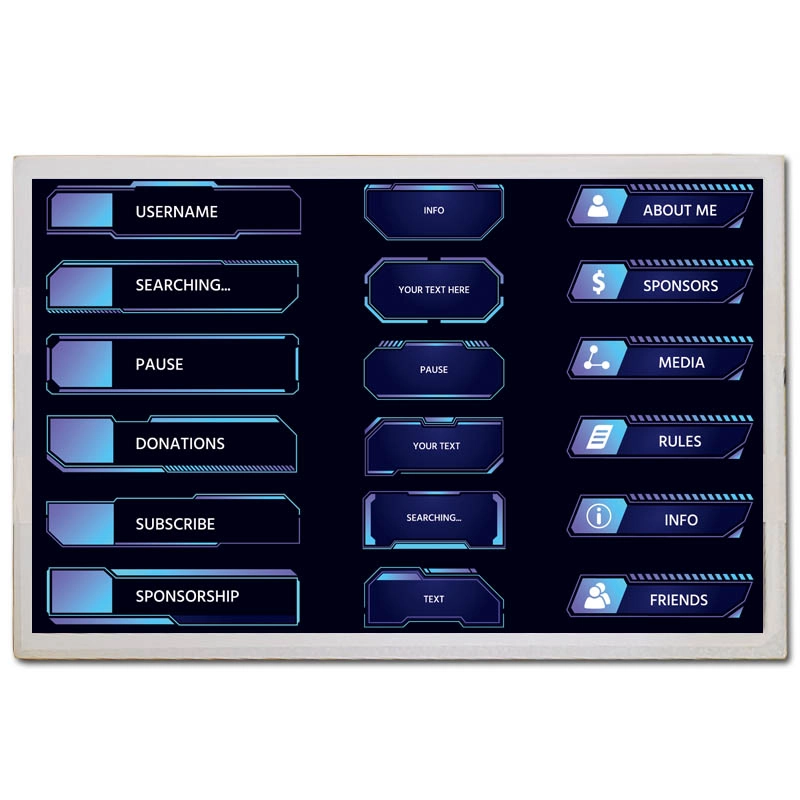

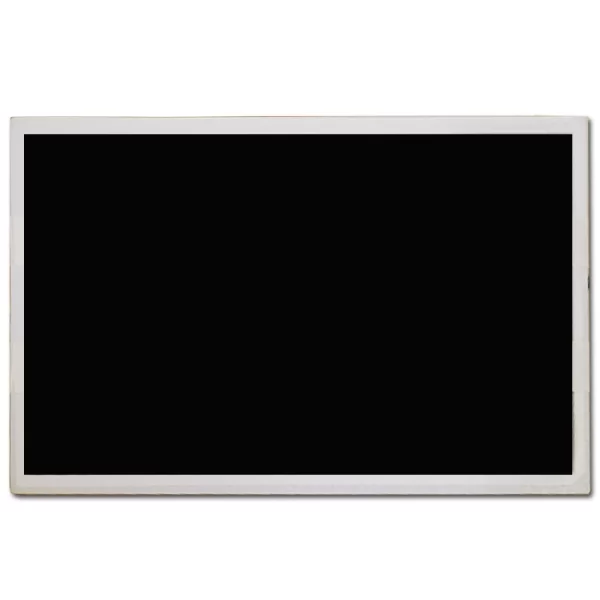

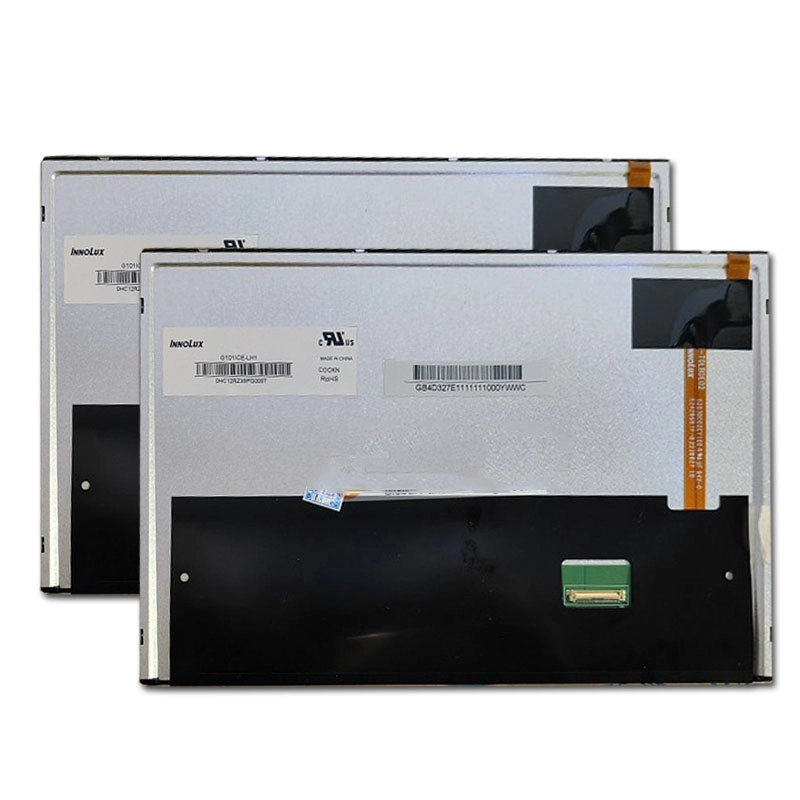

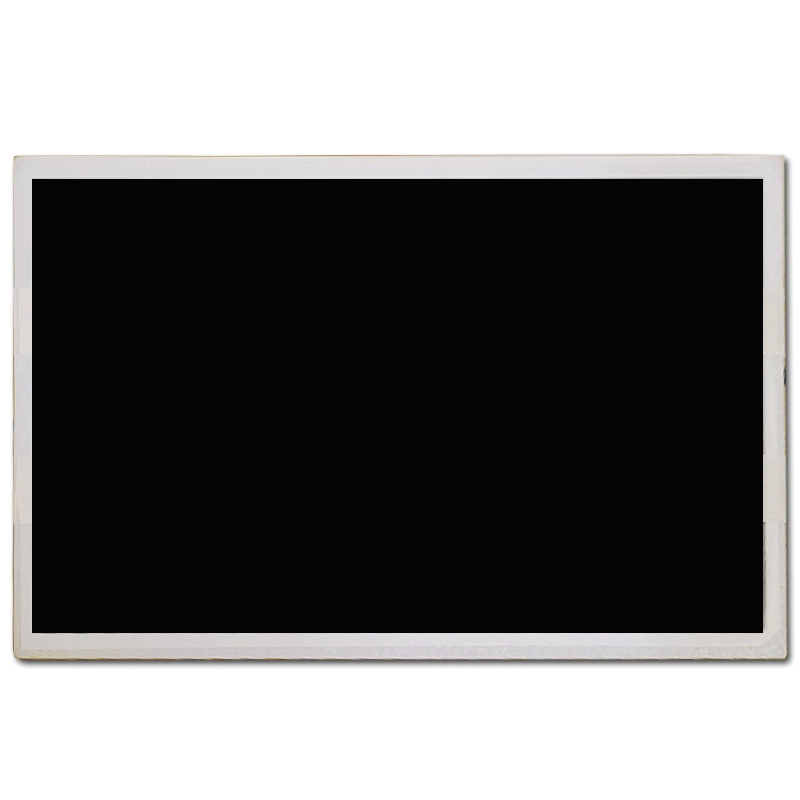

G101ICE-LH1 10.1 inch IPS LCD Panel
| G101ICE-LH1 10.1″ IPS TFT LCD Panel | |||
| Display Size | 10.1 inch (256.5 mm diagonal) | Contrast Ratio | 800:1 (typical) |
| Native Resolution | 1280 × 800 (WXGA) | Operating Temperature | -30℃ to +80℃ |
| Brightness | 500 cd/m² (typical) | Storage Temperature | -40℃ to +85℃ |
| Module Dimensions | 230.7(W) × 152.55(H) × 7.0(D) mm | LED Backlight Lifetime | 50,000 hours (minimum) |
| Active Area | 216.96 × 135.6 mm | Touchscreen | Not supported |
| Panel Technology | In-Plane Switching (IPS) | Power Supply | 3.3V DC |
| Viewing Angles | 88° (All directions) | Display Type | Color TFT LCD |
| Signal Interface | LVDS (30-pin connector) | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
