In the ever-evolving landscape of display technology, achieving a wide viewing angle in TFT LCDs (Thin-Film Transistor Liquid Crystal Displays) is essential for delivering consistent image quality across various applications. From industrial equipment to consumer electronics, the demand for enhanced visibility and color accuracy at off-angles has driven the development of several alignment technologies. This article explores key innovations that have shaped the capabilities of modern TFT LCDs.
TFT LCD Structure
The TFT LCD, or thin film transistor liquid-crystal display, is a popular form of display technology often used in computer monitors and other common device screens. This display module, or more specifically LCD module, is composed of three key layers. The deepest layer, closest to the back of the device is composed of, listed from farthest to closest to the surface, the first polarizer, a glass substrate, pixel electrodes, and TFTs. The surface-most layer is similar to this layer, as it also has a glass substrate, a polarizer, and (in some matrixes) electrodes; however, the order of these components are flipped compared to the other layer (the polarizer is the closest to the surface), and there is an RGB color filter in this layer.
Between these two layers, a layer of liquid crystal molecules exists and carries charges and energy towards the surface of the TFT LCD. As an active-matrix LCD device, the TFT LCD’s individual pixels consist of red, green, and blue sub-pixels, each with their own TFT and electrodes beneath them. These sub-pixels are controlled individually and actively, hence the name active-matrix; this then allows for smoother, fast response time.
TN (Twisted Nematic) Type TFT LCD
Though there are a variety of ways to align the crystal molecules, using a twisted nematic (TN) to do so is one of the oldest, most common, and cheapest options for LCD technology. When no electric field affects the structure of the crystals, there is a 90 degree twist in the alignment. If an electric field is applied, the twist in the crystal structure of the molecules can be unwound, straightening them out.
Though this is one of the cheapest options for display technology, it has its own problems. The TN TFT LCD does not have top response times compared to other types, and it does not provide for as wide a viewing angle as other TFT LCDs using different alignment methods.
O-Film TFT LCD
Because of the abundance of TN devices, something called O-film has also been introduced to pair with TN screens so that users do not have to buy whole new devices. The O-film specifically is unique because rather than changing the liquid crystal alignment technology and for a relatively low cost, it can swap the surface polarizer of a TN device with a special film to widen the viewing angle.
O-Film enhances existing TN displays without fundamentally altering their architecture. While it offers only moderate improvements compared to MVA or IPS technologies, its affordability makes it suitable for cost-sensitive applications where slight enhancement suffices.
MVA (Multi-domain Vertical Alignment) TFT LCD
Simply put, this method divides the cell beneath each pixel into multiple domains. With the division, molecules in the same cell can be oriented differently This solves the problem of what is known as a mono-domain vertical alignment.
In recent developments of the MVA TFT LCD Contrast ratio has been improved to 1000:1. Similarly response time has reached times that are the fastest that human eyes can process
MVA displays offer excellent contrast ratios and faster response times than IPS panels. Their ability to maintain high image quality across broad angles makes them highly suitable for multimedia monitors and TV screens.

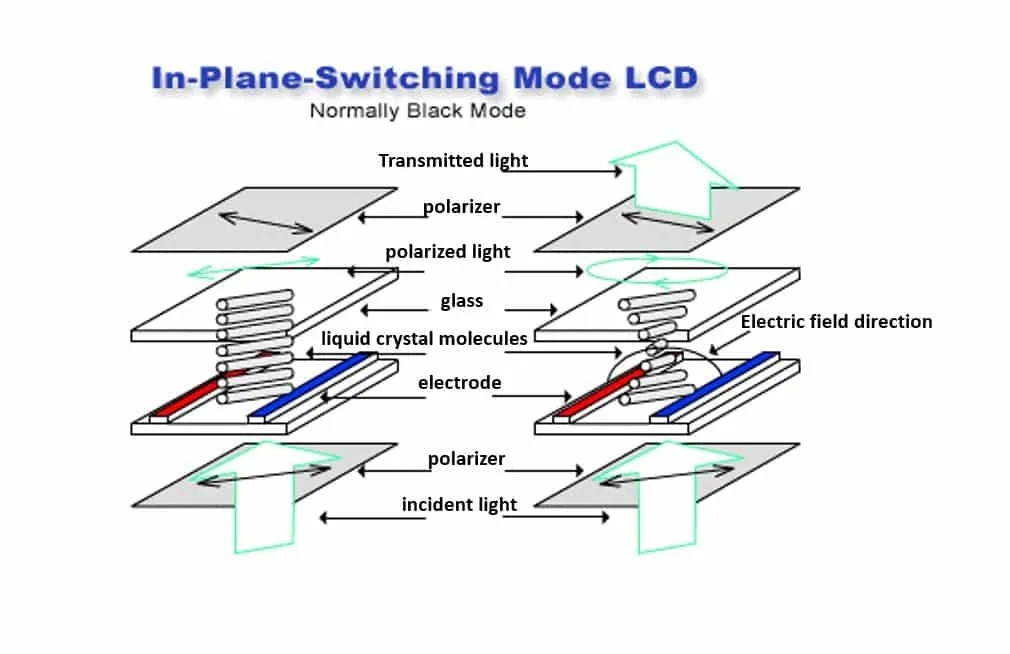

IPS (In Plane Switching) TFT LCD
Another solution to the gray-scale inversion issue caused by TN is the IPS LCD. Structurally the IPS places both electrodes on the back substrate. This then forces plane switching and align in a parallel manner
With this type of alignment viewing angles were preserved in much wider directions compared to TN
IPS displays are widely adopted due to their superior color reproduction and wide viewing angles. Though they consume more power due to lower transmittance requiring stronger backlights, their visual performance makes them ideal for smartphones and tablets.
TN vs O-Film vs MVA vs IPS TFT LCD
While TN TFT LCD has smallest cost O-films MVAs IPS TFT LCDs have greater costs due to their more intricate technologies that improve viewing angle
IPS has most potential for improved viewing angle MVA is close. What it does have is much faster response time
Each technology presents trade-offs:
- TN: Economical but limited viewing angles.
- O-Film: Cost-effective enhancement over TN.
- MVA: Balanced performance with fast response.
- IPS: Best viewing angles but higher power consumption.
Selection depends on application needs—cost efficiency vs. performance.
AFFS (Advanced Fringe Field Switching) TFT LCD
The AFFS is similar to IPS in concept; both align crystal molecules in parallel-to-substrate manner However AFFS has high transmittance.
AFFS takes IPS further by enhancing light efficiency through better transmittance. It reduces power consumption while maintaining visual quality—ideal for mobile devices where battery life matters.
FAQ
Q1: What type of tft lcd offers best color accuracy at all angles?
A: IPS panels provide superior color consistency across wide viewing angles.
Q2: Is O-film suitable for professional use?
A: While it improves TN displays modestly at low cost, it’s less ideal for color-critical tasks compared to MVA or IPS.
Q3: Which tft lcd type consumes least power?
A: Standard TN consumes less power than IPS or AFFS due to simpler structure but sacrifices image quality.
Q4: Can I upgrade my existing TN screen with better viewing angle?
A: Yes. Applying an O-film can enhance its view ability without replacing core hardware.
