Description

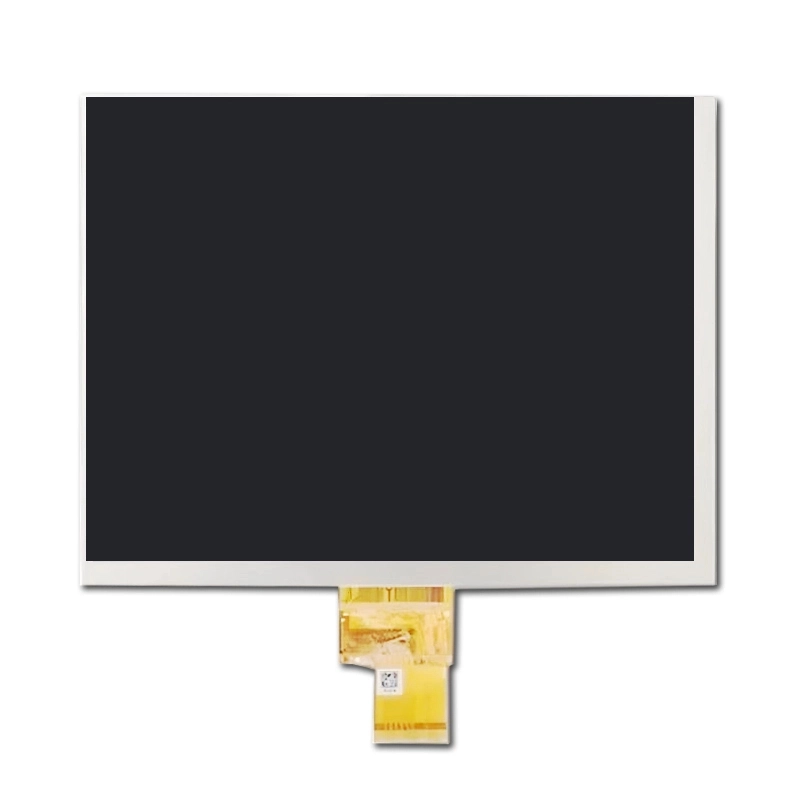

8 inch TFT Display Description
Here are the key points about this 8 inch IPS TFT LCD :

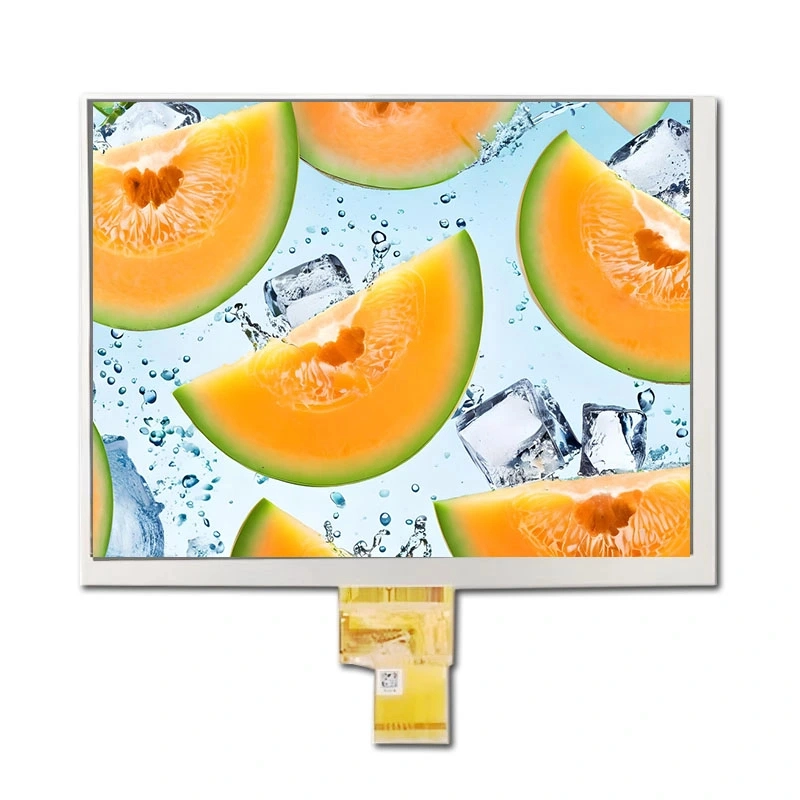

8 inch IPS TFT LCD Landscape with IPS Wide Viewing Angle
With crystal-clear visuals and versatile applications, this display is ideal for:
- Portable Devices: Handheld gaming consoles, media players, digital photo frames
- Smart Home Control Panels: Centralized management of lighting, thermostats, and security systems
- Food Service Equipment: Self-service kiosks, POS terminals, menu displays
- E-Readers & Educational Tablets: Optimized for textbooks, videos, and interactive learning materials
For solution selection in specific scenarios (such as brightness, resolution, interface requirements), please contact our customer service for personalized assistance.
8″ TFT-LCD Specifications
| 8″ XGA TFT-LCD Display Specifications | |||
| Model Number | ZDX080IA-01E | Operating Temperature | -10℃ to +60℃ |
| Display Size | 8.0″ (diagonal) | Storage Temperature | -20℃ to +70℃ |
| Resolution | 1024 × 768 (XGA) | Backlight Lifetime | 20,000 hours |
| Module Dimensions | 174.0 × 136.0 × 2.45 mm | Touchscreen | Not included |
| Active Area | 162.05 × 121.54 mm | Contrast Ratio | 800:1 |
| Brightness | 300 cd/m² (typical) | Power Supply | 3.3V DC ±5% |
| Interface | LVDS (1-channel) | Display Type | TFT Color LCD |
| Viewing Angle | 80°/80°/80°/80° (L/R/U/D) | Aspect Ratio | 4:3 |
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
