Description

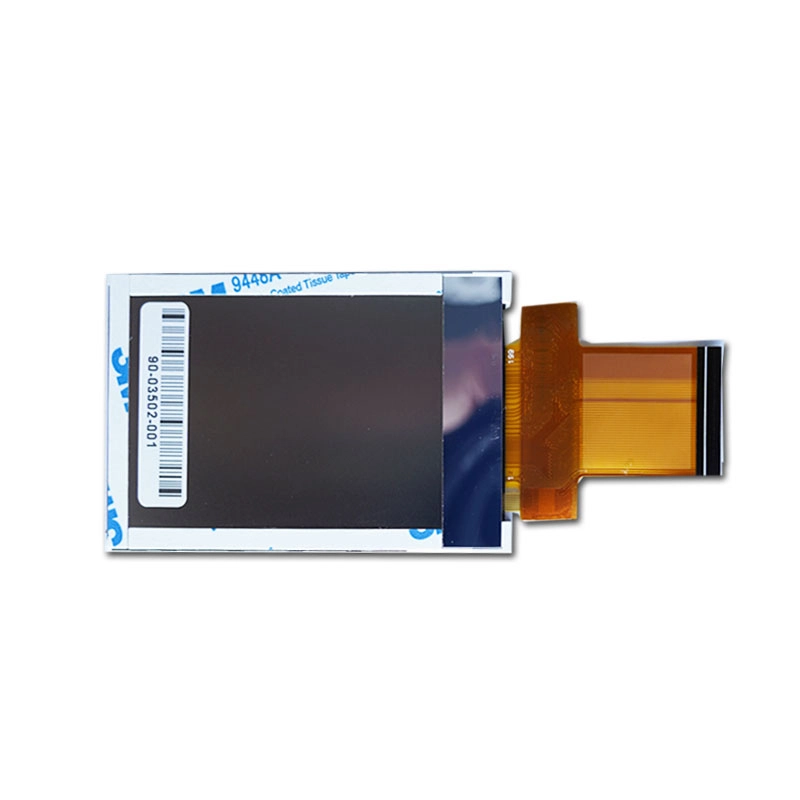

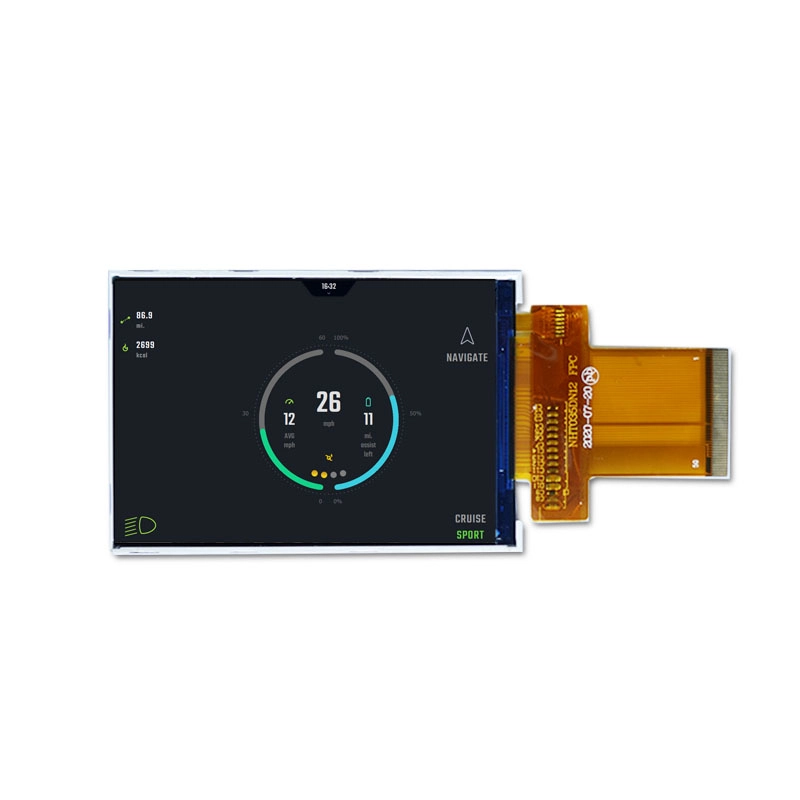

3.5″ Industrial LCD Display Pane
Here are the key points about this 3.5 inch MCU IPS TFT LCD :

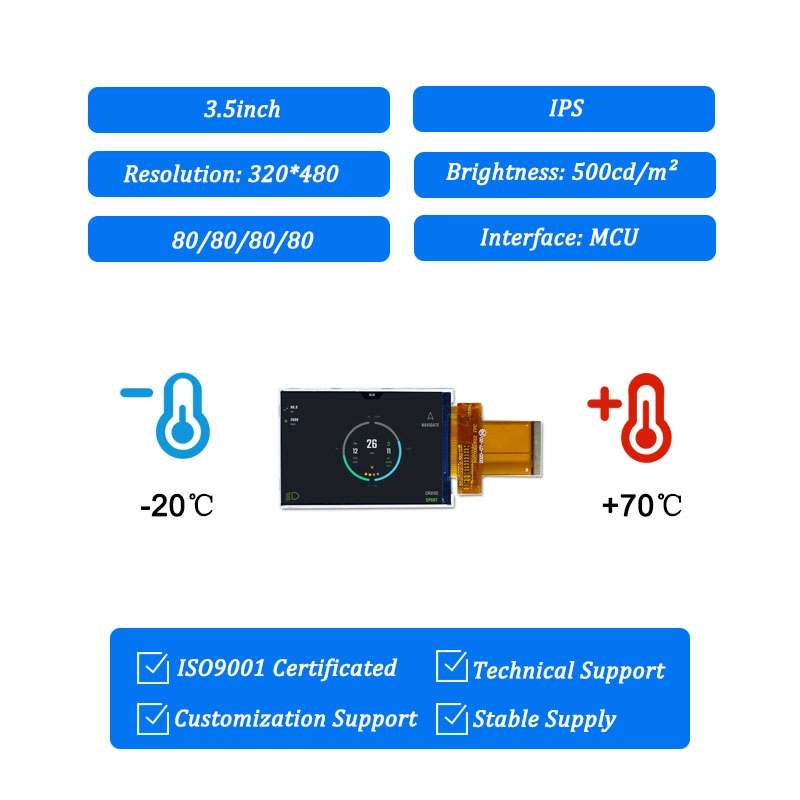

- The 3.5 inch MCU IPS TFT LCD offers clear and vibrant visuals with a resolution of 320×480 pixels, making it ideal for applications that require a compact and reliable display solution.
- It features a viewing angle of 80° in all directions, ensuring consistent image quality and color accuracy from multiple perspectives, suitable for various environments.
- With a brightness level of 350 cd/m², the display ensures good visibility in both indoor and outdoor settings.
- Additionally, its MCU interface allows for seamless integration with modern microcontrollers, facilitating efficient data transfer and communication.
3.5” LCD Display Application
The 3.5-inch TFT-LCD display module is well-suited for various applications, including consumer electronics such as handheld devices, GPS systems, and digital cameras, where clear visuals and user interaction are essential.
It is also ideal for embedded systems, including industrial control panels and home automation systems, that require reliable performance and real-time data visualization.
Additionally, this module is suitable for medical devices, providing essential information in a clear and accessible format for patient monitors and diagnostic equipment.
3.5″ TFT-LCD Specifications
| 3.5″ TFT-LCD Specifications | |||
| Model Number | 90-03502-001 | Operating Temperature | -20~70 |
| Size | 3.5 | Storage Temperature | -30~80 |
| Resolution | 320*480 | LED Lifetime | 20000 |

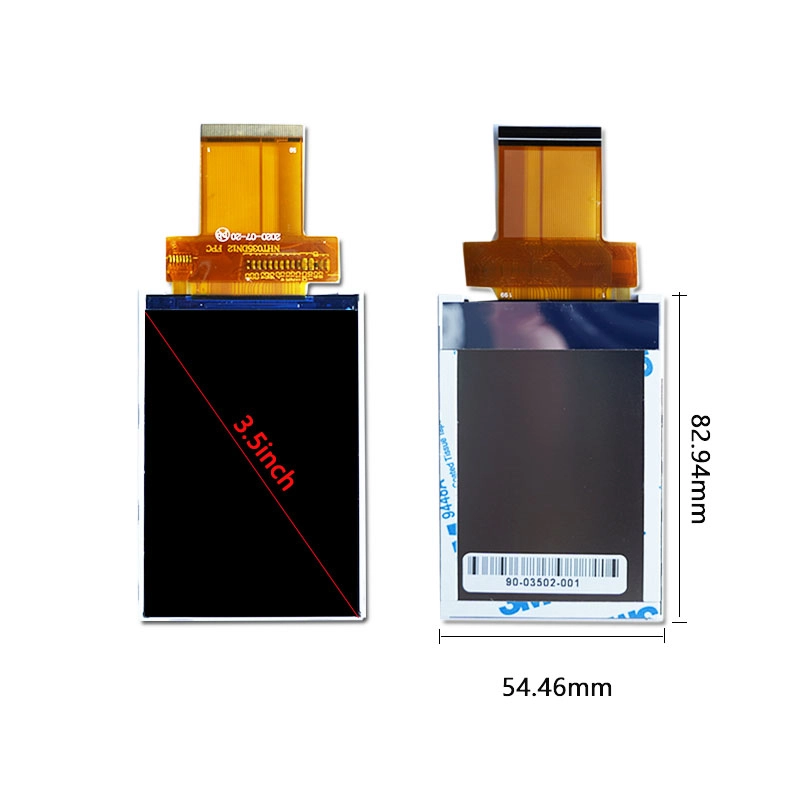

| Outline Dimension | 54.46*82.94*2.25 | Touchscreen Support | Without |
| Active Area | 48.96*73.44 | Contrast Ratio | 700:01:00 |
| Brightness(cd/m²) | 350 | Power Supply | 3.3V |
| Interface | MCU/RGB | Display Type | Color LCD |
| View Direction | ALL | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
