4.6″ Industrial LCD Displays Overview
Here are the key poin (インチ)ts about this 4.6 inch Industrial LCD :
- The 4.6 in (インチ)ch Industrial LCD Screen features a resolution of 800 x 320 pixels, providing sharp and vibrant images for effective content presentation.

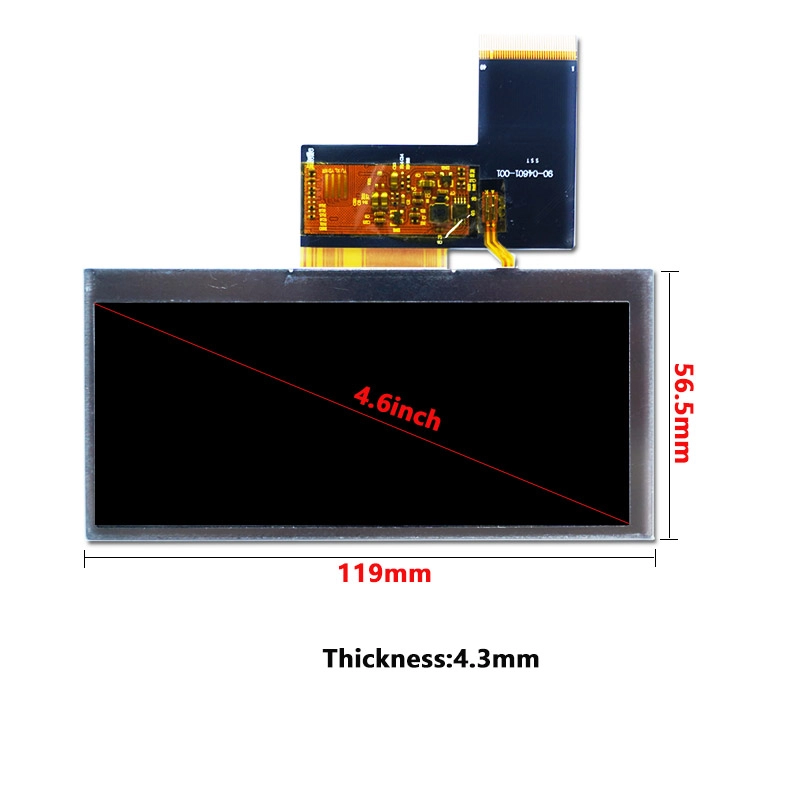

- Its active area measures 108 mm x 43.2 mm, maximizin (インチ)g usable screen space, while the outline dimensions of 119 mm x 56.54 mm x 5.6 mm ensure a sleek design for easy integration into various devices.
- With a viewin (インチ)g angle of 60° horizontal and 50° vertical (RLUD), it offers good visibility for flexible installation.
- The display has a brightness of 450 cd/m² and a contrast ratio of 500:1, deliverin (インチ)g clear visuals in diverse lighting conditions.
- It boasts an LED lifetime of 20,000 hours, operates within (インチ) a temperature range of -20°C to 70°C, and can be stored between -30°C to 80°C, making it versatile for various environments.
- The RGB in (インチ)terface facilitates seamless integration with a range of micro controllers and devices.
4.6 in (インチ)ch TFT-LCD Specifications
| 4.6 in (インチ)ch TFT LCD Specifications | |||
| モデル番号 | 90-04601-001 | Operatin (インチ)g Temperature | -20°C to +70°C |
| サイズ | 4.6 in (インチ)ch | 保存温度 | -30°C to +80°C |
| 決議 | 800 × 320 (Wide VGA) | LED寿命 | 20,000時間 |
| Outlin (インチ)e Dimension | 119.56 × 56.54 × 5.6 mm | タッチスクリーン対応 | Resistive Touch |
| 有効 Area | 108.0 × 43.2 mm | コントラスト比 | 500:1 |
| 輝度 | 450 cd/m² (typical) | 電源 | 3.3V DC |
| インターフェース | RGB | ディスプレイタイプ | 色TFT LCD |
| 方向性を見る | 6時 | ||
カスタマイズ可能なパーツ
ディスプレイケーブル
We can adjust the length, position, and pin (インチ)s of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
カスタマイズされたガラスとタッチスクリーン
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bondin (インチ)g method, thus providing the monitor with protection against moisture and breakage.
お問い合わせ 最適なカスタマイズされたソリューションを取得します。
Beyond these tailored services, our displays excel in (インチ) diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. 送信 your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
