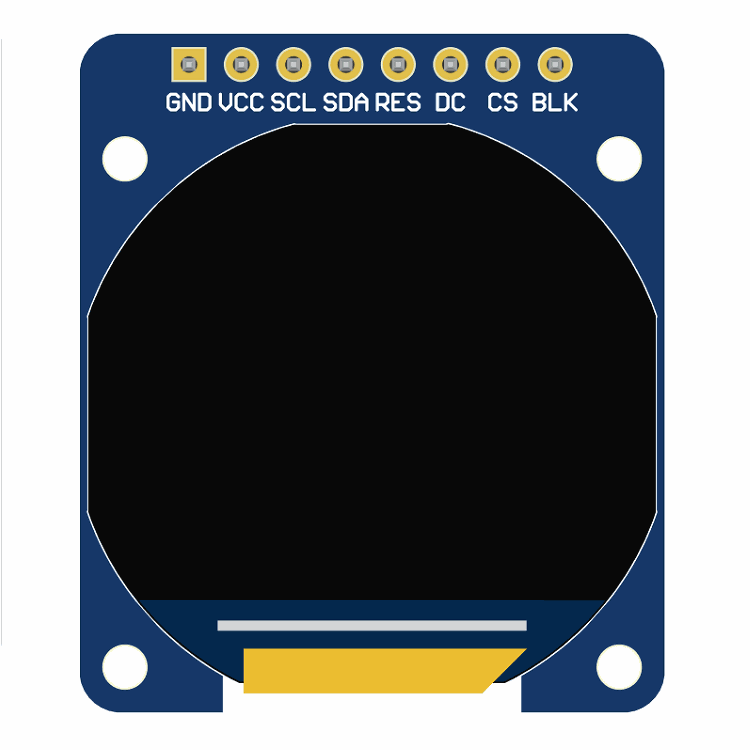

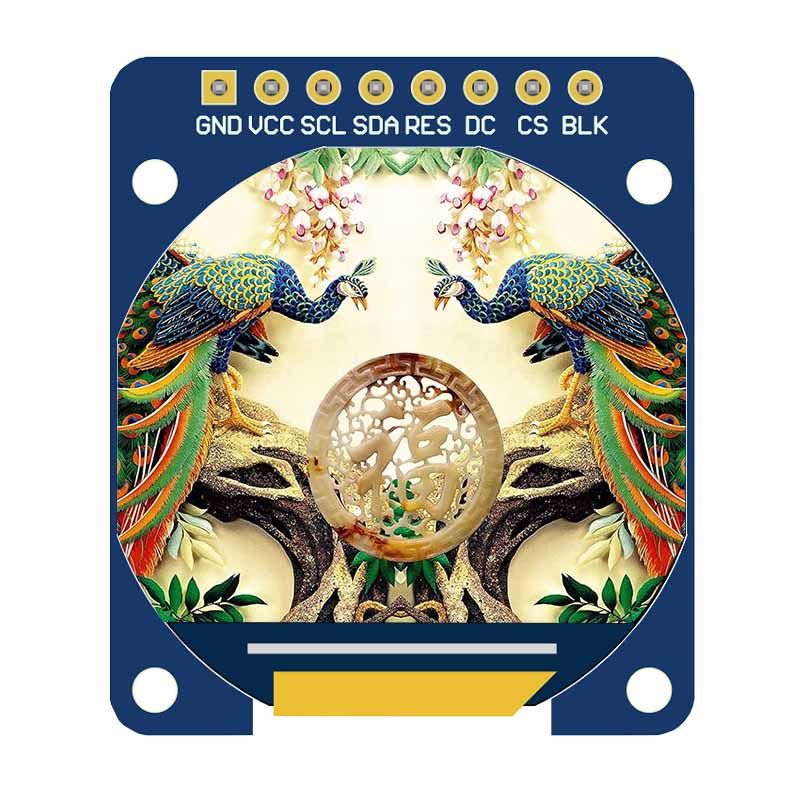

0.96″ Round MCU TFT Display | 240×198 IPS SPI Screen
Here are the key poin (インチ)ts about this 0.96″ Round MCU TFT Display ：
✅ 4-Wire SPI Interface: Min (インチ)imizes I/O usage while maintaining fast data transfer.
✅ Onboard Level Shifter: Effortlessly switch between 5V and 3.3V MCU without external components.
✅ IPS Technology: 178° wide viewin (インチ)g angle for consistent clarity in industrial, IoT, and wearable applications.
✅ Ultra-Low Power Design: Optimized for battery-powered devices.
✅ Rugged Construction: Stable performance under extreme temperatures (-20°C to +70°C).
Ideal for embedded systems, smart devices, and HMI in (インチ)terfaces, this module offers plug-and-play compatibility with Arduino, Raspberry Pi, and STM32 platforms. Simplify your design process with pre-tested drivers and a lightweight footprint

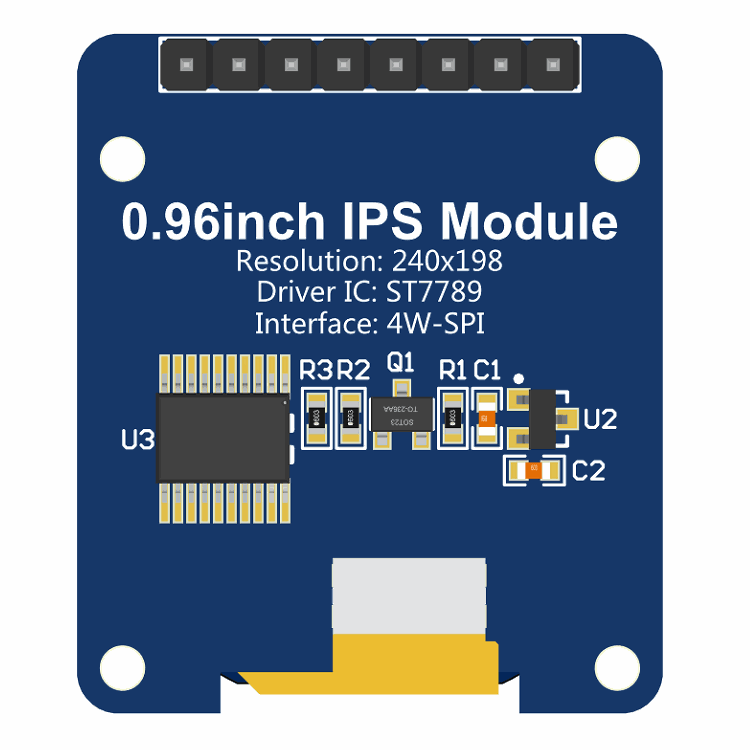

0.96″ MCU TFT Screen Hardware 説明：

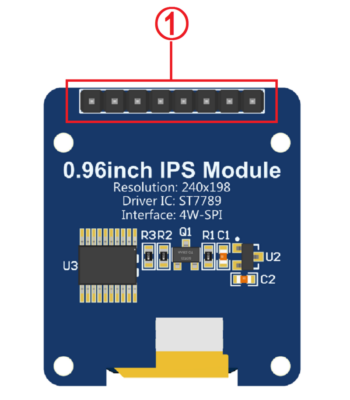

①8P pin (インチ) arrangement：2.54mm spacing row pins, module signal input pins
0.96 in (インチ)ch IPS ST7789 Module Key Parameters
| 0.96 in (インチ)ch IPS ST7789 Module Key Parameters | |||
| サイズ | 0.96 (in (インチ)ch) | Brightness (TYP) | 300 cd/m² |
| SKU | DS20199 | Operation Temperature | -10~60 ℃ |
| 決議 | 240×RGB×198 (pixels) | 保存温度 | -20~70 ℃ |
| 有効 Area (AA area) | 24.408(W) × 20.137(H) (mm) | Workin (インチ)g ボルタge | 5.0 V / 3.3V |
| TFT Outlin (インチ)e Size | 27.4±0.2(W) × 27.0±0.2(H) × 1.31±0.15(D) (mm) (Excludin (インチ)g adhesive backing) | Backlight Current | 40 mA |
| Module Outlin (インチ)e Size | 28.4(W) × 33.0(H) × 11.17(D) (mm) (in (インチ)cluding Pin Header) | Power | 0.09 W |
| Display Interface | 4-Lin (インチ)e SPI | Backlight Type | White LED × 2 |
| View Angle | ALL 0’CLOCK | ||
