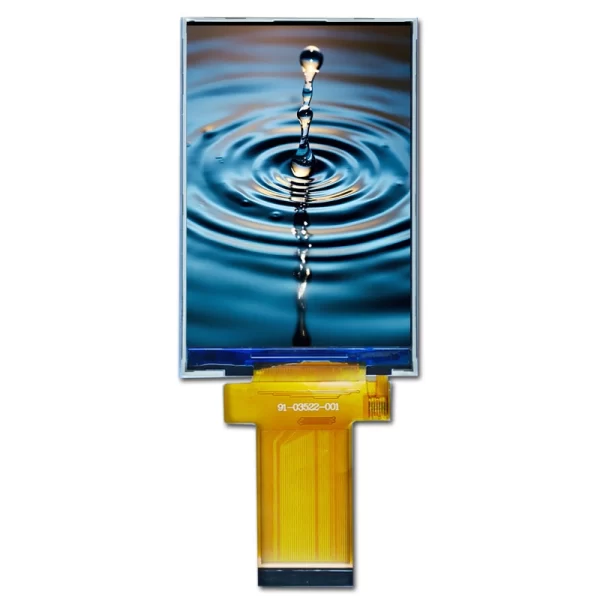

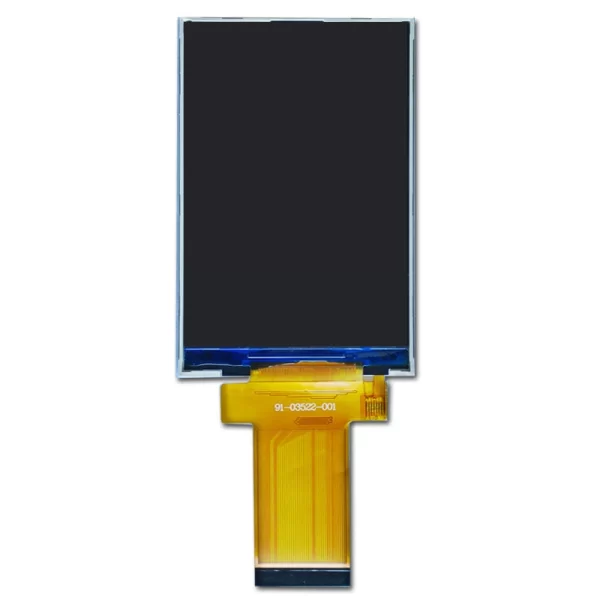

3.5″ TFT Module Overview
Here are the key points about this 3.5 inch Industrial Colour LCD :
- The 3.5 inch Industrial Colour LCD features a resolution of 320 x 480 pixels, providing sharp images within an active area of 48.96 mm x 73.44 mm.

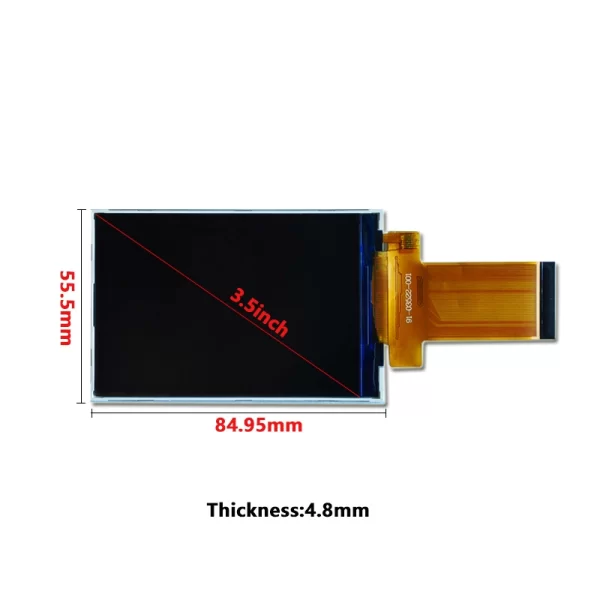

- Its compact outline dimensions of 55.5 mm x 84.95 mm x 4.8 mm ensure easy integration, while an 80° viewing angle in all directions allows for excellent visibility.
- With a brightness of 350 cd/m² and a contrast ratio of 1000:1, it delivers vibrant visuals.
- The LED has a lifespan of 20,000 hours, and the display operates effectively in temperatures ranging from -20°C to 70°C, with storage capabilities from -30°C to 80°C, making it suitable for diverse environments.
3.5″ TFT LCD with High Contrast Ratio
The contrast ratio of a display is crucial for determining the difference in brightness between the brightest white and the darkest black it can produce.
With a contrast ratio of 1000:1, this 3.5-inch TFT LCD display offers vibrant colors and sharp images, enhancing overall image quality and making subtle shades more distinct.
It also improves the viewing experience by performing well in various lighting conditions, reducing glare and ensuring clarity, which is particularly beneficial for applications in bright environments.
3.5″ TFT-LCD Product Specifications
| 3.5″ TFT-LCD Product Specifications | |||

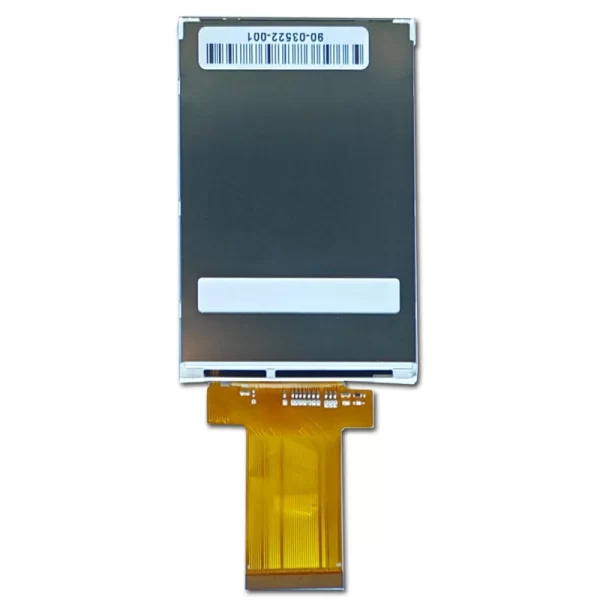

| モデル番号 | 90-03522-001 | 動作温度 | -20℃ to +70℃ |
| Display Size | 3.5″ (diagonal) | 保存温度 | -30℃ to +80℃ |
| 決議 | 320 × 480 (QVGA) | LED寿命 | 20,000時間 |
| Module Dimensions | 55.5 × 84.96 × 4.8 mm | Touchscreen | Not included |
| 活動エリア | 48.96 × 73.44 mm | コントラスト比 | 1000:1 |
| 輝度 | 350 cd/m² | 電源 | 3.3V DC |
| インターフェース | MCU Parallel | ディスプレイタイプ | カラーTFT-LCD |
| 表示角度 | All directions | ||
カスタマイズ可能なパーツ
ディスプレイケーブル
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
カスタマイズされたガラスとタッチスクリーン
モニターの耐久性と性能を向上させるために、モニター用のカスタムカットカバーガラスを選択することができます。自分に合った厚さを選択し、光学接着方式を選ぶことで、湿気や破損からモニターを保護することができる。
お問い合わせ 最適なカスタマイズされたソリューションを取得します。
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
