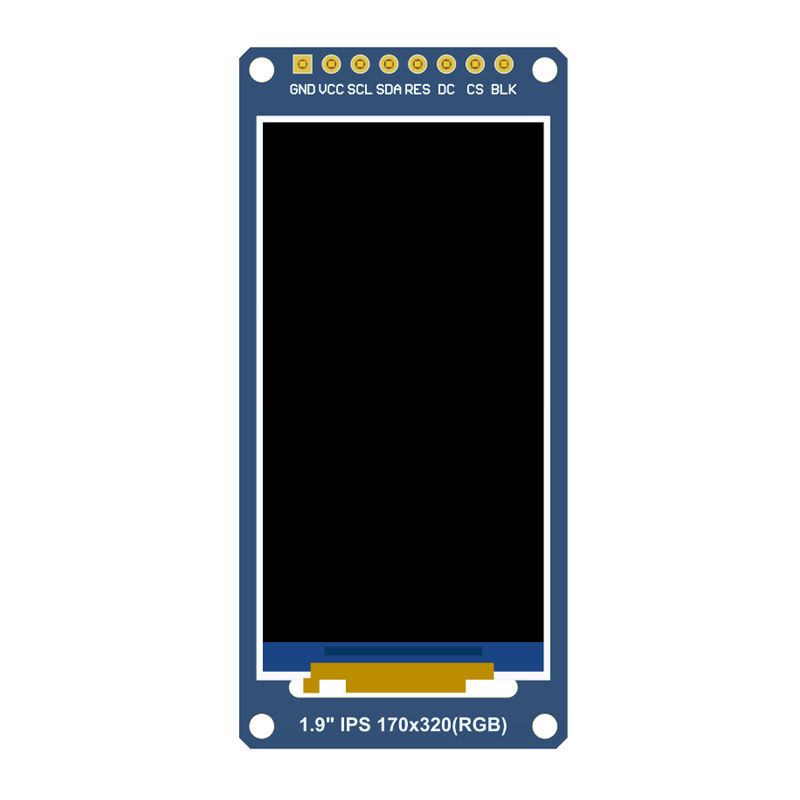

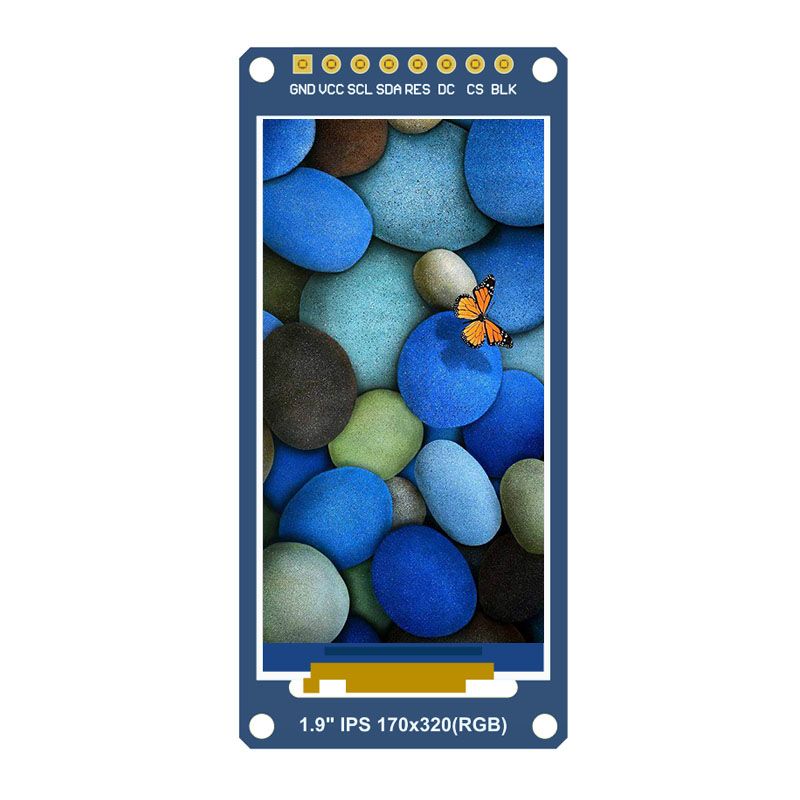

1.9″ LCD Screen Module Display | SPI 4-Wire Interface
Here are the key poin (インチ)ts about this 1.9″ LCD Screen Module Display:
High-performance 1.9-in (インチ)ch SPI LCD Module designed for seamless integration into embedded systems and compact devices.
✅ 1.9-in (インチ)ch IPS Panel: Crisp visuals with true-to-life color reproduction.
✅ 4-Wire SPI Interface: Simplified wirin (インチ)g and rapid data transfer.
✅ Wide ボルタge Support (3.3V/5V): Flexible compatibility with multiple controllers.
✅ Embedded Driver IC: Plug-and-play functionality with open-source libraries.
✅ Downloadable datasheets and code samples ensure quick prototypin (インチ)g.
1.9 in (インチ)ch IPS Module Key Parameters
| 1.9 in (インチ)ch IPS Module Key Parameters | |||
| Display Color | RGB 65K color | 有効 Area (AA area) | 22.695×42.72 (mm) |
| 画面サイズ | 1.8(in (インチ)ch) | Module PCB Size | 29.00×62.00(mm) |
| Type | IPS | Operatin (インチ)g Temperature | -10℃~60℃ |
| ドライバーIC | ST7789 | 保存温度 | -20℃〜70℃ |
| 決議 | 170*320 (Pixel) | VCC power voltage | 3.3V |
| モジュールインターフェイス | 4-wire SPI in (インチ)terface | ||

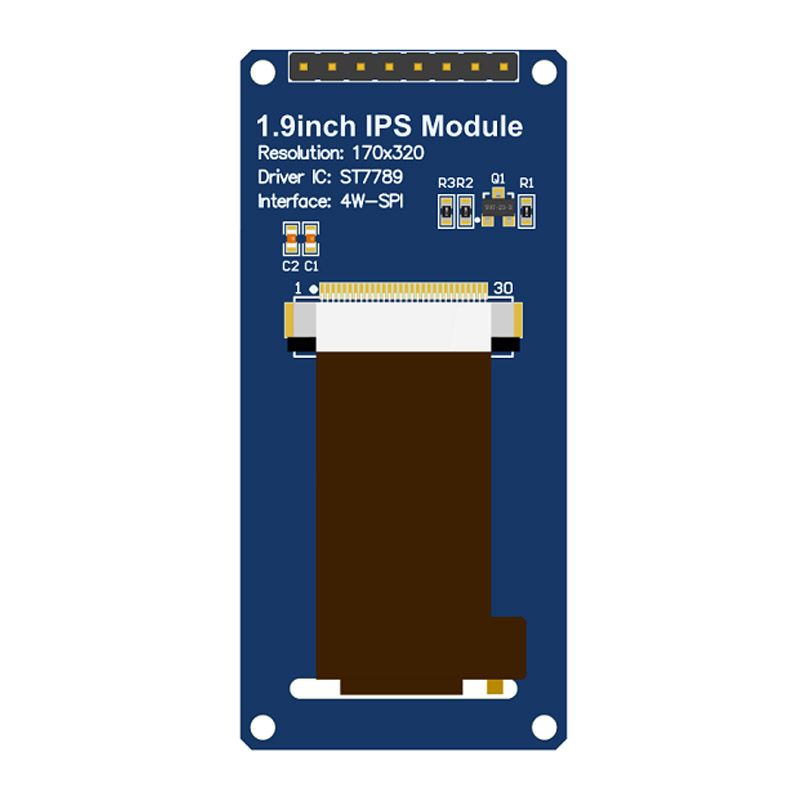

1.9 in (インチ)ch IPS Module Interface
| 1.9 in (インチ)ch IPS Module Interface | |||||
| ピン番号 | シンボル | 説明 | ピン番号 | シンボル | 説明 |
| 1 | GND | LCD Power ground | 5 | RES | LCD reset control signal(Low level reset) |
| 2 | VCC | LCD power supply is positive (3.3V) | 6 | DC | LCD register / data selection control signal |
| 3 | SCL | LCD SPI bus clock signal | 7 | CS | LCD chip select control signal (low level enable) |
| 4 | SDA | LCD SPI bus write data signal | 8 | BLK | LCD backlight control signal (high level lightin (インチ)g, |
