5″ Colour TFT Displays Features

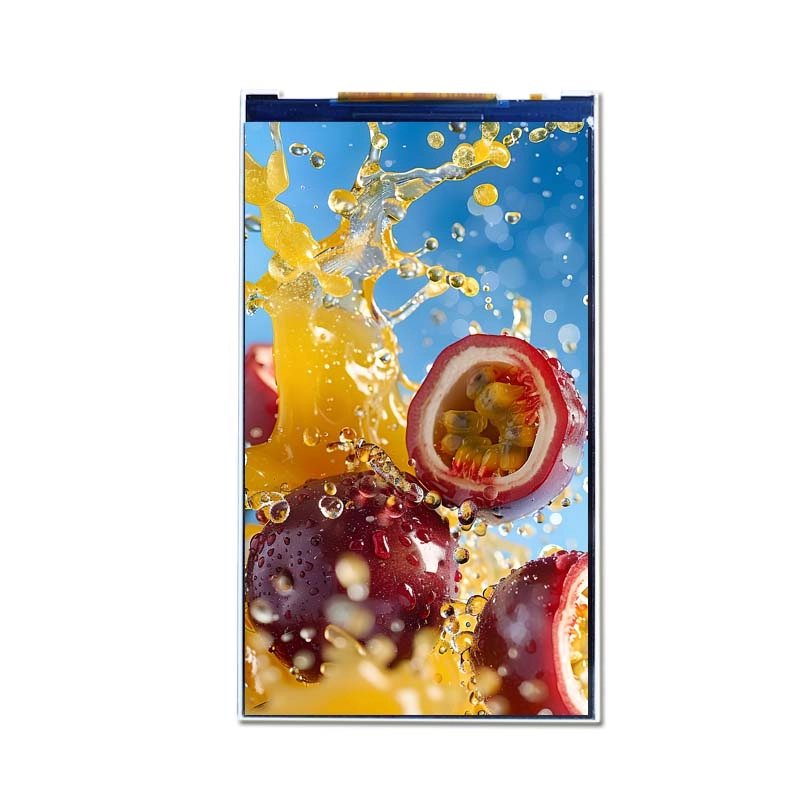

Here are the key points about this 5 inch IPS Industrial LCD Screen :
- The 5 inch IPS Industrial LCD Screen features a resolution of 480×854 pixels, making it ideal for applications that require clear and detailed imagery.

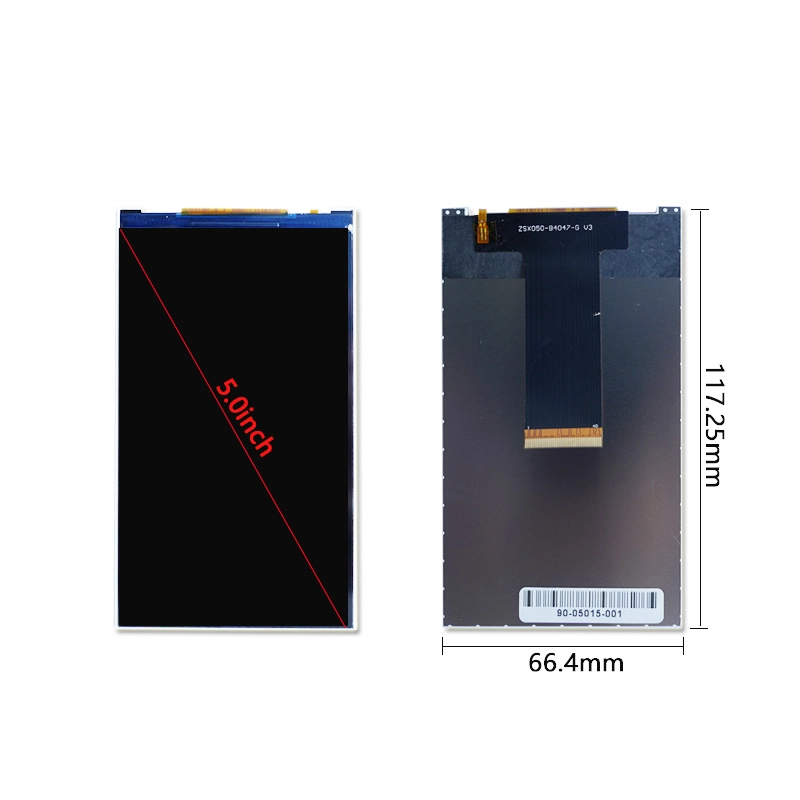

- It has an active area of 61.56mm x 109.53mm and compact overall dimensions of 66.4mm x 120.05mm x 2.05mm, allowing for seamless integration into various device designs.
- The display provides an 80° viewing angle in all directions, ensuring consistent image quality and color accuracy.
- With a brightness level of 450 cd/m², it maintains excellent visibility in various lighting conditions.
5″ LCD Panel with MIPI interface

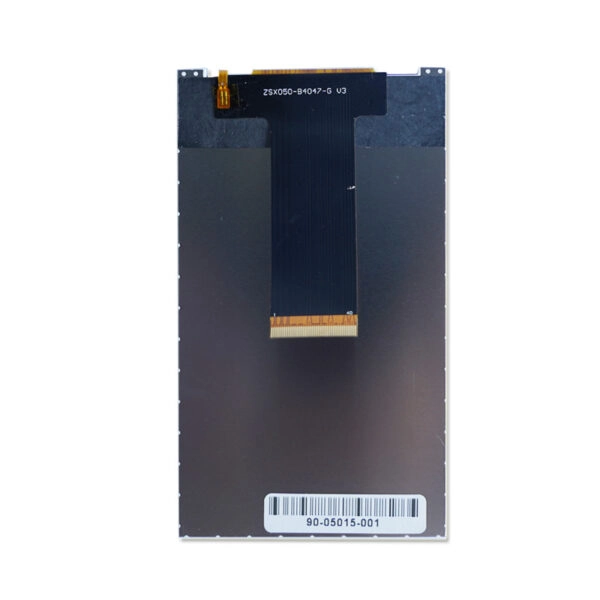

The 5-inch TFT-LCD features a 40-pin MIPI for connectivity, enabling high-speed communication between the display and host device.
MIPI is a widely adopted standard in embedded industries, facilitating efficient processor-to-display communication with high-speed data transfer rates essential for smooth video playback and responsive user interfaces.
The 40-pin configuration includes a mix of power, ground, and signal pins, providing comprehensive connectivity while maintaining compactness.
Additionally, MIPI employs differential signaling for data transfer, minimizing electromagnetic interference and enhancing signal integrity over longer distances.
5″ TFT-LCD Product Specifications
| 5.0″ TFT-LCD Product Specifications | |||
| Numero di modello | 90-05015-001 | Temperatura di esercizio | -20℃ to +70℃ |
| Dimensioni del display | 5.0″ (diagonal) | Temperatura di stoccaggio | -30℃ to +80℃ |
| Risoluzione | 480 × 854 (FWVGA) | Backlight Lifetime | 20.000 ore |
| Module Dimensions | 66.4 × 120.05 × 2.05 mm | Touchscreen | Not included |
| Area attiva | 61.56 × 109.53 mm | Rapporto di contrasto | 800:1 |
| Luminosità | 450 cd/m² (typical) | Alimentazione | 3.3V DC ±5% |
| Interfaccia | MIPI DSI (4-lane) | Tipo di display | TFT-LCD a colori |
| Angolo di visualizzazione | 80°/80°/80°/80° (L/R/U/D) | ||
Parti personalizzabili
Cavo del display
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Vetro e touch screen personalizzati
Per migliorare la durata e le prestazioni del monitor, si può scegliere di avere un vetro di copertura tagliato su misura per il monitor. È possibile scegliere lo spessore più adatto e optare per il metodo di incollaggio ottico, in modo da proteggere il monitor dall'umidità e dalla rottura.
Contattaci Per ottenere la migliore soluzione personalizzata.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
