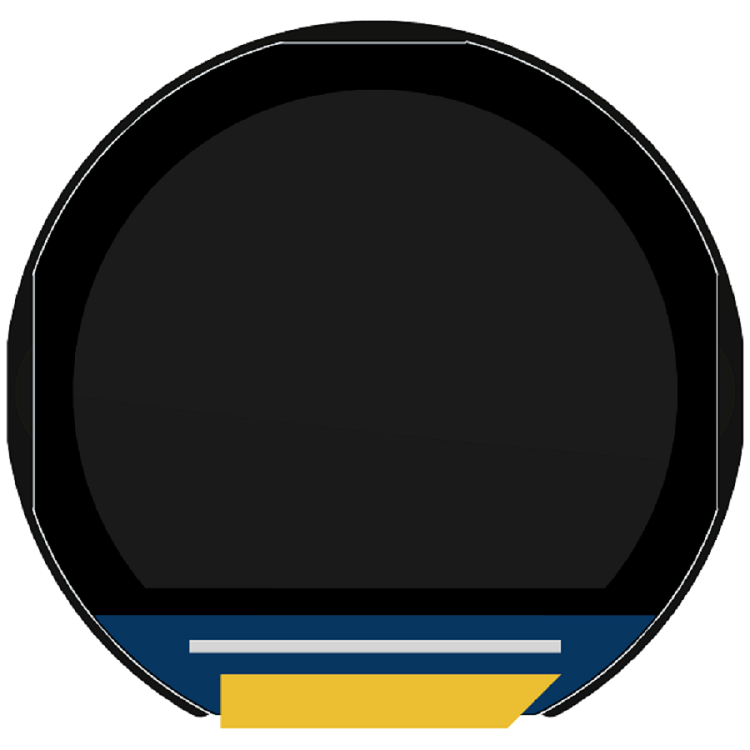

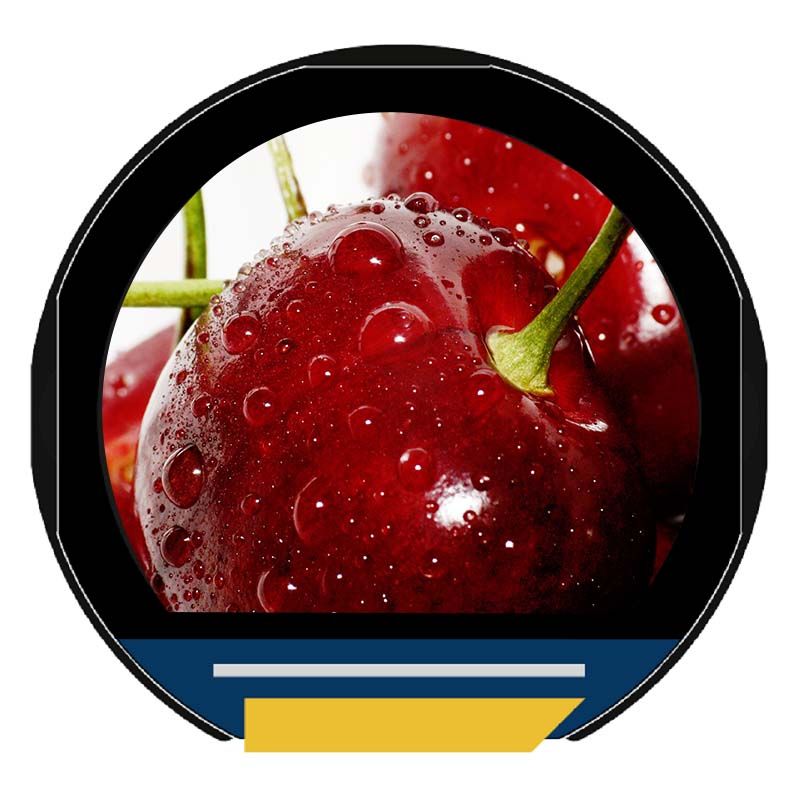

0.96″ Circular IPS TFT Display – 240×198 SPI Interface
Here are the key points about this 0 .96″ Circular IPS TFT Display
✅ 0.96″ Circular IPS Screen (240×198)
✅ 4-Wire SPI Interface (Save 50% I/O pins)
✅ 1.25mm Slot Connector (Anti-vibration design)
✅ Wide Operating Voltage: 3.3V/5V
✅ Plug-and-play compatibility with open-source libraries
✅RoHS certified & EMC-tested for reliability
✅Custom firmware/backlight options available

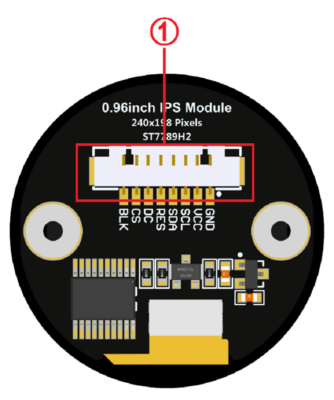

0.96 inch IPS ST7789 Hardware Description：
①8P slot ： 1.25mm spacing slot, module signal input pins
0.96 inch IPS ST7789 Key Parameters
| 0.96 inch IPS ST7789 Key Parameters | |||
| Dimensione | 0.96 (inch) | View Angle | ALL 0’CLOCK |
| Sku | DS20200 | Brightness (TYP) | 300 cd {{url_placeholder_0}} |
| Risoluzione | 240×RGB×198 (pixels) | Temperatura di funzionamento | -10~60 ℃ |
| Active Area (AA area) | 24.408(W) × 20.137(H) (mm) | Temperatura di stoccaggio | -20~70 ℃ |
| TFT Outline Size | 27.4±0.2(W) × 27.0±0.2(H) × 1.31±0.15(D) (mm) (Excluding adhesive backing) |
Working Voltage | 5.0 V / 3.3V |
| Module Outline Size | NO Glass Cover Plate: 29.73(W) × 28.14(H) × 6.66(D) (mm) (Including positioning columns) |
Backlight Current | 40 mA |
| Have Glass Cover Plate: 31.88(W) × 31.88(H) × 9.65(D) (mm) (Including positioning columns) |
Potenza | 0.09 W | |
| Display Interface | 4-Line SPI | Backlight Type | White LED × 2 |
