Descrizione

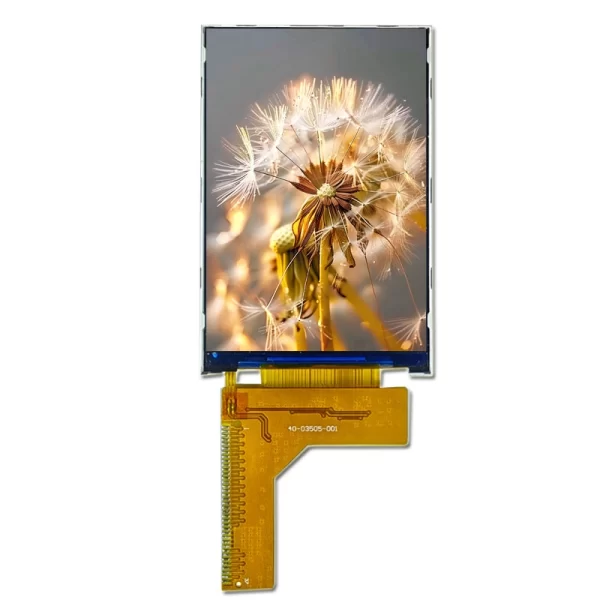

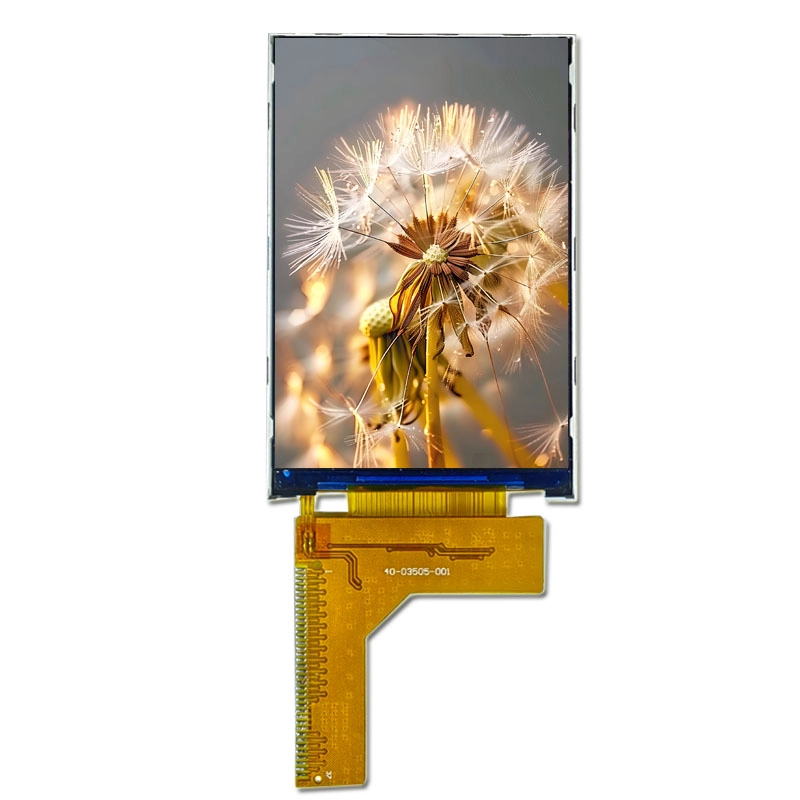

3.5 inch TFT LCD Screen
Here are the key points about this 3.5 inch RGB TFT LCD :
- 3.5 inch RGB TFT LCD delivers high-quality visuals with a resolution of 320×480 pixels.

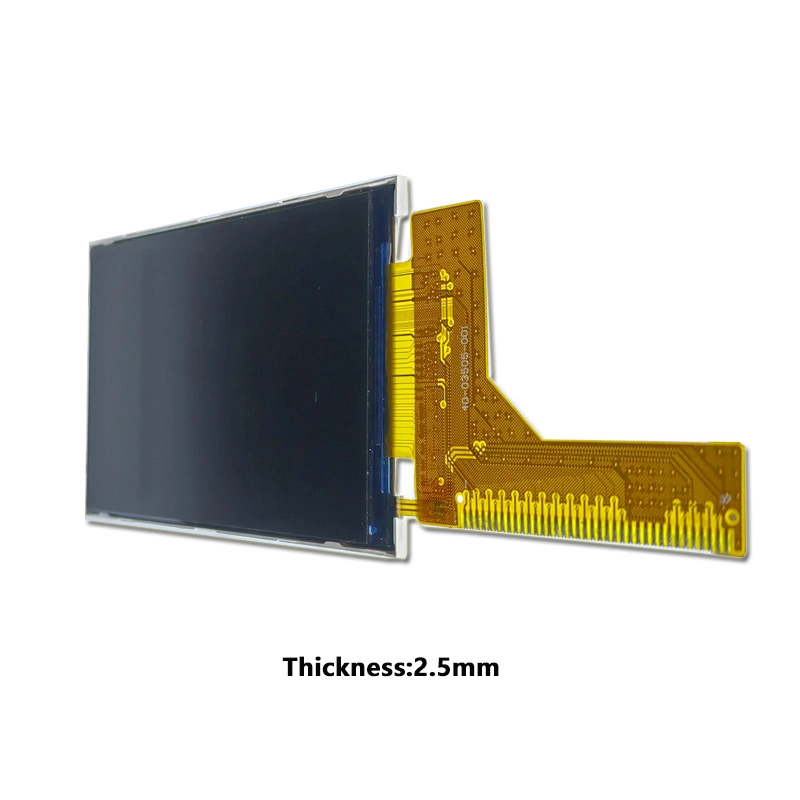

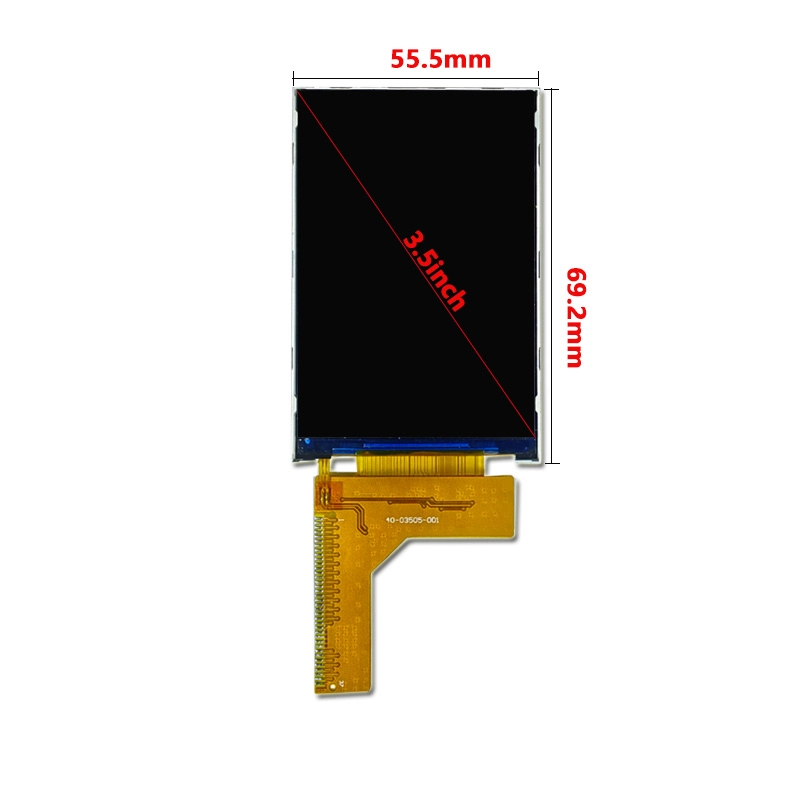

- It features an active area of 48.96mm x 73.44mm and overall dimensions of 54.5mm x 83mm x 2.15mm, facilitating easy integration into various device designs.
- With a brightness level of 350 cd/m², it provides good visibility in different lighting conditions, while the LED backlight has a lifetime of 20,000 hours for reliable use.
- The high contrast ratio of 1000 enhances content clarity, and the module operates within a temperature range of -20°C to 70°C, with storage capabilities from -30°C to 80°C.
- Utilizing an RGB interface with a 50-pin connection, this display allows for seamless integration with modern microcontrollers and processors.
High Contrast Ratio TFT Display
The 1000:1 contrast ratio of the display module enhances visual clarity by ensuring that the brightest white is 1000 times brighter than the darkest black, which results in sharper and more detailed images, making text and graphics easier to read.
This high contrast also improves color depth, allowing the display to reproduce a wider range of colors accurately, which is particularly beneficial for applications requiring precise color matching, such as graphic design and photography.
Additionally, the higher contrast ratio enables better performance in varied lighting conditions, ensuring that content remains visible in both bright sunlight and dimly lit environments.
3.5″ TFT-LCD Specifications
| 3.5″ TFT-LCD Specifications | |||
| Numero di modello | 90-03505-001 | Temperatura di esercizio | -20~70 |
| Dimensione | 3.5 | Temperatura di stoccaggio | -30~80 |
| Risoluzione | 320*480 | Durata del LED | 20000 |
| Dimensione del contorno | STN (+) Gray | Supporto per touchscreen | Senza |
| Area attiva | 48.96*73.44 | Rapporto di contrasto | 1000:01:00 |
| Luminosità (cd/m²) | 350 | Alimentazione | 3.3V |
| Interfaccia | RGB | Tipo di display | LCD a colori |
| Visualizza la direzione | TUTTO | ||
Parti personalizzabili
Cavo del display
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Vetro e touch screen personalizzati
Per migliorare la durata e le prestazioni del monitor, si può scegliere di avere un vetro di copertura tagliato su misura per il monitor. È possibile scegliere lo spessore più adatto e optare per il metodo di incollaggio ottico, in modo da proteggere il monitor dall'umidità e dalla rottura.
Contattaci Per ottenere la migliore soluzione personalizzata.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
