Understanding E-Ink Technology
Overview of E-Ink Displays
E-Ink Displays are a groundbreaking type of screen technology. They copy the look of regular printed paper. Yet, they allow reuse like modern screens. This technology is often called E-Ink, E-Paper, or Electrophoretic Displays (EPD). It has special features like great readability in sunlight, low energy use, and the ability to show an image without needing constant power. These qualities make E-Ink Displays perfect for uses where clear reading and energy savings are important.
Common Terminology: E-Ink, E-Paper, and EPD
The terms E-Ink, E-Paper, and EPD are often used in the same way. They describe Electrophoretic Displays. These use electrically charged particles to show text and images on a screen. Their similarity to ink on paper makes them popular in devices like e-readers and digital signs.
Popular Applications in Daily Life
E-Ink Displays are key in many everyday devices. They are best known in Amazon Kindle e-readers. But they are also widely used in electronic shelf labels, smartwatches, thermostats, store kiosks, road signs, and extra laptop screens. Their flexibility extends to wearable devices and IoT uses where low energy use is vital.
Exploring the Fundamentals of E-Ink
Key Characteristics of E-Ink Displays
E-Ink Displays stand out because of their bi-stable nature. This lets them keep an image without using power all the time. They also work in a fully reflective mode. They use nearby light instead of backlighting to show images. This design ensures clear visibility in direct sunlight. It also reduces eye tiredness.
Variants of E-Ink: Monochrome and Color Options
Most traditional E-Ink Displays are monochrome or grayscale. They show black-and-white text or images. However, new versions include tri-color options. These add red or yellow colors. They use extra pigments controlled by electrical signals for a better look. Full-color models use CMYK pigments or RGB filters. But they need more processing power.
Devices Incorporating E-Ink Technology
E-Ink technology is used in many devices. These include e-readers like Kindle and new uses like digital shelf labels and car dashboards. It is also found in fitness trackers, smart home devices like thermostats, ad kiosks, and even foldable technologies.
The Working Mechanism Behind E-Ink Displays
Comparing E-Ink with LCD Technology
E-Ink and LCD technologies have similar goals. But their methods are very different. LCDs use LED backlights to light up pixels. However, E-Ink Displays use microcapsules filled with charged pigments. These respond to electrical signals. This key difference makes E-Ink more energy-saving. But it is less suited for fast-changing tasks like video playback.
Structure and Components of an E-Ink Display
An E-Ink Display has a film layer with millions of microcapsules. These are placed between electrodes. Each microcapsule contains positively charged white particles and negatively charged black particles. They are in a clear liquid. When an electrical signal is applied, the particles move to create visible images or text on the screen.
Electrostatic Principles Driving the Display
The display works on electrostatic principles. Opposite charges attract each other. For example, a negative charge makes black particles move up in the microcapsules. White particles move down. This movement decides if a pixel looks black or white on the screen.
Benefits of Using E-Ink Displays
Bi-Stable Display Mode and Its Advantages
A top feature of E-Ink is its bi-stable mode. This lets an image or text stay visible without using power until it needs to change. For example, an e-reader only uses energy when turning pages. It does not use power for static content.
Pure Reflective Mode for Optimal Viewing
Unlike LCDs that use backlights, E-Ink Displays use nearby light reflected off their surfaces. This can wash out in sunlight for LCDs. But E-Ink improves contrast greatly compared to standard LCDs. This makes them perfect for outdoor uses like street signs with solar panels.
E-Ink combines energy savings with clear readability in different lighting conditions. It also includes new ideas like foldable designs. So, it keeps shaping modern screen solutions for eco-friendly uses worldwide.
Real-World Applications of E-Ink Technology
Role of E-Ink in Modern E-Readers
E-Ink technology has changed the e-reader market. It offers a reading experience like traditional books. The Amazon Kindle is the best-known example. It uses E-Ink Displays to give a paper-like reading feel. These displays are great at copying the look of ink on paper. They ensure clear reading even in bright sunlight. Unlike LCD screens, E-Ink Displays use a fully reflective mode. This removes the need for backlighting. It also reduces eye strain during long reading. Their bi-stable nature lets them hold an image without constant power. This makes them perfect for long reading sessions. The energy savings mean e-readers can work for weeks on one charge.
Adoption in Electronic Shelf Labels for Retail

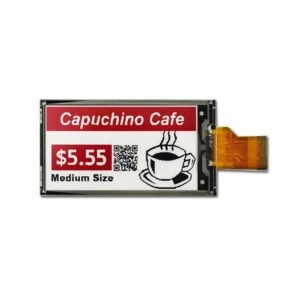

Stores are using electronic shelf labels (ESLs) with E-Ink technology more and more. These labels show prices and product details that can change without manual work. E-Ink Displays are great for this because they use little energy. They also have clear visibility in different lighting. Stores save on costs and improve customer experiences. Prices and deals can update in real time. Also, tri-color E-Ink Displays show black, white, and red. This helps highlight discounts or special offers clearly.
Integration into Wearable Devices
Wearable devices like smartwatches and fitness trackers use E-Ink technology. It saves energy and is easy to read. The bi-stable display mode uses little power for static information like time or activity data. This greatly extends battery life. This is a key factor for wearables. Also, the reflective nature of E-Ink Displays ensures clear visibility in bright outdoor settings. Small E-Ink modules, like the 1.54-inch tri-color display with 152 x 152 pixel resolution, are perfect for these uses. They are small and have sharp image quality.
Usage in Phones, Road Signs, and Digital Dashboards
E-Ink technology is used beyond e-readers and wearables. Some mobile phones have secondary E-Ink screens. These offer an energy-saving option for reading notifications or e-books. In public areas, E-Ink road signs use solar power to show real-time traffic updates. They stay clearly visible in sunlight. Car dashboards are another new area. E-Ink Displays show important information clearly without distracting drivers. These uses show the flexibility of E-Ink technology across many fields.
Challenges Faced by E-Ink Displays
Limitations in Monochrome and Color Capabilities
Monochrome E-Ink Displays are great for clear black-and-white visuals. But their color versions have some limits. Tri-color versions usually add red or yellow pigments. They cannot show the full range of colors like LCDs or OLEDs. Full-color E-Ink models use CMYK pigments or RGB filters. But they often lose some reflectivity and resolution.
Constraints Due to Low Refresh Rates
A big downside of E-Ink Displays is their slow refresh rates compared to LCDs or OLEDs. This makes them unsuitable for fast-moving visuals like videos or games. The slow refresh comes from the time it takes for charged particles in microcapsules to move.
Incompatibility with Video or High-Speed Content
E-Ink technology focuses on energy savings over speed. This makes it unfit for high-speed content like videos or animations. So, its use is limited to static or semi-static tasks where refresh speed is not important.
Advancements Shaping the Future of E-Ink Displays
Innovations in Color-Based E-Ink Technology
New improvements aim to boost the color abilities of E-Ink Displays. They keep their core benefits. Researchers are exploring new pigment mixes and overlay technologies. These expand color ranges while keeping energy savings.
Emerging Trends in Display Technology
Foldable E-Ink Displays are an exciting trend. They could change portable devices like e-books and tablets. Work is also being done to create high-refresh-rate versions. These would work for dynamic content like ads.
Miqidisplay E-Paper Display Panel

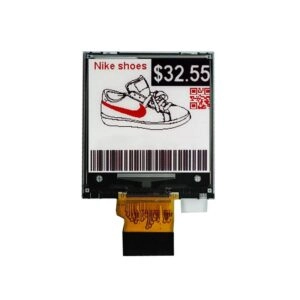

Miqidisplay offers advanced solutions in E-Paper Display Panels. They meet various industry needs. The 1.54-inch tri-color module shows their focus on new ideas. It uses advanced Electrophoretic technology. It supports black, white, and red colors. Its small size makes it great for wearable devices like smartwatches. It ensures great readability even in bright sunlight. It has an SSD1680 drive IC. It supports both 3-wire SPI and 4-wire SPI interfaces. This allows easy integration into IoT devices and digital signs. The operating temperature range (0°C ~ +40°C) adds to its flexibility in different settings.
Miqidisplay’s skills go beyond standard products. They offer custom solutions tailored to specific needs. With global certifications like ISO-9001, Miqidisplay sets high standards in display innovation worldwide. Contact Miqidisplay for E-Paper Display Panels customization for your business.
