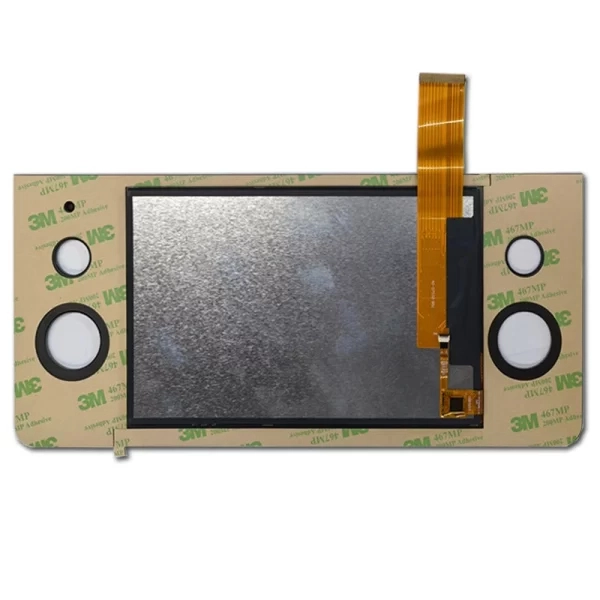

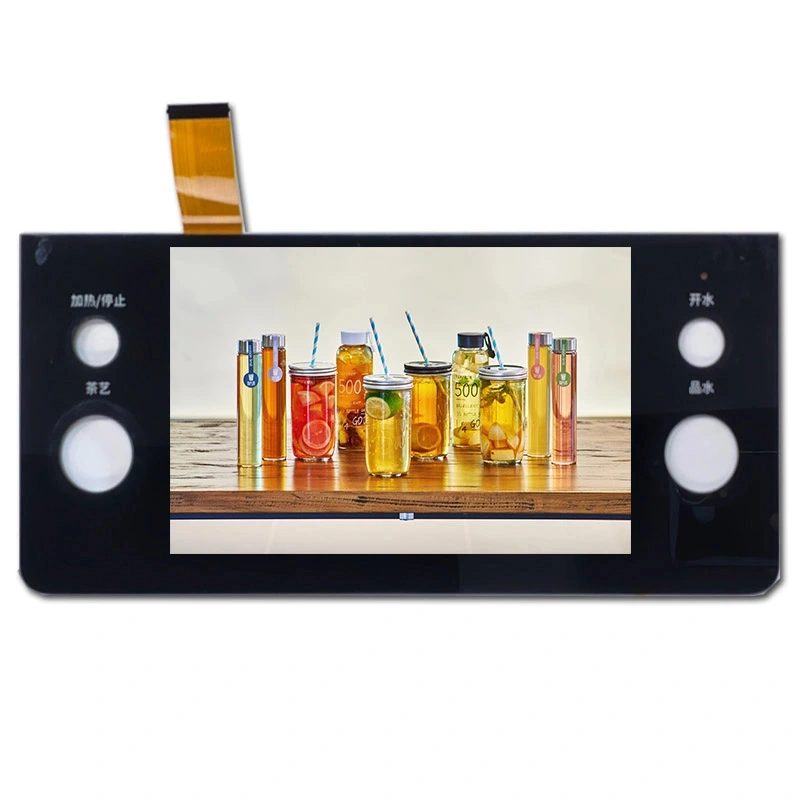

7″ TFT Displays Features
Here are the key points about this 7 inch IPS Industrial TFT LCD :
This 7 inch IPS Industrial TFT LCD uses BOE glass panels, ensuring stable operation and reliable performance.
Currently in mass production for water dispenser terminals, it has been customized with interface modifications and enhanced backlight brightness to meet specific client needs.
Tailor-made solutions are available to suit your requirements:
- Customizable interfaces (MIPI/LVDS/RGB)
- Adjustable backlight brightness (up to 1000 nits)
- Optional touchscreen integration (capacitive/resistive)
Contact us to design your exclusive 7-inch display for home appliances, industrial control, or smart devices.
7″ TFT-LCD Specifications
| 7″ TFT-LCD Specifications | |||
| Modellnummer | 91-07032-BS2 | Betriebstemperatur | -20~60 |
| Größe | 7 | Lagertemperatur | -30~70 |
| Auflösung | 800*1280 | LED-Lebensdauer | 20000 |
| Umriss Dimension | 146.9*214.3*5.8 | Touchscreen-Unterstützung | No |
| Aktiver Bereich | 94.20*150.72 | Kontrastverhältnis | 1000:01:00 |
| Helligkeit(cd/m²) | 400 | Stromversorgung | 3.3V |
| Schnittstelle | Mipi | Anzeige Typ | Farb-LCD |
| Ansicht Richtung | ALLE | ||
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
