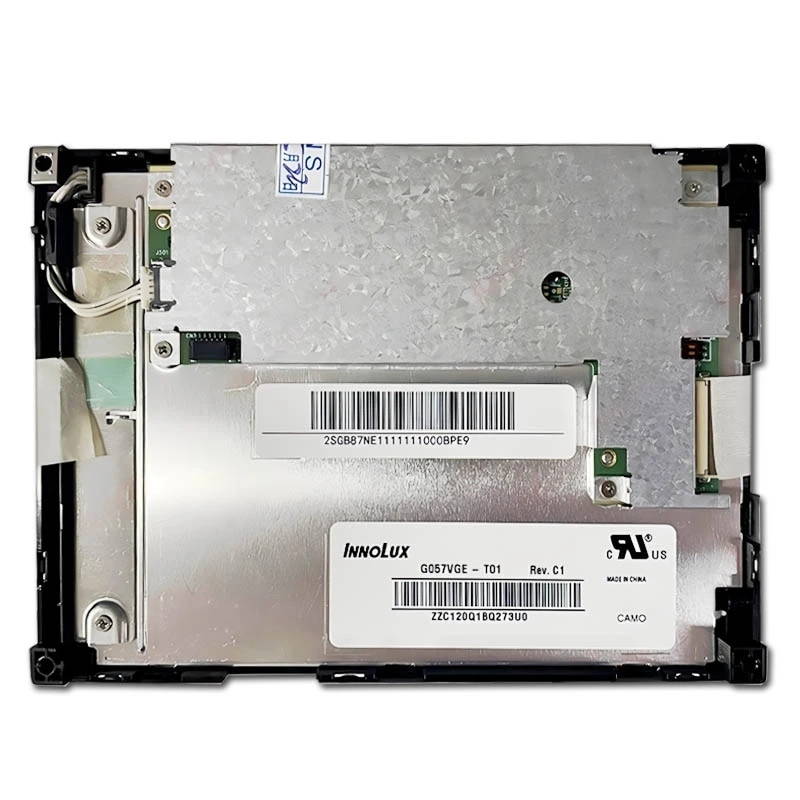

Innolux G057VGE-T01 General Description
Here are the key points about this Innolux G057VGE-T01 Industrial Displays :
Innolux G057VGE-T01 Industrial Displays is a 5.7″ a-Si TFT-LCD LCM with 640(RGB)×480 VGA resolution (141 PPI, RGB vertical stripe pixel format), 115.2(W)×86.4(H) mm active area, 118.2(W)×89.4(H) mm bezel opening, and 144(W)×104.6(H)×12.8(D) mm outline featuring antiglare treatment (Haze 25%).
It offers 450 cd/m² luminance, 800:1 typ. contrast ratio, 80/80/70/70 viewing angle (CR≥10), 15/35ms typ. response time, TN normally white transmissive mode, 262K color depth (54% NTSC), 60Hz base refresh rate (supports 120Hz/240Hz via embedded MEMC).
WLED backlight (50K hours, with driver), and is designed for industrial use without a touch panel.
It uses TTL (1 ch, 6-bit) 33-pin connector interface, operates on 3.3V supply, and withstands -30~85°C operating/storage temperatures.
Why choose us？
1）Quality Guarantee: Original A-grade Innolux lcd.
2）Door to Door Shipping: leading time 3-5 days, shipped by DHL or FEDEX.
3）Reliable after sale-service: we have our own lcd factory, and engineering team to more efficiently and accurately resolve your screen-related issues.
5.7″ Product Specifications
| 5.7″ TFT LCD Display Specifications | |||
| Диагональный размер | 5.7 inch (144.78 mm) | Коэффициент контрастности | 800:1 |
| Разрешение | 640 × 480 (VGA) | Рабочая температура | -30°C to +85°C |
| Яркость | 450 CD {{url_placeholder_0}} | Температура хранения | -30°C to +85°C |
| Module Dimensions | 144.0 × 104.6 × 12.8 mm | Backlight Lifetime | 50 000 часов |
| Активная область | 115.2 × 86.4 mm | Touch Panel | Not included |
| Viewing Technology | Twisted Nematic (TN) | Power Input | 3.3V DC |
| Viewing Angles | 80°(U)/80°(D)/70°(L)/70°(R) | Тип дисплея | Цвет TFT LCD |
| Interface Type | TTL (33-pin) | ||
Настраиваемые детали
Кабель дисплея
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Индивидуальное стекло и сенсорный экран
Чтобы улучшить долговечность и производительность монитора, вы можете выбрать индивидуальное защитное стекло для вашего монитора. Вы можете выбрать подходящую вам толщину и выбрать метод оптического склеивания, тем самым обеспечив монитору защиту от влаги и поломок.
Связаться с нами Чтобы получить лучшее индивидуальное решение.
