描述
AUO G121EAN01.2 Liquid Crystal Display Module key Features
Here are the key points about this AUO G121EAN01.2 Liquid Crystal Display Module :
- Ultra-high luminance reaches 1000 cd/m², which can ensure the vividness of the visual image.
- The contrast ratio is 1000:1, which can present deep black images.
- It has a wide viewing angle of 89 degrees in all directions, providing a good viewing experience.
- With a fast response time of only 25ms, it is suitable for displaying dynamic content.
- It has a wide applicable temperature range and can operate efficiently in an environment from -30°C to 85°C, showing strong environmental adaptability.
- It has a compact design and is lightweight, making it easy to install and use.
- It adopts a durable LVDS interface with a connection lifecycle of up to 50,000 times, enhancing the reliability of the product and the convenience of integration.
AUO G121EAN01.2 Application

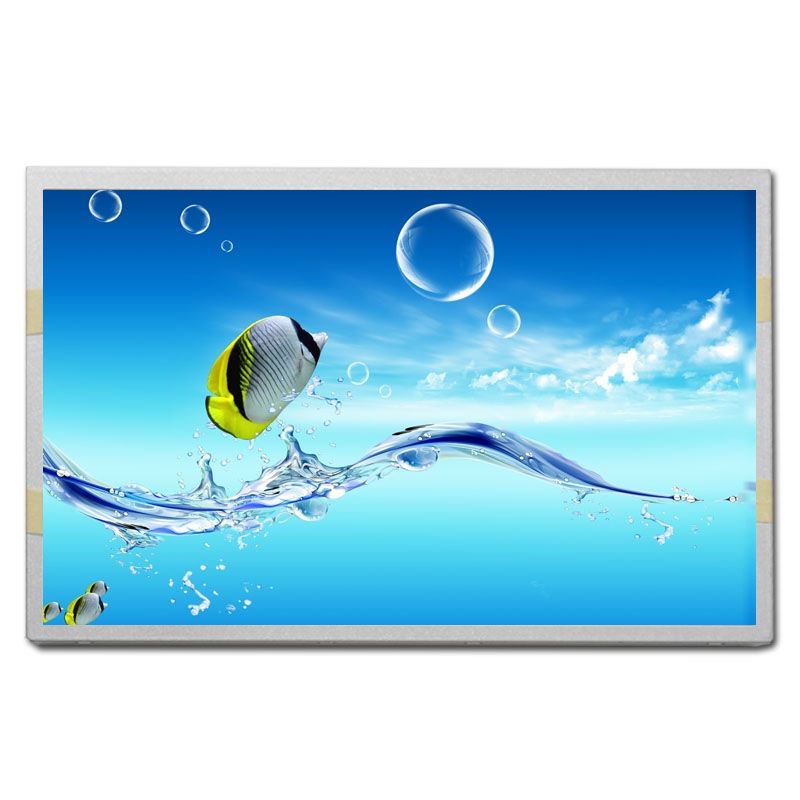

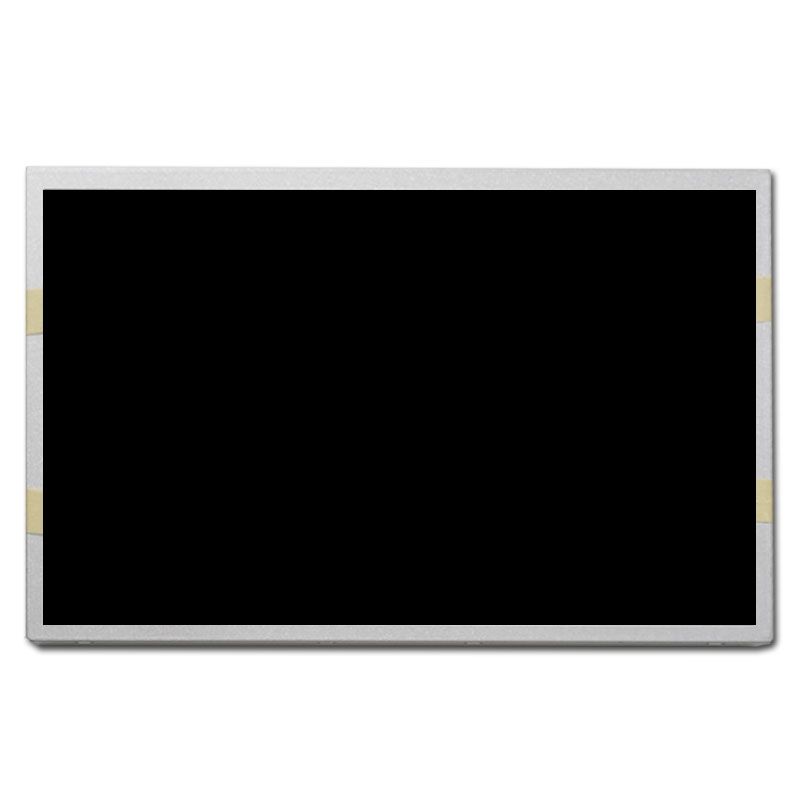

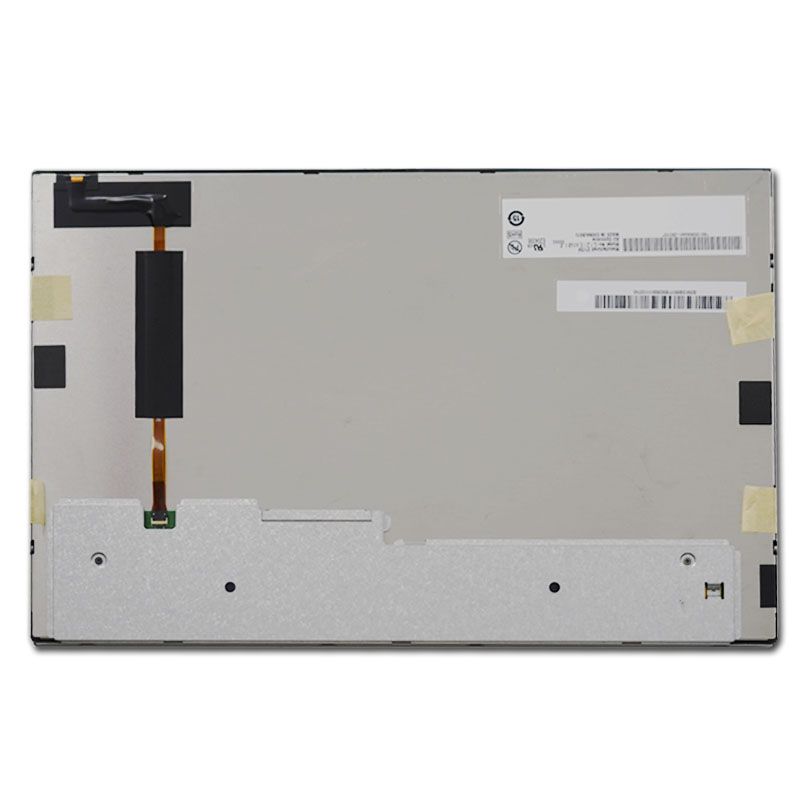

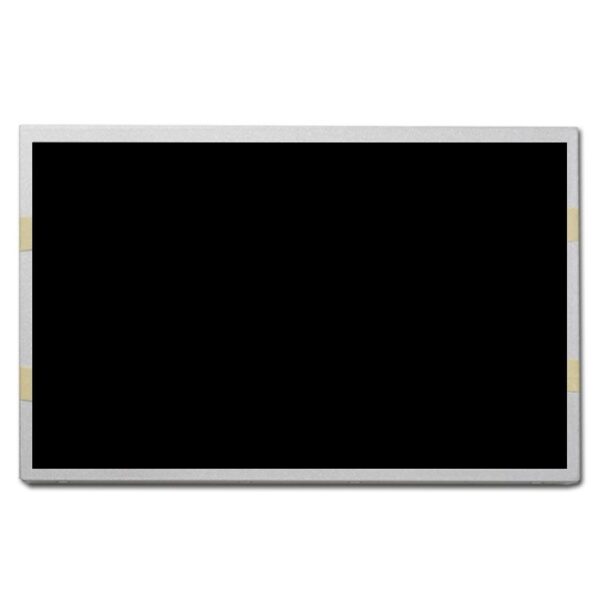

The 12.1-inch WXGA IPS AUO G121EAN01.2 display is highly versatile. It’s ideal for industrial/embedded systems (automation, HMIs, etc.), the medical field (patient monitoring, surgical equipment), automotive/transportation (infotainment, navigation), and marine/outdoor uses (navigation, outdoor kiosks). Its adaptability makes it a reliable option across diverse environments.
12.1″ TFT-LCD Product Specifications | |||
Numer modelu | G121EAN01.2 | Temperatura pracy | -30~85 |
Rozmiar | 12.1 | Temperatura przechowywania | -30~85 |
Rozdzielczość | 1280*800 | Żywotność LED | 50000 |
Wymiar konturu | 278*184*9.94 | Obsługa ekranów dotykowych | Bez |
Obszar aktywny | 261.12*163.2 | Współczynnik kontrastu | 1000:01:00 |
Jasność (cd/m²) | 1000 | Zasilanie | 3.3V |
Interfejs | LVDS | Typ wyświetlacza | Kolorowy wyświetlacz LCD |
Kierunek widoku | WSZYSTKO |
Konfigurowalne części

Kabel wyświetlacza
Możemy dostosować długość, pozycję i piny kabla zgodnie z Twoimi potrzebami lub dodać dodatkowe złącza, aby zwiększyć jego funkcjonalność.
Niestandardowe szkło i ekran dotykowy
Aby zwiększyć trwałość i wydajność monitora, można zdecydować się na niestandardową szybę ochronną. Możesz wybrać grubość, która Ci odpowiada i zdecydować się na metodę klejenia optycznego, zapewniając w ten sposób monitorowi ochronę przed wilgocią i pęknięciami.

Skontaktuj się z nami Aby uzyskać najlepsze dostosowane rozwiązanie.
