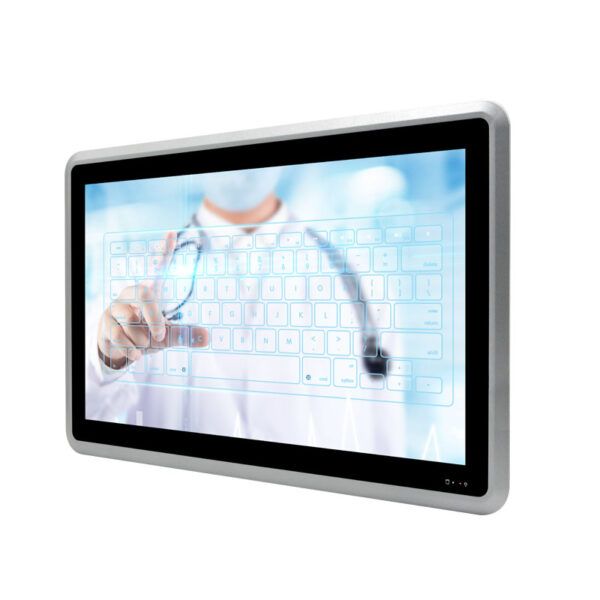

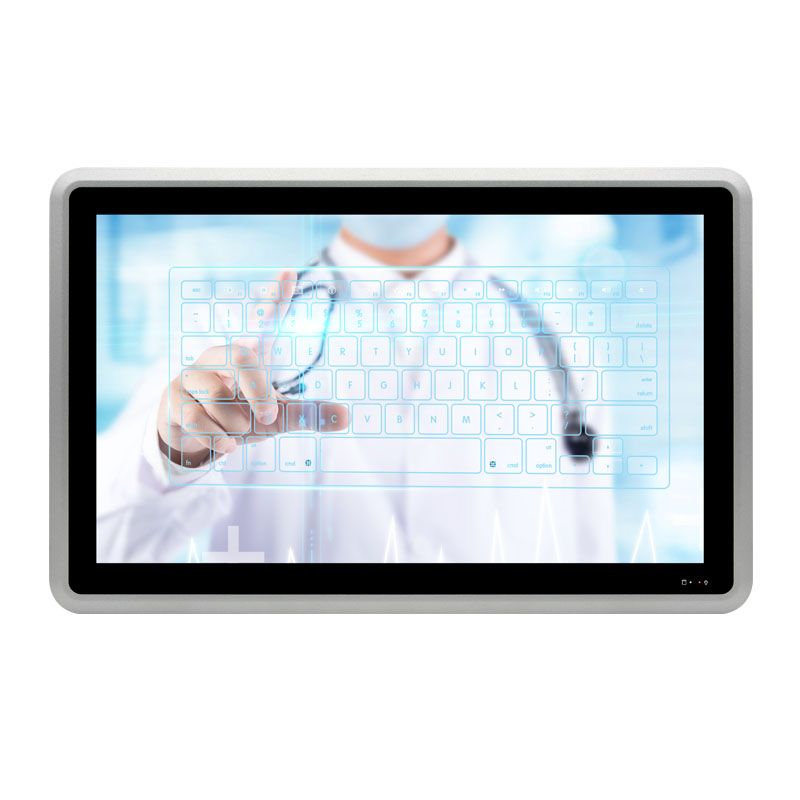

15.6 inch Industrial Touch Panel main features
Here are the key points about this 15.6 inch Industrial Touch Panel :
- 15.6 inch widescreen LCD, 1920*1080, capacitive touch screen
- 1*HDMI
- 2*intel I210 Gigabit network card
- 6*RS232 serial ports, COM1~2 RS232 DB9 serial ports, COM2 supports RS485/422, COM3~6 RS232 on 2*15P Phoenix terminal, COM3 supports RS485
- 4-input 4-output GPIO, 4*USB3.0, 2*USB2.0
- 9~36V wide voltage input

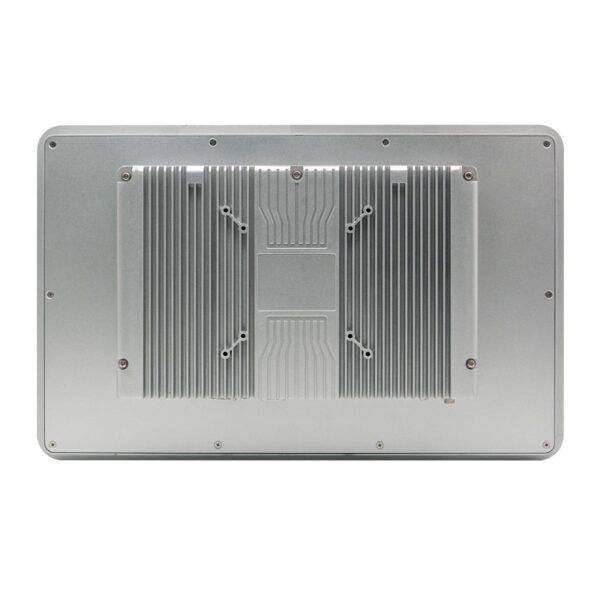

- Aluminum alloy material, fanless heat dissipation structure
15.6 inch Industrial Touch Panel |
||
| Chassis | Material/Structure | Aluminum alloy material, fanless heat dissipation structure |
| Kolor | Bright Silver | |
| Dimensions (L*W*H) | L400*W253*H62mm | |
| Waga netto | 3.2KG | |
| Installation | Support VESA/embedded panel installation | |
| Wyświetlacz LCD | Type | 15.6 inch Full HD widescreen |
| Rozdzielczość | 1920 * 1080 | |
| Jasność | 300 cd/m2 | |
| Touch Screen | Type | Capacitive screen, 10 point touch |
| Transmittance | ≥85% | |

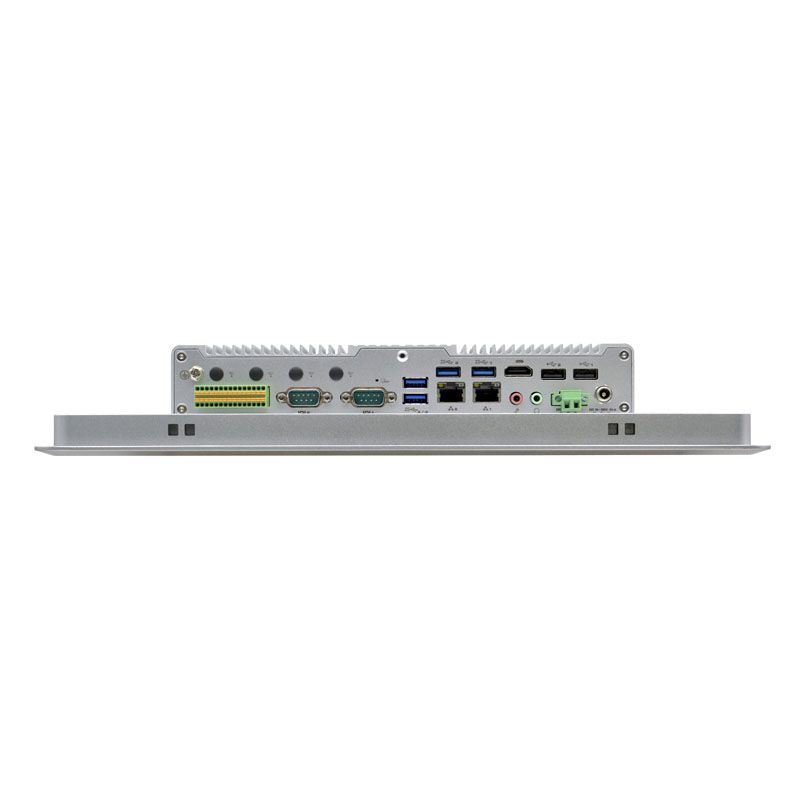

| IO interface | POWER | 1*power button, 1*one-key restore, 1*ACLOSS (power-on dial switch),1*CMOS reset button |
| Display interface | 1*HDMI | |
| LAN | 2*Intel I210 Gigabit network card, support network wake-up, PXE | |
| USB | 4*USB3.0，2*USB2.0 | |
| COM | 6*RS232 serial port, COM1 RS232 DB9 serial port, COM2 RS232/485/422 DB9 serial port, COM3-6 RS232 on 2*15P Phoenix terminal, COM3 supports RS485, COM1-2 Support the 9th pin live function | |
| Phoenix terminal | 2*15P (4 in 4 out GPO/power switch signal/COM3~COM6/5V VCC/GND) | |
| DIP switch | 10-bit DIP switch, COM2~3 RS232/485 switching, COM2 RS422 is realized through COM2_SW1 jumper | |
| Audio | 1*Line out，1*MIC | |
| Store | Power | 1*DC (5.5*2.5) aviation interface or 1*2P P=5.08mm Phoenix terminal, support 9V~36V input |
| SATA | 1*2.5-inch hard disk slot | |
| M.2 | 1*M.2/SSD, support Key-M, 2280, NVME PCIEx4 SSD | |
| Extend | MSATA | 1*MSATA |
| M.2 | 1*M.2/WiFi，Key-E，2230，support WiFi module | |
| 1*M.2/5G，Key-B，2242/52，support 5G module | ||
| Power | Power type | External power adapter |
| Voltage input | 9V~36V wide voltage | |
| Power output | AC TO DC 60W or above | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20 ℃～ 70 ℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Operating vibration | 0.5g rms/5-500HZ/random/operating | |
