AT070TN94 General Description

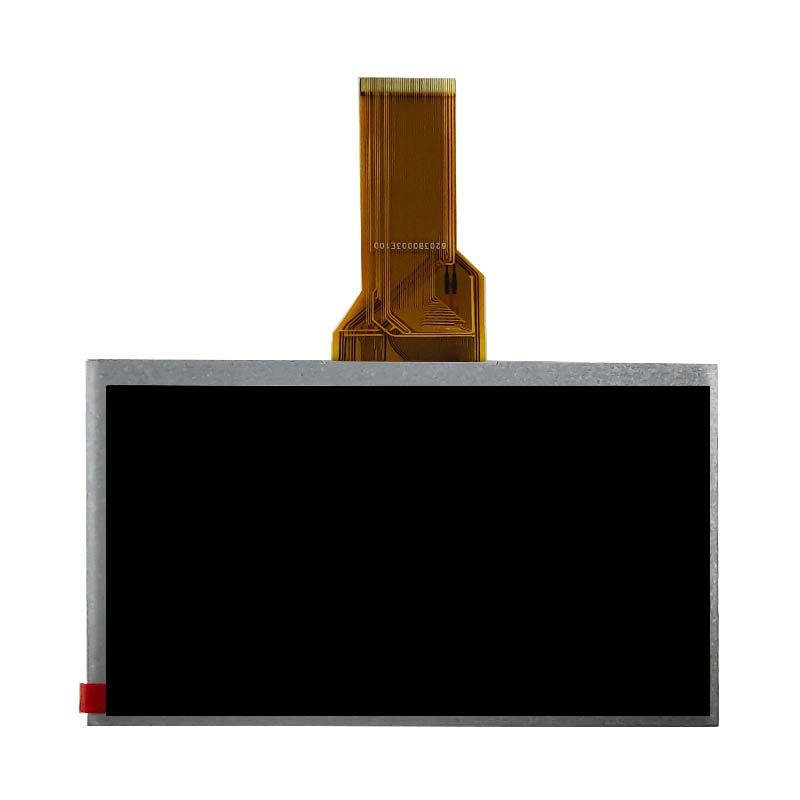

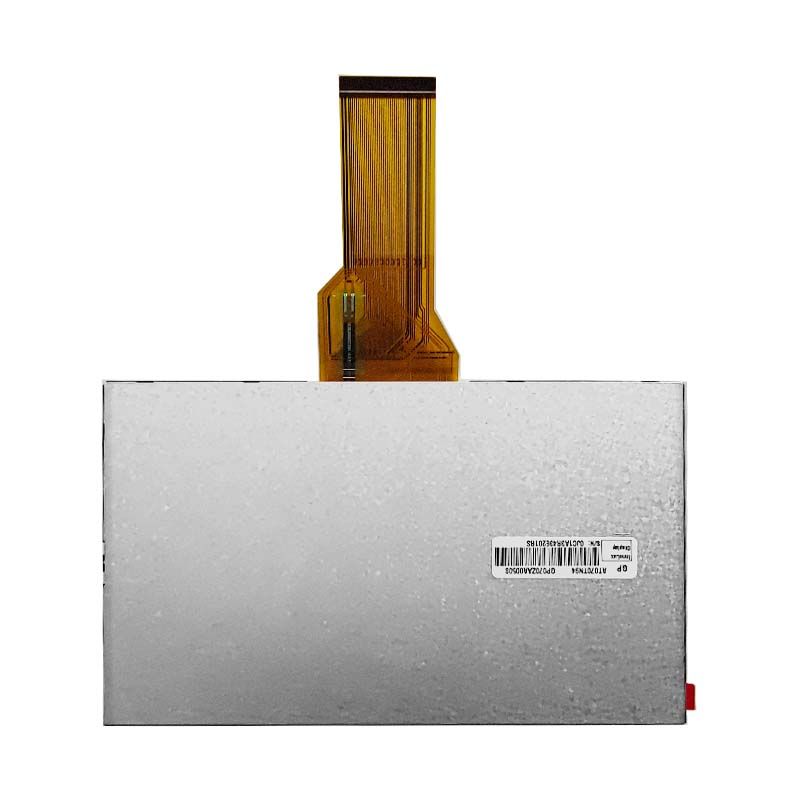

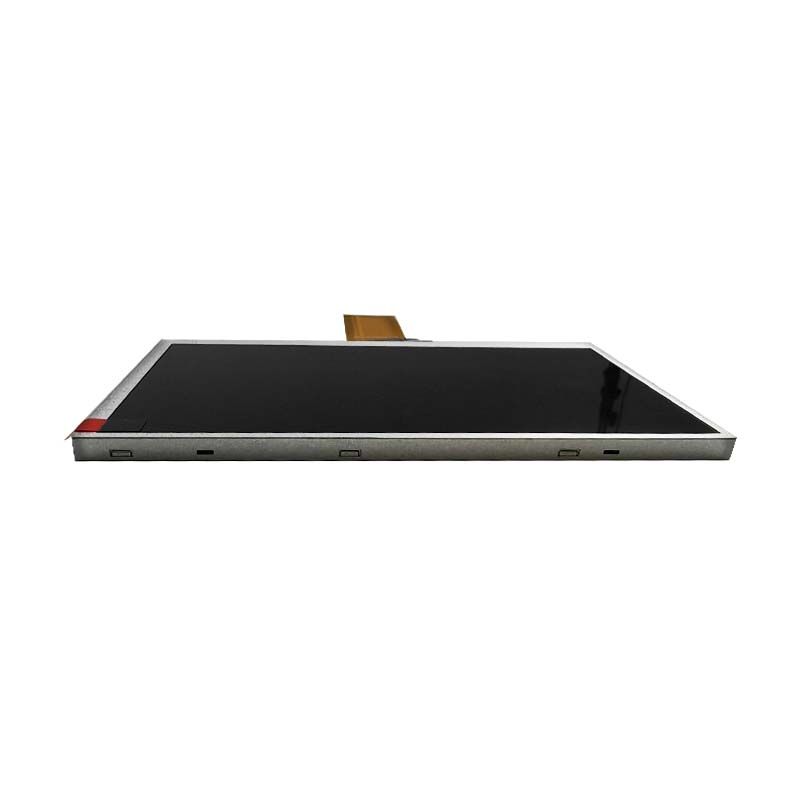

Here are the key points about this Innolux AT070TN94 TN LCD Display :
General Overview: The Innolux AT070TN94 is a 7-inch TFT LCD designed for demanding applications, featuring an 800×480 resolution and 400cd/m² high brightness for clear visibility under direct sunlight.
Display Specifications: Equipped with a TN panel offering a 500:1 contrast ratio and a compact outline (164.9×100×6mm) for seamless integration into space-constrained systems.
Environmental Performance: Industrial-grade design supports operation from -30°C to 85°C, ensuring reliability in extreme conditions.
Interface & Power: RGB interface delivers stable signal transmission, while a low-power design (3.3V~16V) reduces energy consumption.
Longevity & Design: Backed by a 20,000-hour LED lifespan, built for long-term deployment in automation, transportation, or outdoor digital signage without touchscreen distractions.
Innolux AT070TN94 TN LCD Display Application & Performance
The AT070TN94 is built for rugged conditions, ideal for industrial control panels, heavy machinery HMIs, and outdoor kiosks. Its 70/70/50/70 viewing angles enable clear visibility from various positions in vehicles or medical devices. With an anti-glare surface and 400cd/m² brightness, it performs well in sunlight, making it suitable for agricultural and construction applications. Its vibration resistance and 3.3 – 16V wide voltage compatibility support logistics, factory automation, and HVAC systems. The 6mm slim design allows for easy integration into portable and compact IoT devices.
7.0″ TFT LCD Display Specifications
| 7.0″ TFT LCD Display Specifications | |||
|---|---|---|---|
| 대각선 크기 | 7.0 inches | 명암비 | 500:1 |
| 해상도 | 800 × 480 pixels | 작동 온도 | -30°C to +85°C |
| 명도 | 400 cd/m² | 보관 온도 | -30°C to +85°C |
| Module Dimensions | 164.9 × 100 × 6 mm | LED 수명 | 20,000 시간 |
| 활성 영역 | 154.08 × 85.92 mm | Touchscreen | Not supported |
| Panel Type | TN (Twisted Nematic) | 전원 공급 장치 | 3.3V, 10.4V, 16.0V, -7.0V |
| Viewing Angles | 70° (U) 70° (D) 50° (R) 70° (L) |
디스플레이 기술 | 색상 TFT LCD |
| 인터페이스 | RGB | ||
사용자 지정 가능한 부품
디스플레이 케이블
필요에 따라 케이블의 길이, 위치 및 핀을 조정하거나 기능을 향상시키기 위해 추가 커넥터를 추가 할 수 있습니다.
맞춤형 유리 및 터치 스크린
모니터의 내구성과 성능을 향상시키기 위해 모니터용 커스텀 커팅 커버 유리를 선택할 수 있습니다. 자신에게 맞는 두께를 선택하고 광학 접착 방식을 선택하여 모니터를 습기와 파손으로부터 보호할 수 있습니다.
저희에게 연락하십시오 맞춤형 솔루션을 얻으려면.
