AT070TN92 General Description
Here are the key points about this Innolux AT070TN92 TN LCD Display :

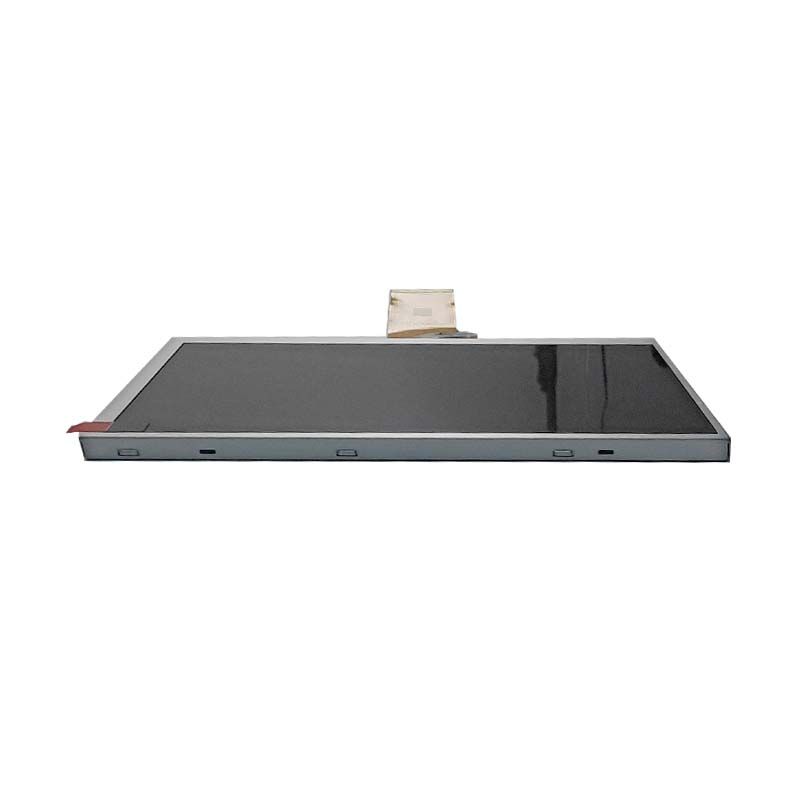

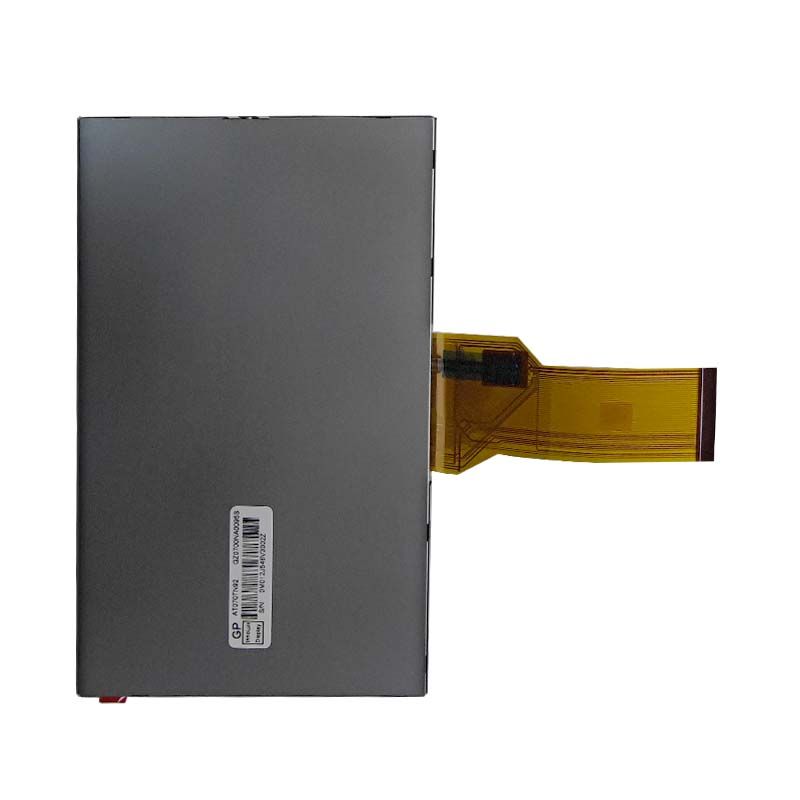

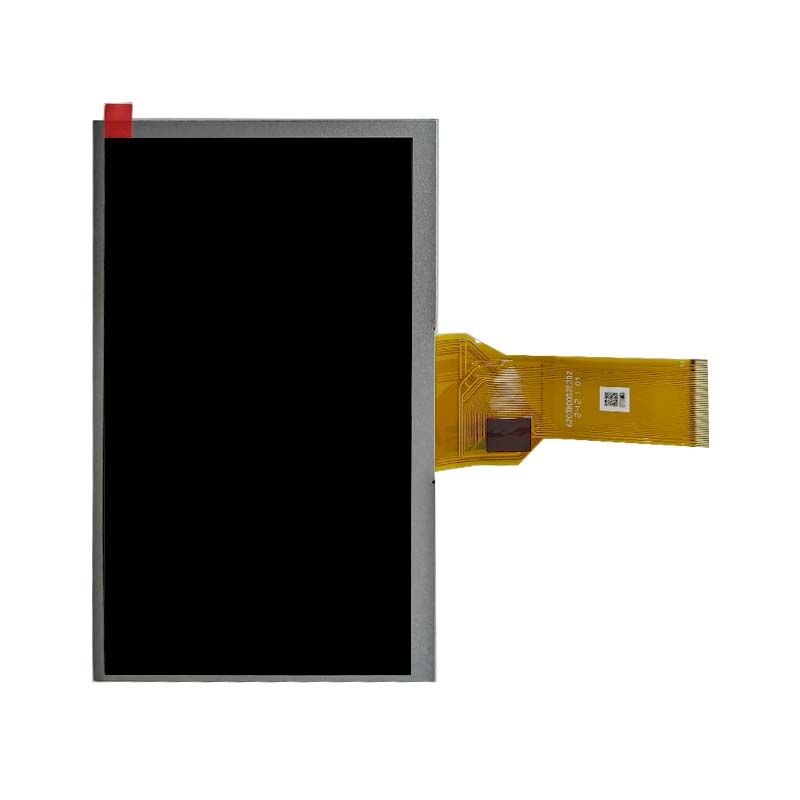

General Overview: The Innolux AT070TN92 is a 7-inch TN color LCD designed for versatile industrial integration.
Visual Performance: Features an 800:1 contrast ratio and 250 cd/m² brightness, balancing clarity with energy efficiency for low-to-moderate light environments.
Power Compatibility: Standout feature of multi-voltage compatibility (3.3V/10.4V/16V/-7V), enabling seamless adoption in hybrid power systems.
Data Transmission: Robust RGB interface ensures stable data transmission for critical operations.
Environmental Reliability: Ultra-wide temperature range (-20°C~70°C) guarantees reliability in fluctuating climates.
Physical Design: Slim 6mm profile (164.9×100×6mm) and 20,000-hour LED lifespan, engineered for long-term deployment in space-constrained, harsh-condition applications.
Innolux AT070TN92 TN LCD Display Application & Performance
Ideal for EV dashboards, warehouse automation, and renewable energy controls, the AT070TN92 offers voltage flexibility (3.3V/10.4V/16V). Its 800:1 contrast aids low-light readability (e.g., mining, logistics), while the -20°C~70°C range suits freezers and deserts. The RGB interface supports IoT gateways, 250 cd/m² brightness reduces glare in factory HMIs, and a non-touch design prevents vibration-related issues in machinery/rail systems.
7.0″ TFT LCD Display Specifications
| 7.0″ TFT LCD Display Specifications | |||
|---|---|---|---|
| 대각선 크기 | 7.0 inches | 명암비 | 800:1 |
| 해상도 | 800 × 480 pixels | 작동 온도 | -20°C to +70°C |
| 명도 | 250 cd/m² | 보관 온도 | -30°C to +80°C |
| Module Dimensions | 164.9 × 100 × 6 mm | LED 수명 | 20,000 시간 |
| 활성 영역 | 154.08 × 85.92 mm | Touchscreen | Not supported |
| Panel Type | TN (Twisted Nematic) | 전원 공급 장치 | 3.3V, 10.4V, 16.0V, -7.0V |
| Viewing Angles | 70° (U) 70° (D) 50° (R) 70° (L) |
디스플레이 기술 | 색상 TFT LCD |
| 인터페이스 | RGB | ||
사용자 지정 가능한 부품
디스플레이 케이블
필요에 따라 케이블의 길이, 위치 및 핀을 조정하거나 기능을 향상시키기 위해 추가 커넥터를 추가 할 수 있습니다.
맞춤형 유리 및 터치 스크린
모니터의 내구성과 성능을 향상시키기 위해 모니터용 커스텀 커팅 커버 유리를 선택할 수 있습니다. 자신에게 맞는 두께를 선택하고 광학 접착 방식을 선택하여 모니터를 습기와 파손으로부터 보호할 수 있습니다.
저희에게 연락하십시오 최상의 맞춤형 솔루션을 얻으려면.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
