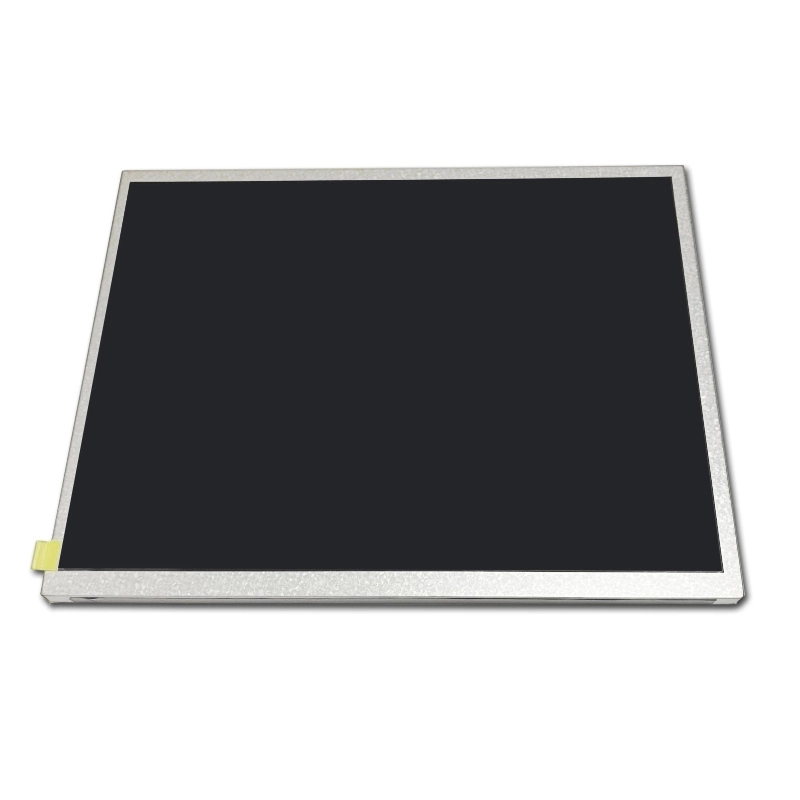

BOE 12.1 inch TFT Panel Description

Here are the key points about this BOE PV121X0M-N10 LCD Display :
BOE PV121X0M-N10 LCD Display is a 12.1-inch domestic industrial screen launched by BOE’s original factory, ensuring stable performance in industrial scenarios with original factory quality.​
The screen adopts 1024*768 resolution and 500 lumens display brightness, which can present clear images even under complex light conditions in industrial environments.​
With a side-in light source design and WLED light source, it has a minimum lifespan of 50K hours, reducing equipment maintenance frequency and adapting to the long-term operation needs of industrial equipment.​
In terms of environmental adaptability, it has an operating temperature range of -20~70℃ and a storage temperature range of -30~80℃, easily coping with extreme temperature change challenges in industrial sites.

BOE PV121X0M-N10 Application Scenarios

To meet the diversified needs of industrial equipment, we offer the screen with optional capacitive or resistive touch screens. It flexibly adapts to various industrial display devices and provides reliable display solutions for industrial control terminals, automation equipment and other scenarios.

BOE PV121X0M-N10 Specifications

BOE PV121X0M-N10 Specifications
모델 번호	PV121X0M-N10	작동 온도	-20°C to +70°C
Display Size	12.1 inch (307.3 mm)	보관 온도	-30°C to +80°C
해상도	1024 × 768 (XGA)	Backlight Lifetime	50,000 시간
Module Dimensions	260.5 × 204 × 8.7 mm	Touch Panel	Not included
활성 영역	245.76 × 184.32 mm	명암비	1200:1
명도	500 cd/m²	전원 공급 장치	3.3V ±5%
인터페이스	LVDS (Low Voltage Differential Signaling)	디스플레이 유형	색상 TFT LCD
보기 각도	Wide View (All directions)
