GV101WXM-N80 General Description

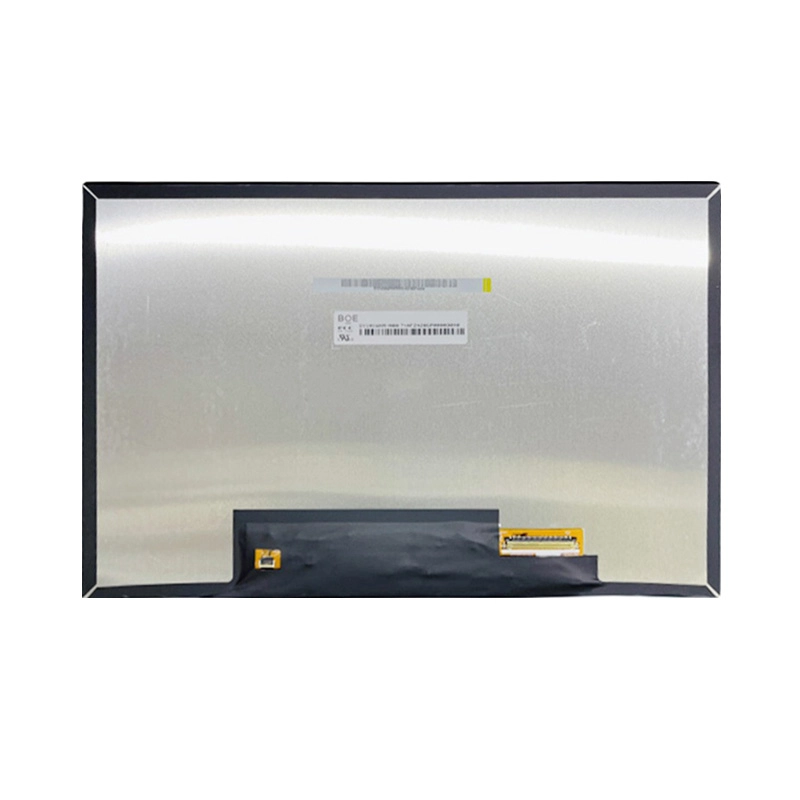

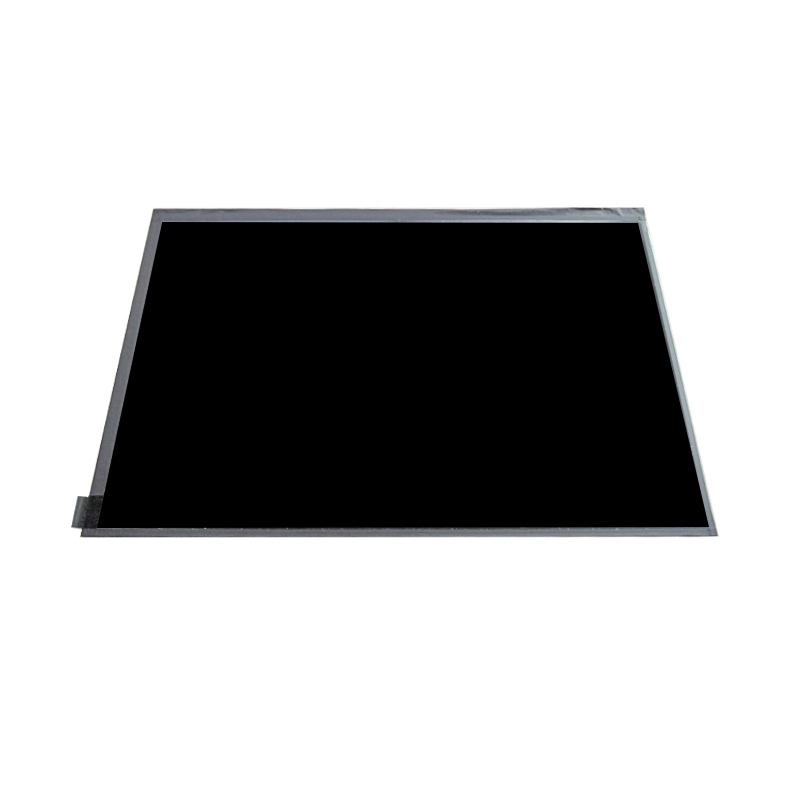

Here are the key points about this BOE GV101WXM-N80 IPS LCD Display :
The BOE GV101WXM-N80 IPS LCD Display is a 10.1-inch color LCD display designed for extreme environments.
Boasting a 1280×800 resolution and IPS technology with 85/85/85/85 viewing angles, it ensures vivid visuals from any perspective.
With an exceptional 500 cd/m² brightness and 1300:1 contrast ratio, it remains clear even in direct sunlight.
Built to withstand temperatures from -20°C to 70°C, its rugged LVDS interface guarantees stable performance in harsh conditions.
The ultra-slim 4.9mm profile (228.2×148.85mm) and lightweight design optimize space efficiency, while the 3.3V low-power operation reduces energy costs.
Engineered for longevity (30,000-hour LED lifespan), it’s ideal for mission-critical applications requiring reliability and precision.
BOE GV101WXM-N80 Application & Performance
Perfect for industrial control panels, outdoor digital signage, and transportation systems, the GV101WXM-N80 thrives in extreme settings. Its high brightness ensures readability in bright outdoor or factory environments, while the wide temperature range supports freezing warehouses or scorching solar installations. The IPS panel’s color accuracy suits medical imaging devices and aviation dashboards, and the ultra-slim design integrates seamlessly into compact machinery or portable equipment. With shock-resistant construction and LVDS signal stability, it excels in robotics, EV charging stations, and ruggedized handheld devices. Energy-efficient and durable, it minimizes downtime and maintenance costs across demanding sectors.
BOE GV101WXM-N80 Specifications
| BOE GV101WXM-N80 Specifications | |||
| 대각선 크기 | 10.1 inch (256.5 mm) | 명암비 | 1300:1 (typ.) |
| 해상도 | 1280 × 800 (WXGA) | 작동 온도 | -20°C to +70°C |
| 휘도 | 250 CD {{url_placeholder_0}} | 보관 온도 | -30°C to +80°C |
| Module Dimensions | 228.2 × 148.85 × 4.9 mm | LED 수명 | 30,000 시간 |
| 활성 영역 | 216.96 × 135.6 mm | 전원 공급 장치 | 3.3V ±5% |
| Viewing Technology | IPS (In-Plane Switching) | Touchscreen | Not included |
| Viewing Angle (U/D/R/L) | 85°/85°/85°/85° | 디스플레이 유형 | 색상 TFT LCD |
| 인터페이스 | LVDS (2 ch, 8-bit) | ||
사용자 지정 가능한 부품
디스플레이 케이블
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
맞춤형 유리 및 터치 스크린
모니터의 내구성과 성능을 향상시키기 위해 모니터용 커스텀 커팅 커버 유리를 선택할 수 있습니다. 자신에게 맞는 두께를 선택하고 광학 접착 방식을 선택하여 모니터를 습기와 파손으로부터 보호할 수 있습니다.
저희에게 연락하십시오 최상의 맞춤형 솔루션을 얻으려면.
