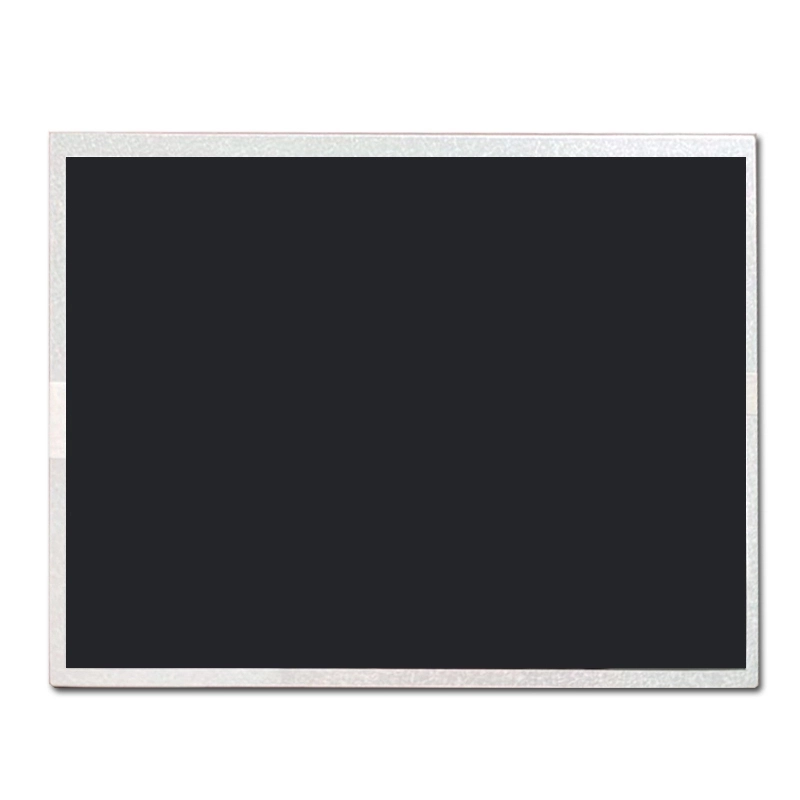

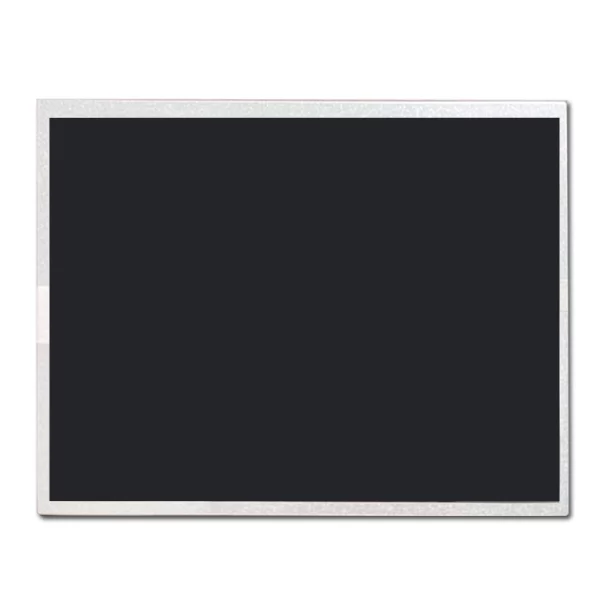

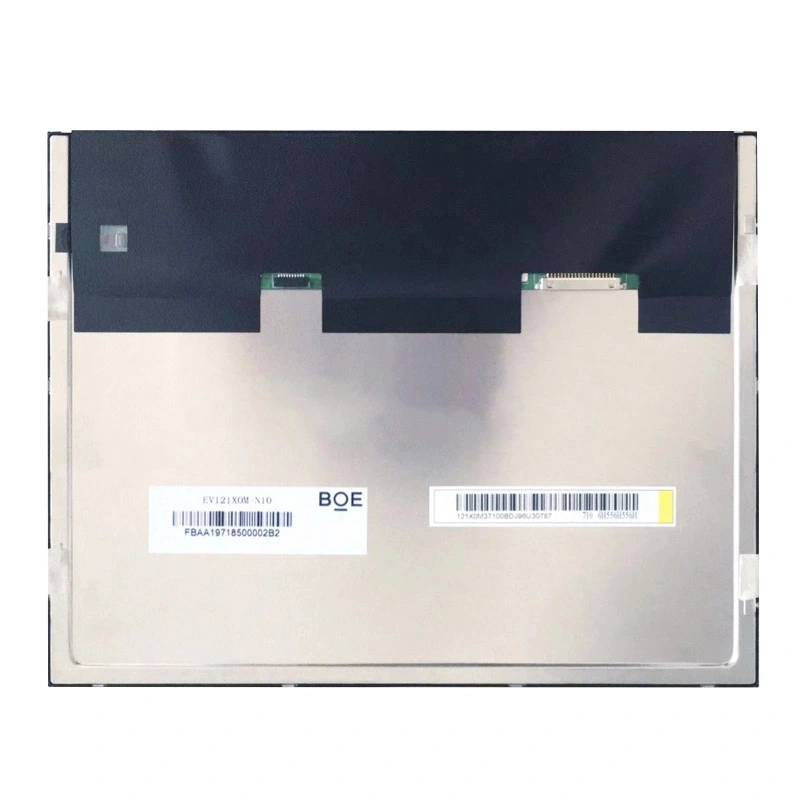

BOE EV121X0M-N10 TFT Display Description
Here are the key points about this BOE EV121X0M-N10 LCD Display :
Brand & Model: BOE EV121X0M-N10 LCD Display (Industrial & Medical Module)
Screen Specifications: 12.1-inch 4:3, XGA (1024×768) resolution, a-Si TFT-LCD (ADS transmissive, normally black display), wide-view hard screen
Performance Features: 500nit brightness, 178° wide viewing angle, LVDS signal protocol + IPS anti-interference architecture, white LED backlight (50,000-hour lifespan), supports omnidirectional flipping
Environmental Adaptability: -20~70℃ operating temperature, 1.5G vibration resistance, RoHS certified
BOE EV121X0M-N10 Application Scenarios
- Medical Imaging Equipment: Precisely displays details of X-rays, CT scans, etc., wide temperature adaptation to hospital environments, safe and compliant
- Industrial Precision Instruments: Vibration and temperature resistant, stably feeds back equipment parameters, ensuring efficient production
- Outdoor/High-vibration Scenarios: Suitable for strong light and extreme environments such as intelligent logistics, vehicle-mounted consoles, and power station monitoring
BOE EV121X0M-N10 Specifications
| BOE EV121X0M-N10 Specifications | |||
| 모델 번호 | EV121X0M-N10 | 작동 온도 | -20°C to +70°C |
| Display Size | 12.1 inch (307.3 mm) | 보관 온도 | -30°C to +80°C |
| 해상도 | 1024 × 768 (XGA) | Backlight Lifetime | 50,000 시간 |
| Module Dimensions | 260.5 × 204 × 8.7 mm | Touch Panel | Not included |
| 활성 영역 | 245.76 × 184.32 mm | 명암비 | 1200:1 |
| 명도 | 500 cd/m² (typical) | 전원 공급 장치 | 3.3V ±5% |
| 인터페이스 | LVDS (2 channel, 6-bit) | 디스플레이 유형 | 색상 TFT LCD |
| 보기 각도 | 85°/85°/85°/85° (L/R/U/D) | ||
사용자 지정 가능한 부품
디스플레이 케이블
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
맞춤형 유리 및 터치 스크린
모니터의 내구성과 성능을 향상시키기 위해 모니터용 커스텀 커팅 커버 유리를 선택할 수 있습니다. 자신에게 맞는 두께를 선택하고 광학 접착 방식을 선택하여 모니터를 습기와 파손으로부터 보호할 수 있습니다.
저희에게 연락하십시오 최상의 맞춤형 솔루션을 얻으려면.
