Round TFT Display 23.6 inch Description

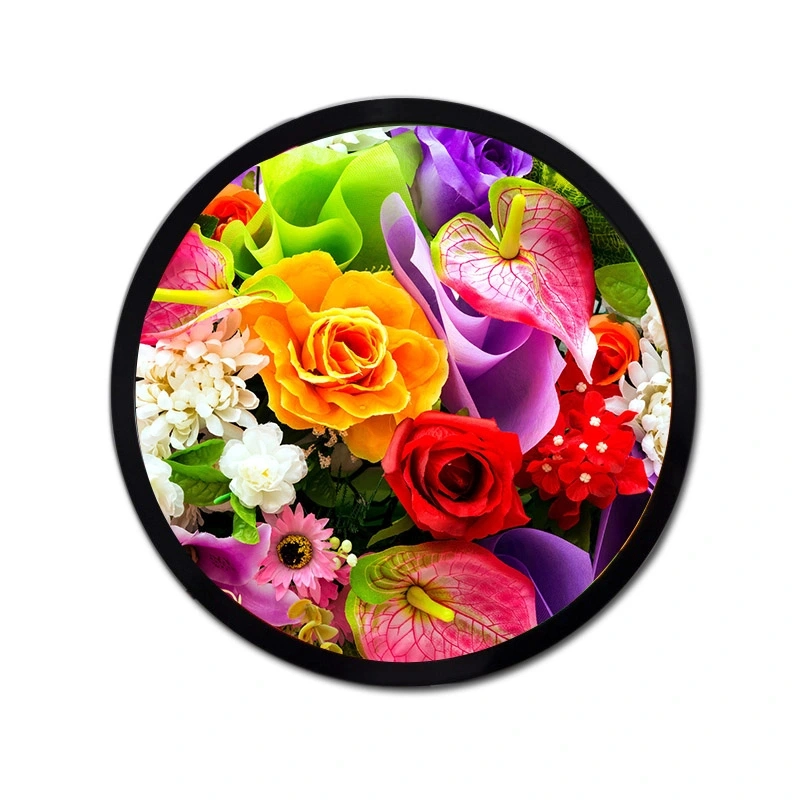

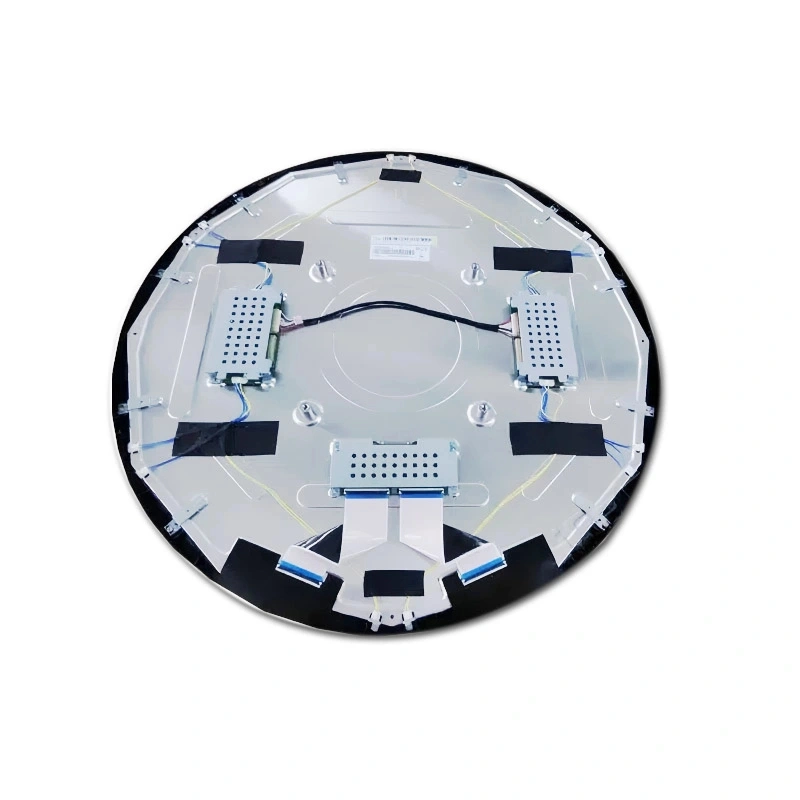

Here are the key points about this BOE DV236FBM-N00 Round TFT Display :
This BOE DV236FBM-N00 Round TFT Display features an extra-large 23.6 inch size, with a resolution of 1280×1280 and 1500nits high brightness, making it ideal for both indoor and outdoor advertising players.
Our Advantages:
Shipments in original BOE packaging, with guaranteed quality;
We act as a distributor of original screens, operating on very thin profit margins and offering affordable prices;
With our own TFT factory, we can easily handle after-sales issues;
Equipped with our own R&D team, we can match touch driver solutions.
23.6″ LCD Display Specifications
| 23.6″ LCD Display Specifications | |||
| 모델 번호 | DV236FBM-N00 | 작동 온도 | 0 ℃ ~ 50 50 |
| Display Size | 23.6 inch | 보관 온도 | -20 ℃ ~ 60 ℃ |
| 해상도 | 1280 × 1280 (1:1 aspect ratio) | LED 수명 | 30,000 시간 |
| Dimensions (W×H×D) | 657 × 657 × 29.15 mm | Touchscreen | Not supported |
| 활성 영역 | 599.424 × 599.424 mm | 명암비 | 1000:1 |
| 명도 | 1500 cd/m² | Power Input | 12V DC |
| 인터페이스 | LVD (30 핀) | 디스플레이 기술 | Color IPS LCD |
| 보기 각도 | IPS (178°/178°) | ||
사용자 지정 가능한 부품
디스플레이 케이블
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
맞춤형 유리 및 터치 스크린
모니터의 내구성과 성능을 향상시키기 위해 모니터용 커스텀 커팅 커버 유리를 선택할 수 있습니다. 자신에게 맞는 두께를 선택하고 광학 접착 방식을 선택하여 모니터를 습기와 파손으로부터 보호할 수 있습니다.
저희에게 연락하십시오 최상의 맞춤형 솔루션을 얻으려면.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
