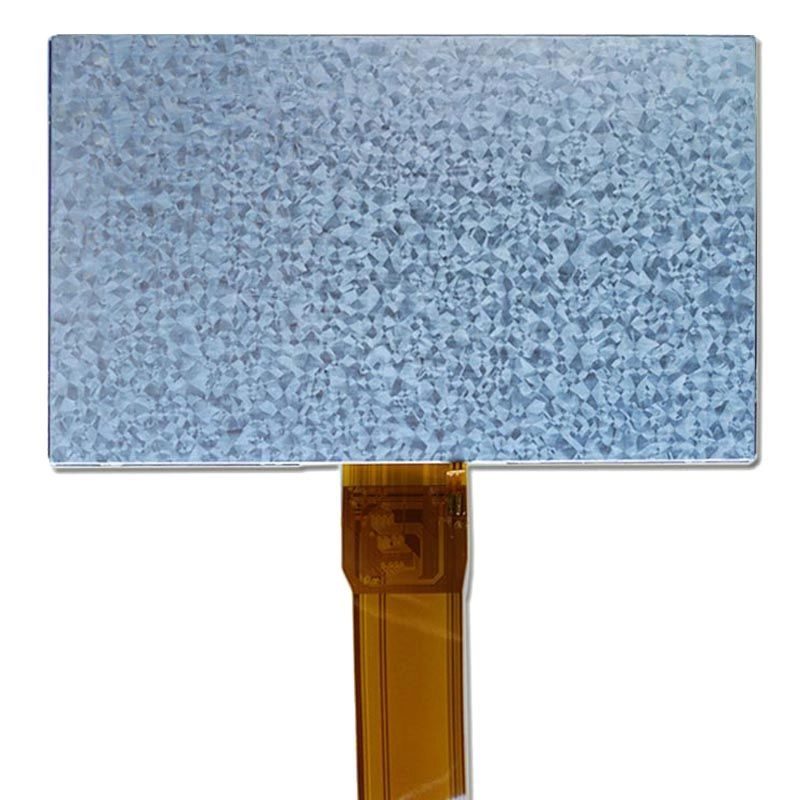

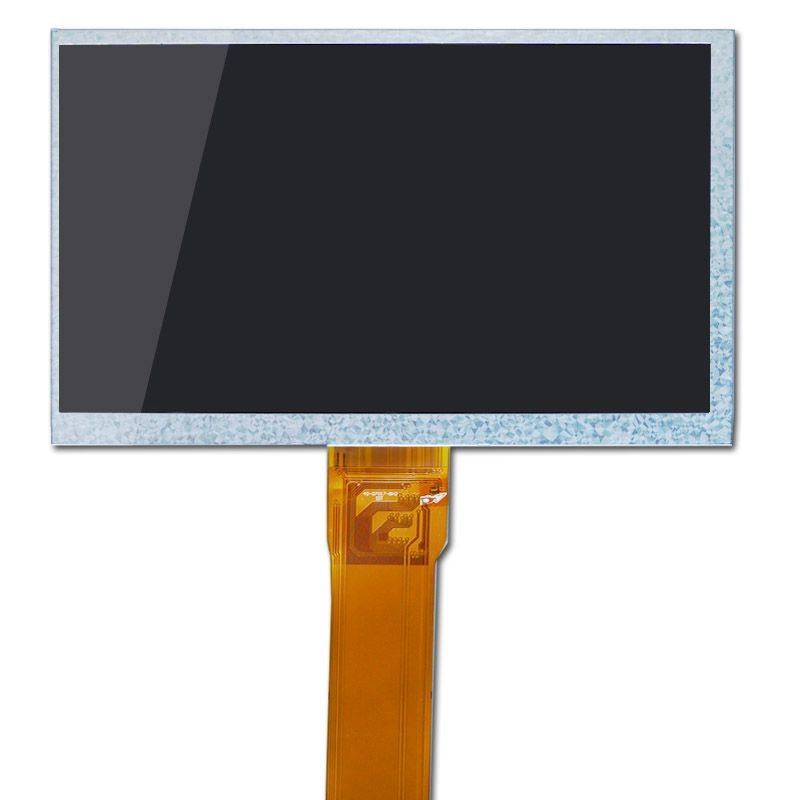

7 inch Sunlight Readable Display Features
Here are the key points about this 7 inch Sunlight Readable Display :
- Resolution: 800×480 (RGB) in Normally White, Transmissive display mode.
- Dot Pitch: 0.0642mm (width) × 0.1790mm (height).
- Active Display Area: 154.08mm (width) × 85.92mm (height).
- Module Size: 164.9mm (width) × 100.0mm (height) × 5.7mm (depth).
- Surface Treatment: Anti-glare coating for improved visibility.
- Color Arrangement: Follows an RGB-stripe pattern.
- Connectivity: Utilizes a digital interface.
- Power Consumption:Backlight: 2.322W (typical).Panel: 0.226W (typical).
- Weight: 150g (typical).
Our strengths
With over 10 years of experience as a dedicated LCD manufacturer, we specialize in delivering tailored TFT solutions for diverse applications—from industrial equipment to consumer electronics.
We understand the needs of small and medium-sized businesses. That’s why we offer low minimum order quantities (MOQs) and seamless support for small batches, empowering you to prototype, test, and launch products without excessive inventory risks.
Whether you need a cost-effective entry-level display or a high-performance premium screen, our team designs customized TFT solutions to match your budge
Advanced testing equipment (AOI, high-temperature aging chambers, etc.) ensures reliability in extreme environments.
A team of seasoned quality supervisors oversees production to meet international standards.
Backed by a 1-year quality warranty, we guarantee long-term performance and peace of mind.
| 7″ TFT-LCD Product Specifications | |||
|---|---|---|---|
| 모델 번호 | ZDX070TNCP50-DB10 | 작동 온도 | -30°C to +85°C |
| 크기 | 7 inches | 보관 온도 | -30°C to +85°C |
| 해상도 | 800 × 480 pixels | LED 수명 | 20,000 시간 |
| 개요 차원 | 164.9 × 100.0 × 5.7 mm | Touchscreen | Not included |
| 활성 영역 | 154.08 × 85.92 mm | 명암비 | 500:1 |
| 명도 | 1000 CD {{url_placeholder_0}} | 전원 공급 장치 | 3.3V |
| 인터페이스 | RGB | 디스플레이 유형 | 컬러 TFT-LCD |
| Viewing Angles | 70° (U) 70° (D) 50° (R) 70° (L) |
||
사용자 지정 가능한 부품
디스플레이 케이블
필요에 따라 케이블의 길이, 위치 및 핀을 조정하거나 기능을 향상시키기 위해 추가 커넥터를 추가 할 수 있습니다.
맞춤형 유리 및 터치 스크린
모니터의 내구성과 성능을 향상시키기 위해 모니터용 커스텀 커팅 커버 유리를 선택할 수 있습니다. 자신에게 맞는 두께를 선택하고 광학 접착 방식을 선택하여 모니터를 습기와 파손으로부터 보호할 수 있습니다.
저희에게 연락하십시오 최상의 맞춤형 솔루션을 얻으려면.
