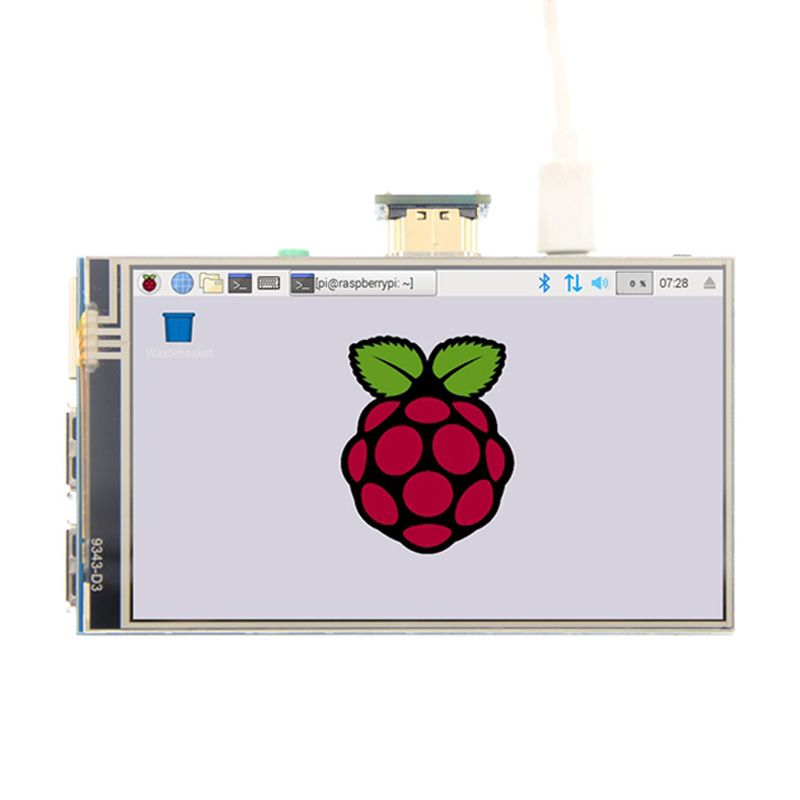

4″ Resistive Touch Panel with raspberry pi Introduction
Here are the key points about this 4 inch Resistive Touch Panel for Raspberry PI :
Supports HDMI input, refresh rate up to 60FPS
Physical resolution 480×800 , resistive touch screen

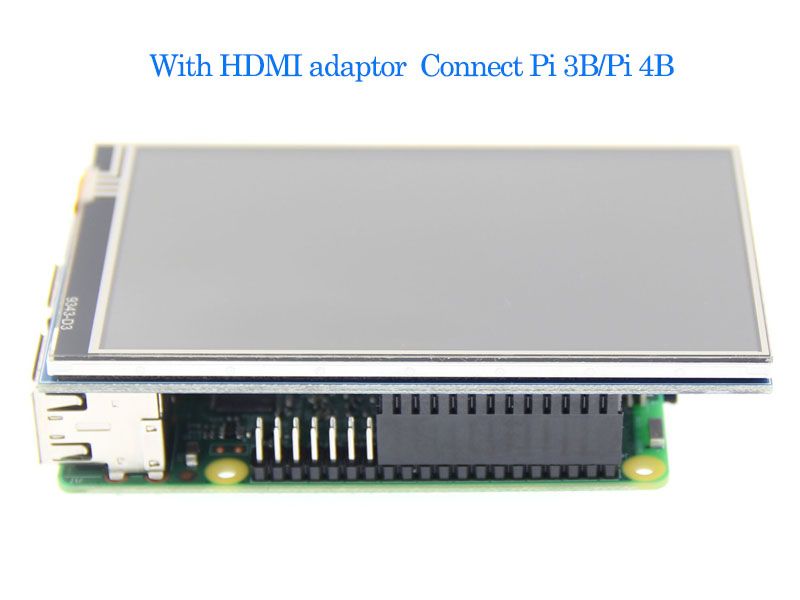

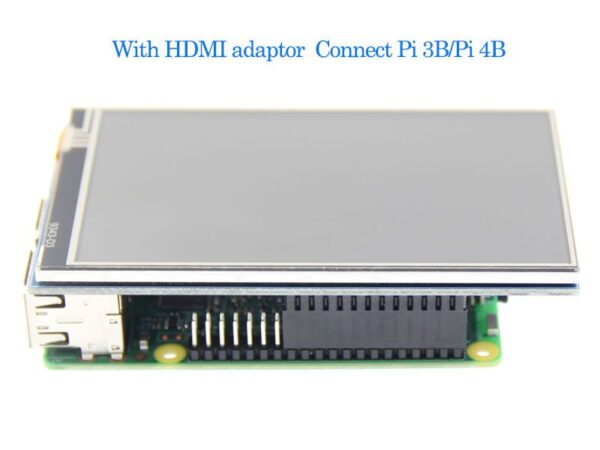

Directly inserted into all versions of Raspberry Pi motherboards (Raspberry Pi 1st generation B and Zero require an additional HDMI cable)

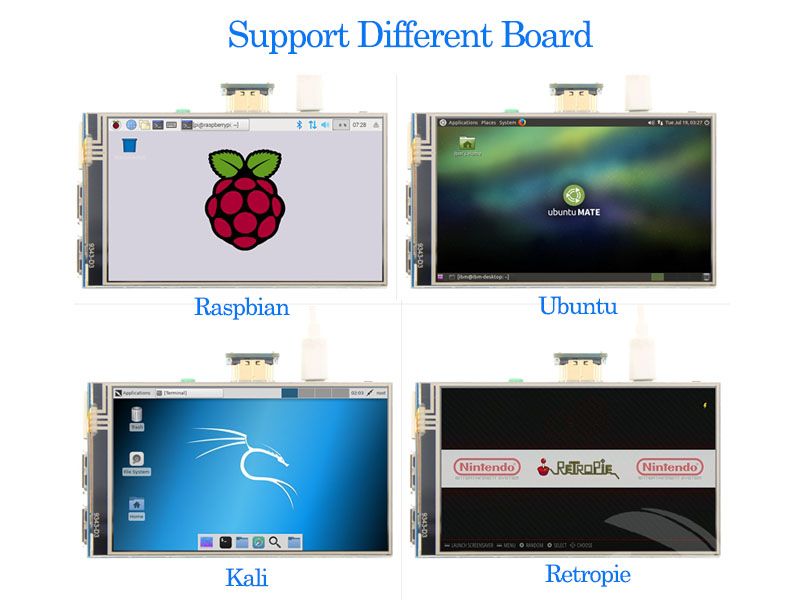

Driver provided (supports Raspbian / Ubuntu-mate / Kali / Retropie system)
Installed a touch driver, it can be used as a Raspberry Pi display with touch control function
Connect with an additional HDMI cable, it can be used as a computer monitor without touch function
With 3.5mm audio interface, supports HDMI audio output, adjustable backlight
4″ Raspberry Pi Touch Screen Key Parameters
| 4″ Raspberry Pi Touch Screen Key Parameters | |||
| Size(inch) | 4 | Module power | 0.16A*5V |

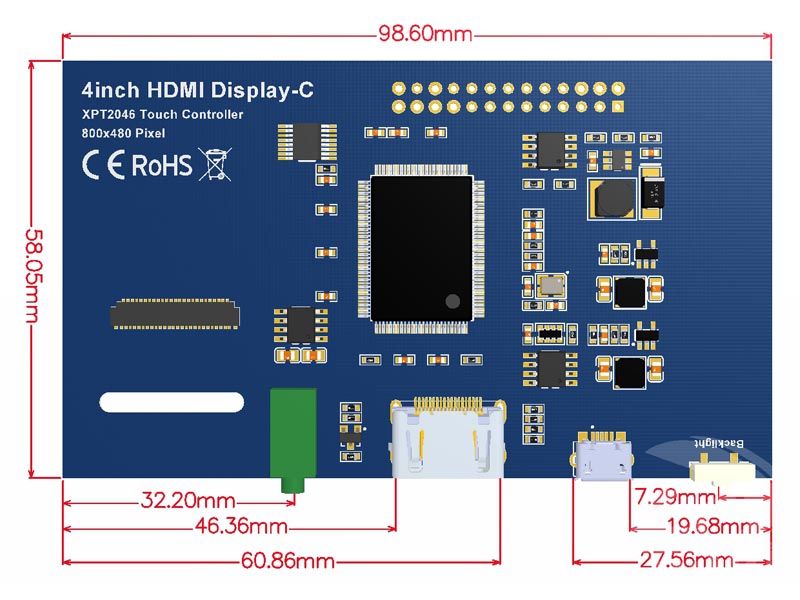

| Resolution(pixels) | 800*480 | Module size(mm) | 98.60*58.05 |
| Display material | IPS TFT panel | Packaging size(mm) | 143*134*51 |
| 만지다 | GPIO Resitive touch | Product weight(g) | 126 |
4 inch Resistive Touch Panel for Raspberry PI Button& Interface Note

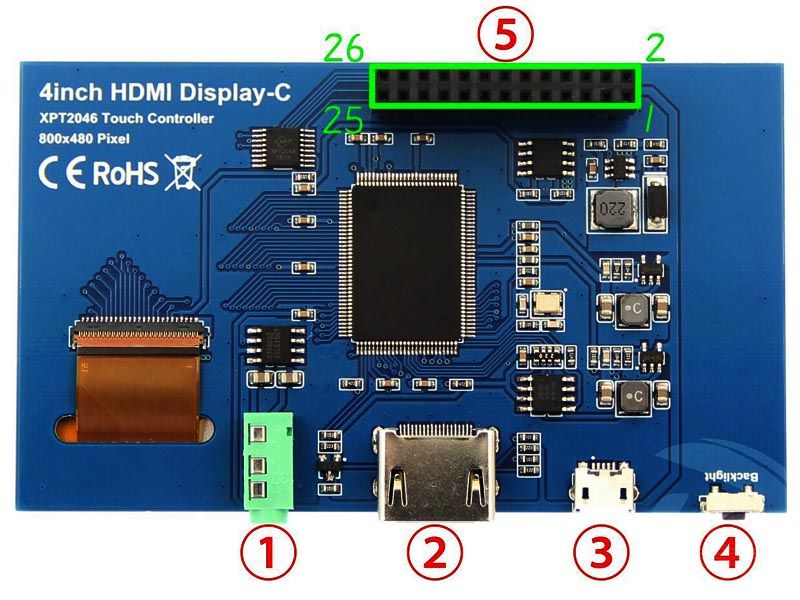

Button& Interface Note
① Headphone interface HDMI audio output interface
② HDMI interface HDMI signal input interface
③ USB power supply interface Provides power when used as a normal display (5V 1A)
④ Backlight button Backlight brightness adjustment button, short press to change the backlight by 10%, long press for a few seconds to turn off the backlight
⑤ Raspberry Pi 26PIN mother socket Get power and return touch data from here when used as a Raspberry Pi display
미키디스플레이 TFT LCD 디스플레이 밝은 이미지, 빠른 애니메이션, 복잡한 그래픽, 사용자 정의 글꼴 및 다양한 터치스크린 옵션을 보여줄 수 있는 생생한 풀컬러 시각 효과를 제공합니다. HDMI, SPI, LVDS, MIPI, RGB 및 EDP와 같은 다양한 인터페이스 옵션을 지원합니다.
이 디스플레이는 업계 표준 크기 및 해상도를 특징으로합니다.
