2 inch high brightness display
Here are the key points about this 2 inch MCU/RGB TFT LCD :
This 2 inch MCU/RGB TFT LCD features a resolution of 240 x 320 pixels, delivering sharp and vibrant visuals.
With a viewing angle of 180° in all directions, it ensures consistent image quality from various perspectives.

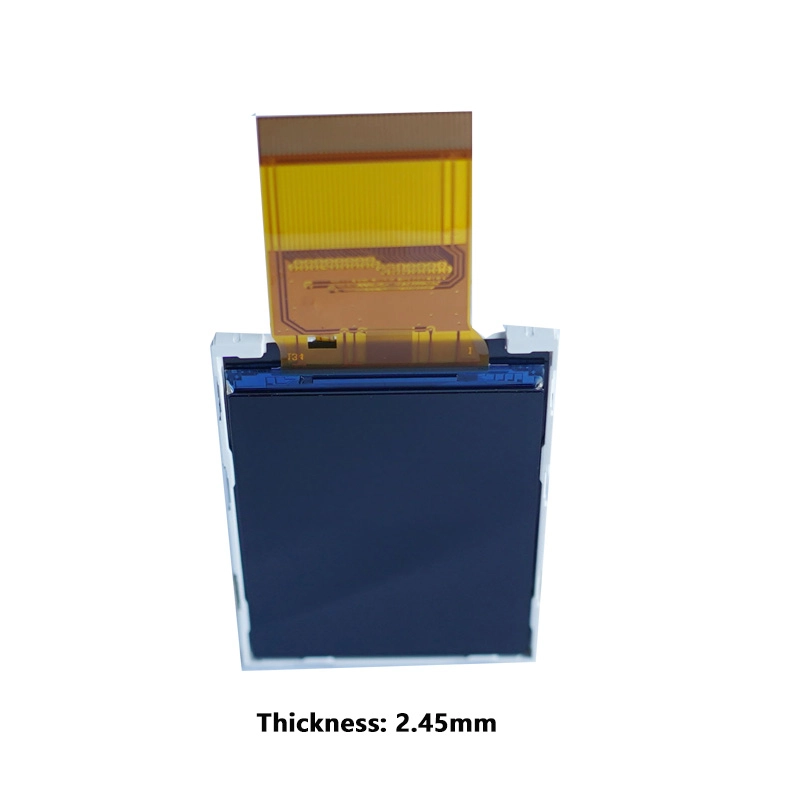

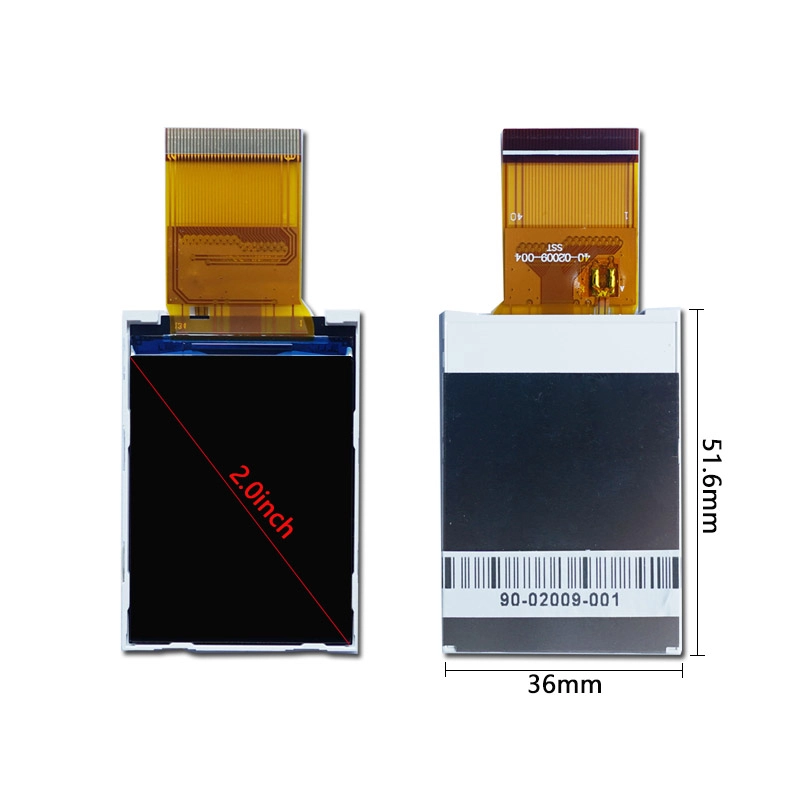

The active area measures 30.6 mm x 40.8 mm, while the overall dimensions are 36 mm x 51.6 mm x 2.45 mm, making it an excellent choice for a variety of compact applications. For instance:
- Wearable Devices: Perfect for smartwatches and fitness trackers where space is limited.
- Embedded Systems: Suitable for portable electronic devices that require reliable visual output.
- Consumer Electronics: A great choice for small gadgets and devices needing effective displays.
2.0 inch RGB LCD Display with 40-pin FFC ZIF Connection
Interface Compatibility: The 2-inch high brightness display incorporates a 40-pin FFC ZIF (Flexible Flat Cable, Zero Insertion Force) connection, facilitating a secure and reliable electrical connection.
This interface not only simplifies integration with various microcontrollers but also enhances data transfer efficiency.
The ZIF connection ensures easy installation and reduces the risk of damage during setup, allowing for quick and hassle-free connections.
Additionally, the MCU / RGB interface enables fast communication, ensuring smooth data transfer and real-time updates for an enhanced user experience.
2″ TFT-LCD Specifications
| 2″ TFT-LCD Specifications | |||
| 모델 번호 | 90-02009-001 | 작동 온도 | -20~70 |
| 크기 | 2 | 보관 온도 | -30~80 |
| 해상도 | 240*320 | LED 수명 | 20000 |
| 개요 차원 | 36*51.6*2.45 | 터치스크린 지원 | 없이 |
| 활성 영역 | 30.6*40.8 | 명암비 | 800:01:00 |
| 밝기(cd/m²) | 600 | 전원 공급 장치 | 3.3V |
| 인터페이스 | MCU/RGB | 디스플레이 유형 | 컬러 LCD |
| 방향 보기 | 모두 | ||
사용자 지정 가능한 부품
디스플레이 케이블
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
맞춤형 유리 및 터치 스크린
모니터의 내구성과 성능을 향상시키기 위해 모니터용 커스텀 커팅 커버 유리를 선택할 수 있습니다. 자신에게 맞는 두께를 선택하고 광학 접착 방식을 선택하여 모니터를 습기와 파손으로부터 보호할 수 있습니다.
저희에게 연락하십시오 최상의 맞춤형 솔루션을 얻으려면.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
