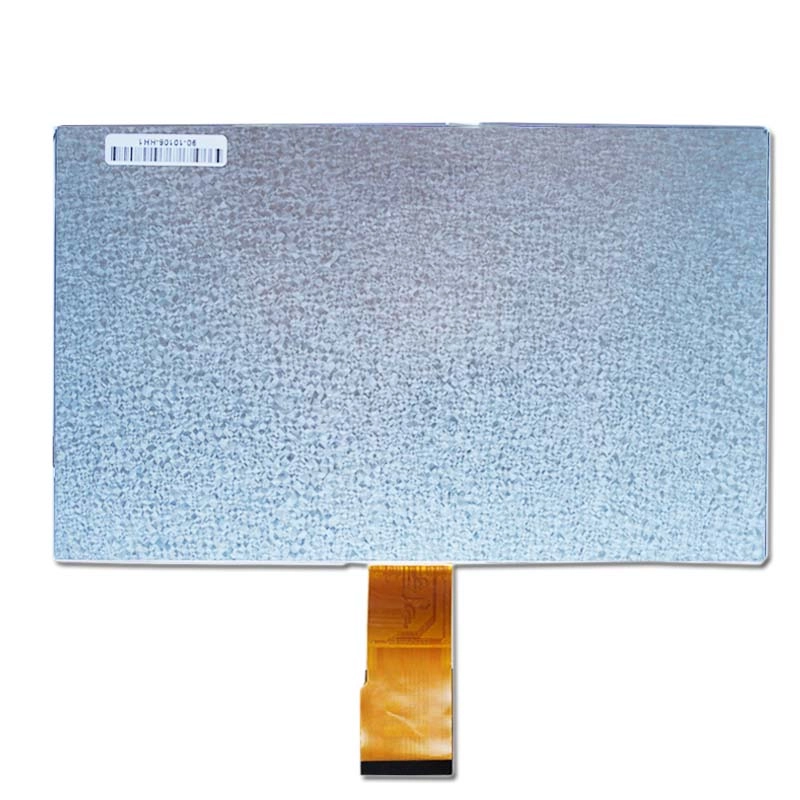

10.1″ TFT Display Panel Features
Here are the key points about this 10.1 inch Industrial TFT LCD :
This 10.1 inch Industrial TFT LCD has wide viewing angles of 80°/80°/80°/80° (RLUD), ensuring that the screen remains visible and color-accurate from all directions.
It supports all viewing directions, making it ideal for multi-user environments or installations where the display may be viewed from different angles.
The LVDS 60 interface provides high-speed data transmission for seamless communication with host devices.

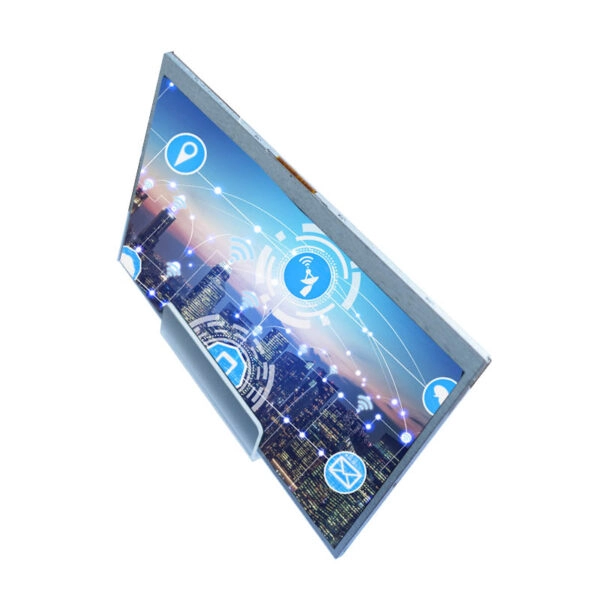

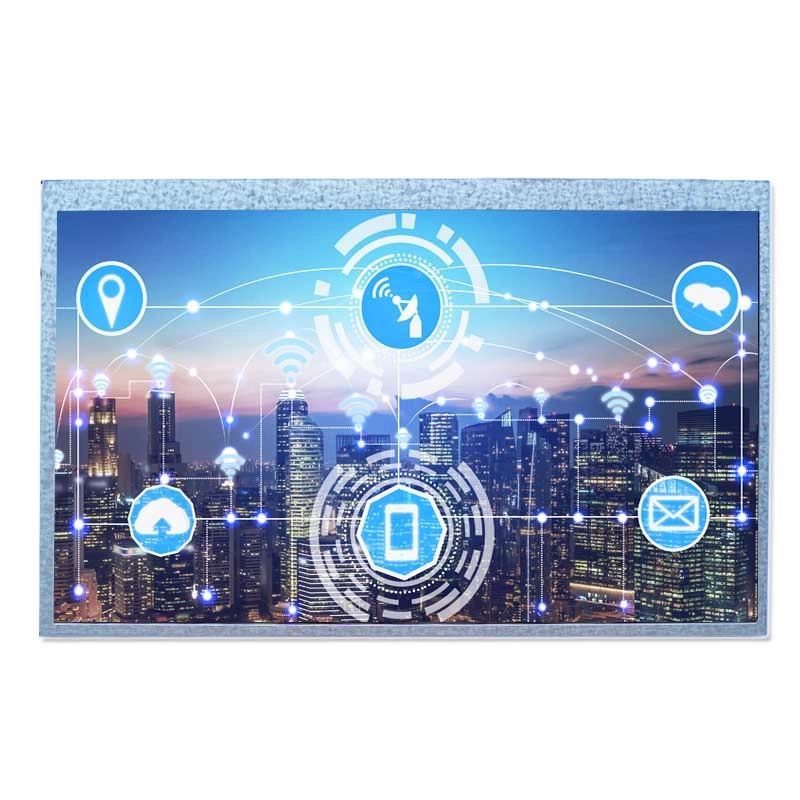

10.1″ TFT Panel with High Contrast Ratio
The contrast ratio, which measures the difference in light intensity between the brightest white and the darkest black a display can produce, is a key factor in visual quality. A 1000:1 contrast ratio ensures sharp images and well-defined details, creating more vivid and striking visuals.. This level of contrast is particularly effective for applications requiring clarity, such as medical imaging and graphical displays, where accurate representation of details is crucial.
10.1″ TFT-LCD Specifications
| 10.1″ TFT-LCD Display Specifications | |||
| 모델 번호 | 90-10106-HH1 | 작동 온도 | -20℃ to +70℃ |
| Display Size | 10.1″ (diagonal) | 보관 온도 | -30℃ to +80℃ |
| 해상도 | 1280 × 600 (WXGA) | Backlight Lifetime | 20,000 시간 |

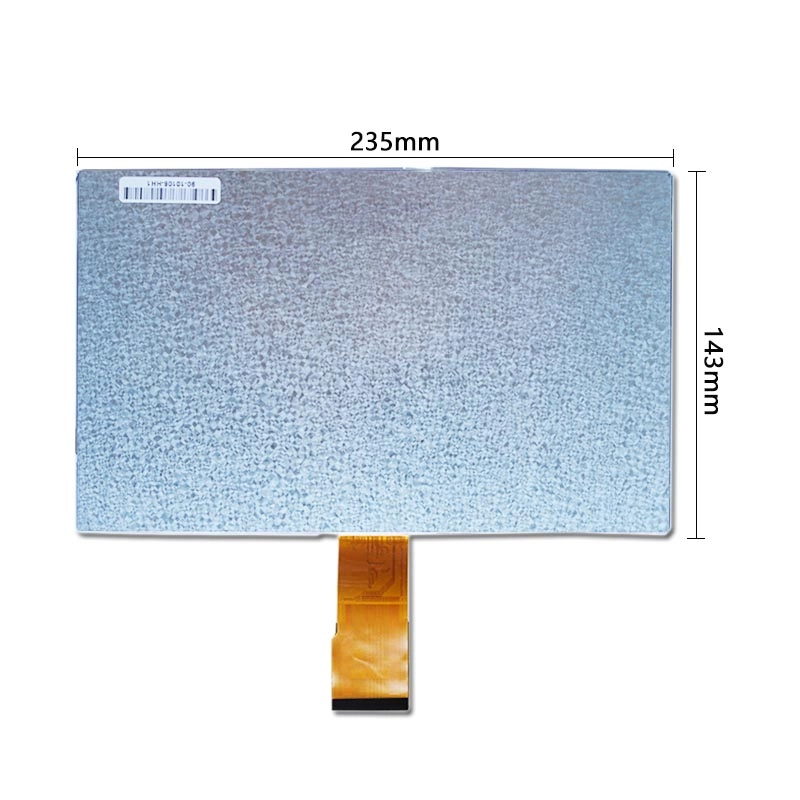

| Module Dimensions | 235.0 × 143.0 × 4.5 mm | Touchscreen | Not included |
| 활성 영역 | 222.72 × 125.28 mm | 명암비 | 1000:1 |
| 명도 | 300 cd/m² (typical) | 전원 공급 장치 | 3.3V DC ±5% |
| 인터페이스 | LVDS (1-channel) | 디스플레이 유형 | 컬러 TFT-LCD |
| 보기 각도 | 80°/80°/80°/80° (L/R/U/D) | 종횡비 | 16:9 (wide) |
사용자 지정 가능한 부품
디스플레이 케이블
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
맞춤형 유리 및 터치 스크린
모니터의 내구성과 성능을 향상시키기 위해 모니터용 커스텀 커팅 커버 유리를 선택할 수 있습니다. 자신에게 맞는 두께를 선택하고 광학 접착 방식을 선택하여 모니터를 습기와 파손으로부터 보호할 수 있습니다.
저희에게 연락하십시오 최상의 맞춤형 솔루션을 얻으려면.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
