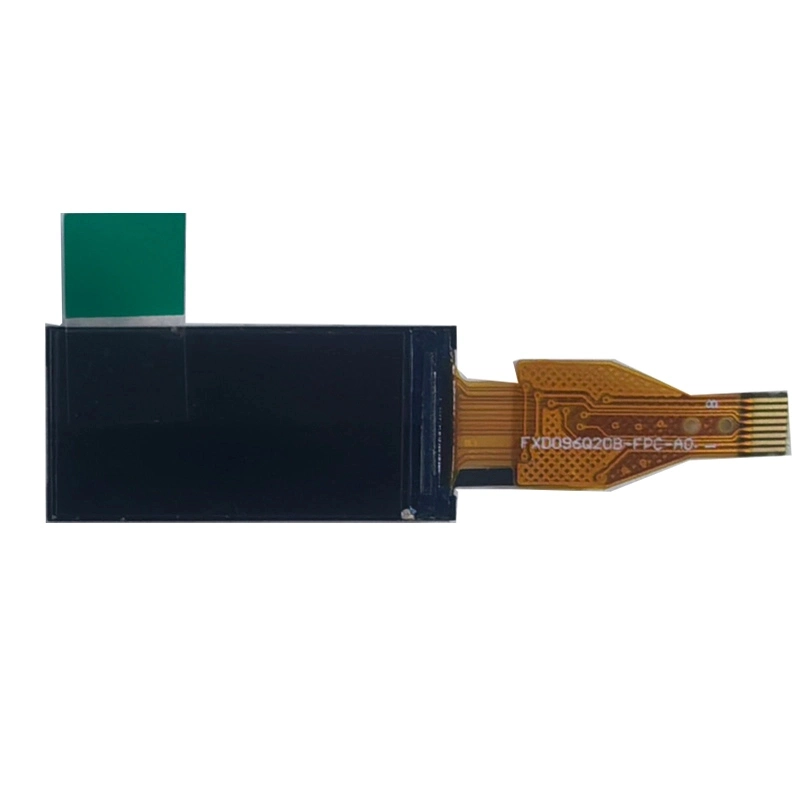

0.96 inch TFT Display Product Description
Here are the key points about this 0.96 inch TFT LCD for Smart Home :

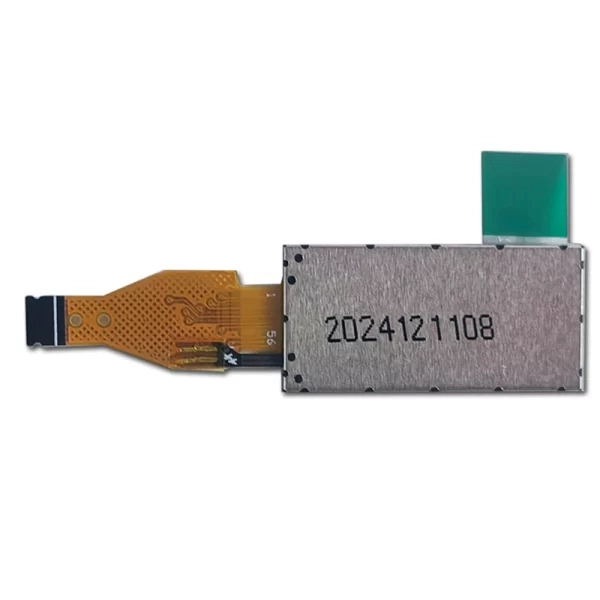

Featuring a tiny 0.96 inch TFT LCD for Smart Home form factor, this TFT LCD delivers 400nits high brightness—clear and readable even under direct sunlight.
Its IPS wide viewing angle technology ensures consistent clarity from any perspective.
The -20°C to 70°C operating temperature range meets industrial-grade reliability standards.
Perfect for smart home applications, it balances durability with space-saving design.
Below the basic parameters for it, Tailor the interface (SPI/MCU), brightness, dimensions, and touch solutions (capacitive/resistive) to seamlessly integrate into your device—engineered for hassle-free system integration.
0.96″ TFT-LCD Specifications
| 0.96″ TFT-LCD with Capacitive Touch | |||
| 모델 번호 | GX-T096-C08 | 작동 온도 | -20℃ to +70℃ |
| Display Size | 0.96″ (diagonal) | 보관 온도 | -30℃ to +80℃ |
| 해상도 | 80 × 160 (RGB) | Backlight Lifetime | 20,000 시간 |
| Module Dimensions | 13.5 × 27.95 × 1.5 mm | Touchscreen | Capacitive (single-touch) |
| 활성 영역 | 10.8 × 21.7 mm | 명암비 | 1000:1 |
| 명도 | 400 cd/m² (typical) | 전원 공급 장치 | 3.0V DC ±10% |
| 인터페이스 | 4-wire SPI | 디스플레이 유형 | TFT Color LCD |
| 보기 각도 | 70°/70°/70°/70° (L/R/U/D) | 종횡비 | 1:2 |
사용자 지정 가능한 부품
디스플레이 케이블
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
맞춤형 유리 및 터치 스크린
모니터의 내구성과 성능을 향상시키기 위해 모니터용 커스텀 커팅 커버 유리를 선택할 수 있습니다. 자신에게 맞는 두께를 선택하고 광학 접착 방식을 선택하여 모니터를 습기와 파손으로부터 보호할 수 있습니다.
저희에게 연락하십시오 최상의 맞춤형 솔루션을 얻으려면.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
