TM101DDHG01-00 General Description
Here are the key points about this TIANMA TM101DDHG01-00 Industrial LCD :

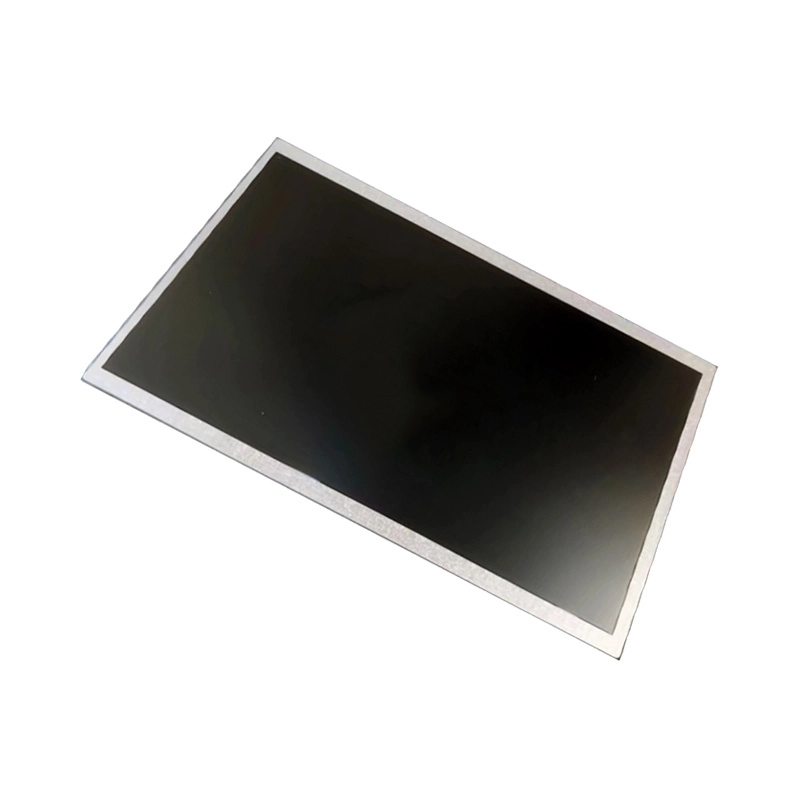

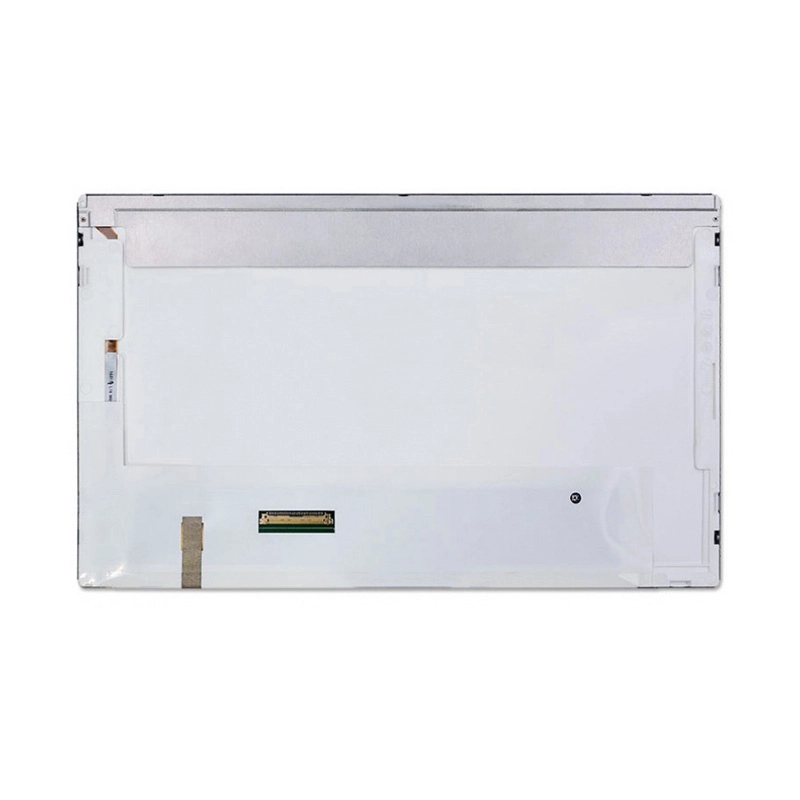

The TIANMA TM101DDHG01-00 is a 10.1-inch TN color LCD module featuring 1024×600 resolution and 450 cd/m² ultra-high brightness, ideal for outdoor and industrial systems requiring sunlight readability.
With an 800:1 contrast ratio and 80/80/75/80 viewing angles, it delivers sharper visuals than standard TN panels.
The LVDS interface ensures stable signal transmission for modern control systems, while its 3.3V low-power design reduces energy consumption.
Built for extreme conditions, it operates in -20°C to 70°C and stores in -30°C to 80°C, backed by a 30,000-hour LED lifespan.
The slim 235×143×5.4mm profile suits space-sensitive installations, maintaining clarity in high-glare environments.
TIANMA TM101DDHG01-00 Industrial LCD Application & Performance
Designed for airport information displays, construction equipment HMIs, and outdoor digital signage, this display excels in direct sunlight for solar farm monitors and EV charging stations. Its 450 cd/m² brightness ensures visibility in desert logistics terminals and maritime navigation panels. The wide temperature range supports arctic oilfield sensors and freezer warehouse controls, while the LVDS interface integrates with modern PLCs in smart factory dashboards and robotic control systems. The enhanced contrast ratio suits medical imaging devices and aviation cockpit displays. Ideal for public transportation ticketing kiosks, mining equipment interfaces, and smart city traffic systems requiring durability and clarity.
TIANMA TM101DDHG01-00 Specifications
| TIANMA TM101DDHG01-00 Specifications | |||
| 斜めのサイズ | 10.1インチ | コントラスト比 | 800:01:00 |
| ピクセル番号 | 1024×600 | 動作温度 | -20 ~ 70 °C |
| 輝度 | 450 | 保存温度 | -30 ~ 80 °C |
| モジュールサイズ | 235×143×5.4 | LED寿命 | 30000 |
| 活動エリア | 222.72×125.28 | タッチスクリーン対応 | なし |
| 視聴方向 | TN | 電源 | 3.3V |
| View Angle(U/D/R/L) | 80/80/75/80 | ディスプレイタイプ | 色TFT |
| インターフェース | LVDS | ||
カスタマイズ可能なパーツ
ディスプレイケーブル
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
カスタマイズされたガラスとタッチスクリーン
モニターの耐久性と性能を向上させるために、モニター用のカスタムカットカバーガラスを選択することができます。自分に合った厚さを選択し、光学接着方式を選ぶことで、湿気や破損からモニターを保護することができる。
お問い合わせ 最適なカスタマイズされたソリューションを取得します。
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
