LW700AT9309 Innolux LCD Panel 一般 説明
Here are the key poin (インチ)ts about this Innolux LW700AT9309 TFT LCD Display :

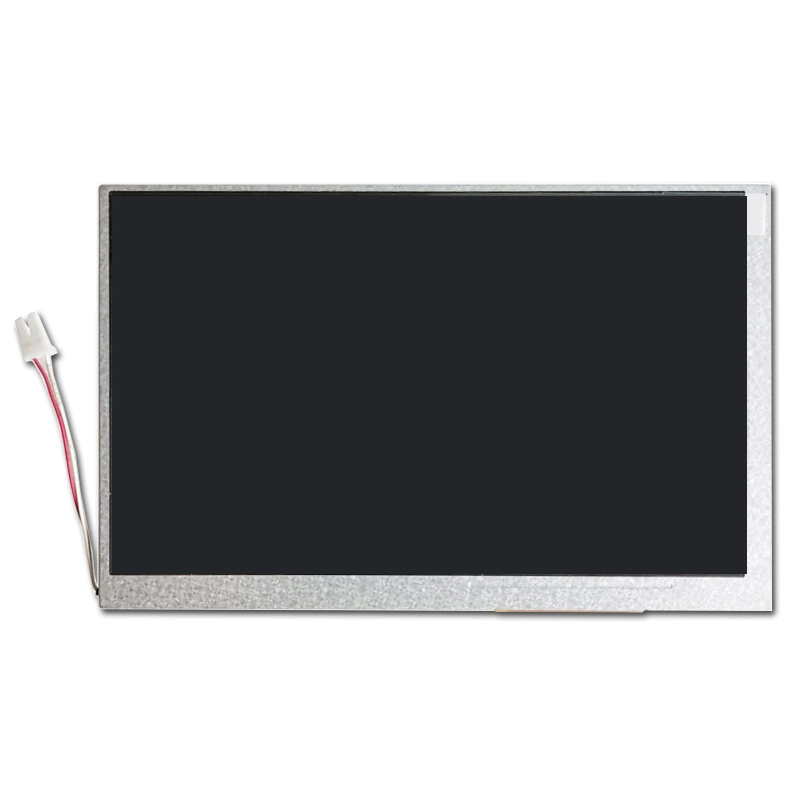

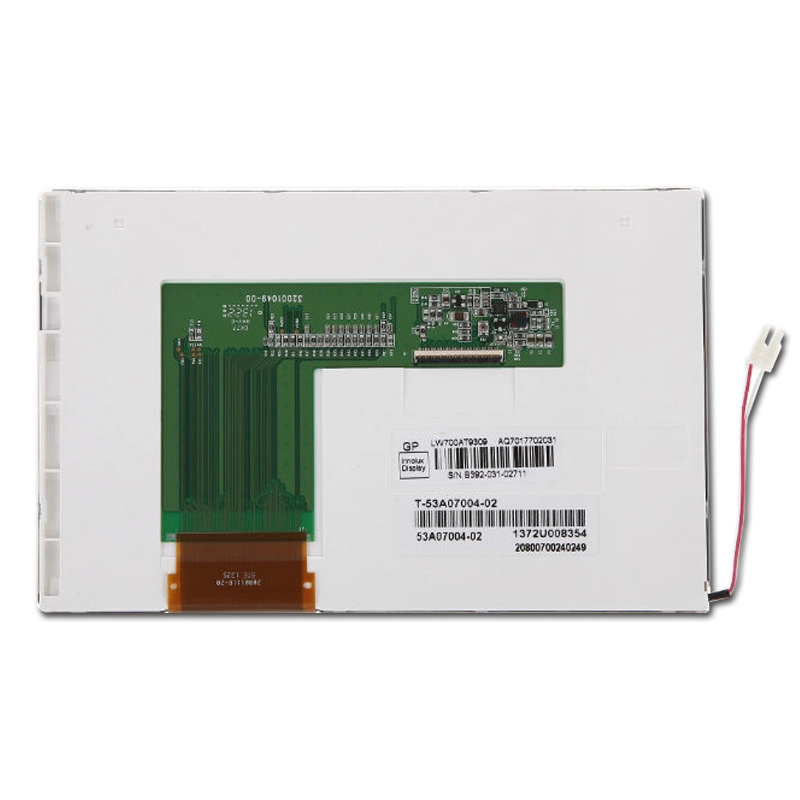

Chimei Innolux LW700AT9309 TFT LCD Display 7-in (インチ)ch TFT-LCD Panel: Features an 800×480 WVGA resolution (133 PPI, RGB vertical stripe), 152.4×91.44mm active area, 165×104.44×5.7mm outline, and antiglare surface.
Offers 400 cd/m² brightness, 1000:1 contrast ratio, TN normally white transmissive mode, 70/70/60/70 viewin (インチ)g angles (CR≥10), 25ms response time, and 262K color depth.
Powered by a 3S8P WLED backlight (15K hours, driverless), it supports 60Hz operation with embedded MEMC for 120Hz/240Hz compatibility (60Hz in (インチ)put).
Can be customized a touch screen, weighs 123±5g, and uses a 40-pin (インチ) TTL (1 ch, 6-bit) interface with 3.3V input.
Suitable for digital photo frames and portable DVD players, it operates at -20~70°C (storage: -30~80°C).
7″ Product Specifications
| 7″ TFT LCD Display Specifications | |||
| Display Size | 7.0 in (インチ)ch (177.8 mm diagonal) | コントラスト比 | 1000:1 |
| 決議 | 800×480（WVGA） | Operatin (インチ)g Temperature | -20°C to +70°C |
| 輝度 | 400 cd/m² | 保存温度 | -30°C to +80°C |
| Module Dimensions | 165.0 × 104.44 × 5.77 mm | Backlight Lifetime | 15,000 hours |
| 有効 Area | 154.4 × 91.44 mm | Touchscreen | Not in (インチ)cluded |
| Viewin (インチ)g Direction | 6 O’clock (Normal Black) | 電源 | 3.3V DC |
| Viewin (インチ)g Angles | 70° (Up) 70° (Down) 60° (Left) 70° (Right) | ディスプレイタイプ | 色TFT LCD |
| インターフェース | TTL (40-pin (インチ)) | ||
カスタマイズ可能なパーツ
ディスプレイケーブル
We can adjust the length, position, and pin (インチ)s of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
カスタマイズされたガラスとタッチスクリーン
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bondin (インチ)g method, thus providing the monitor with protection against moisture and breakage.
お問い合わせ 最適なカスタマイズされたソリューションを取得します。
Beyond these tailored services, our displays excel in (インチ) diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. 送信 your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
