説明
G104AGE-L02 General Description

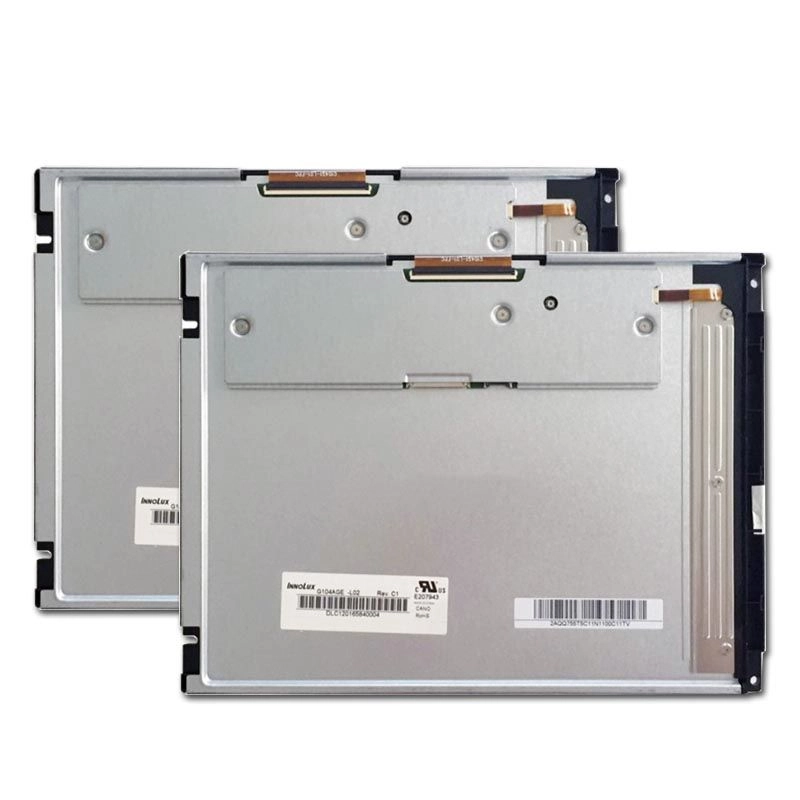

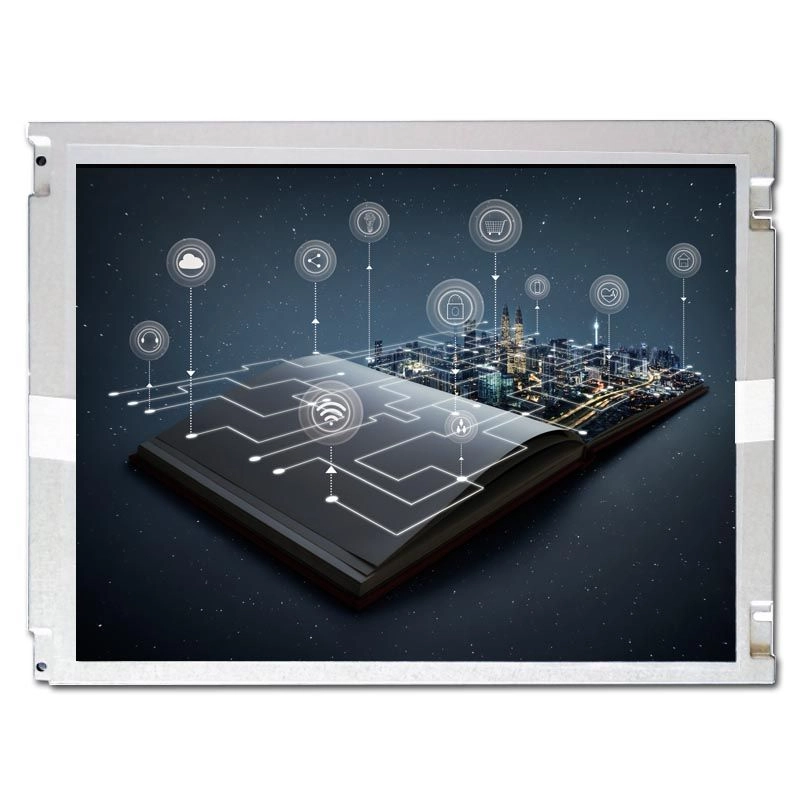

Here are the key points about this Innolux G104AGE-L02 10.1 inch TN LCD Panel :
Designed for extreme environments, it operates reliably within the temperature range of -30°C to 85°C, supported by a 50,000-hour LED lifespan.
Its LVDS interface ensures stable signal transmission, while the 3.3V low-power design helps reduce energy consumption.
The compact chassis measures 243×184mm, housing an 800×600 active area (211.2×158.4mm) with 80/80/70/70 viewing angles, making it ideal for industrial control systems.
The non-touchscreen design enhances durability against vibrations and dust.
Certified for continuous operation in high-humidity and electromagnetic environments, this panel supports mission-critical applications that require sunlight readability and shock resistance.
Innolux G104AGE-L02 10.1 inch TN LCD Panel Application & Performance
Perfect for industrial automation, this panel excels in CNC machinery, ruggedized HMIs, and outdoor kiosks. The 400cd/m² brightness combats glare in solar-powered agricultural monitors and mining vehicle dashboards. Withstands temperature extremes in freezer warehouse displays and desert logistics trackers. LVDS integration ensures EMI resistance for railway signaling systems and marine navigation equipment. TN technology provides stable performance for medical sterilization consoles and factory IoT terminals. Optimized for 24/7 operation in oil/gas control panels and heavy-duty construction machinery. Anti-vibration construction maintains clarity in mobile drilling rigs, while 3.3V efficiency suits battery-powered field devices.
10.4″ G104AGE-L02 Product Specifications
| 10.4″ Product Specifications | |||
| 斜めのサイズ | 10.4インチ | コントラスト比 | 700:01:00 |
| ピクセル番号 | 800×600 | 動作温度 | -30 ~ 85 °C |
| 輝度 | 400 | 保存温度 | -30 ~ 85 °C |
| モジュールサイズ | 243×184 | LED寿命 | 50000 |
| 活動エリア | 211.2×158.4 | タッチスクリーン対応 | なし |
| 視聴方向 | TN | 電源 | 3.3V |
| View Angle（u {{url_placeholder_0}}） | 80/80/70/70 | ディスプレイタイプ | 色TFT |
| インターフェース | LVDS | ||
カスタマイズ可能なパーツ
ディスプレイケーブル
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
カスタマイズされたガラスとタッチスクリーン
モニターの耐久性と性能を向上させるために、モニター用のカスタムカットカバーガラスを選択することができます。自分に合った厚さを選択し、光学接着方式を選ぶことで、湿気や破損からモニターを保護することができる。
お問い合わせ 最適なカスタマイズされたソリューションを取得します。
