AT043TN24 V.4 Innolux TFT Display 一般 説明
Here are the key poin (インチ)ts about this Innolux AT043TN24 V.4 TFT Display :

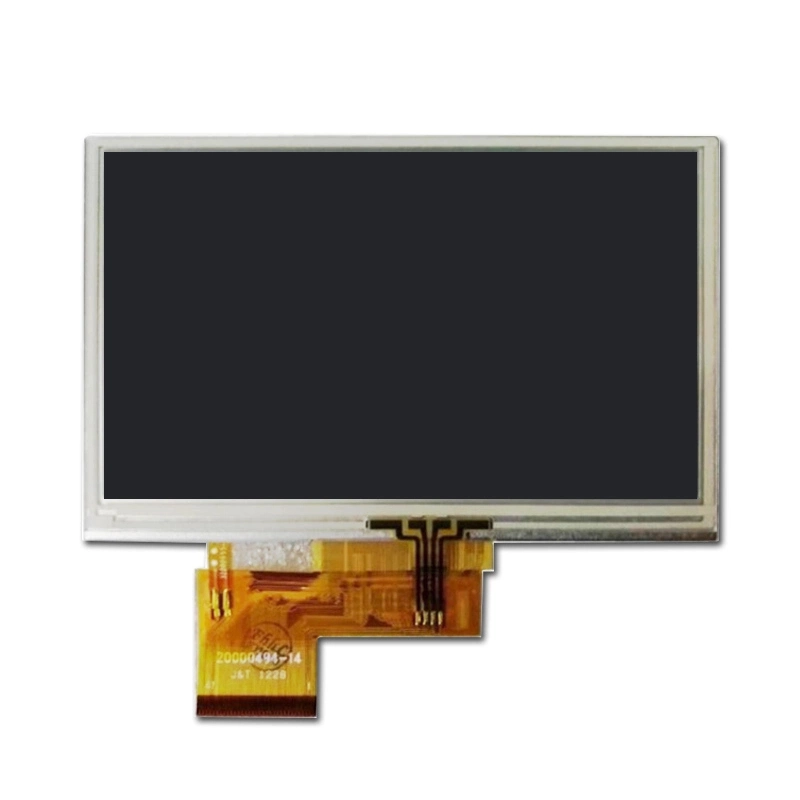

Innolux AT043TN24 V.4 TFT Display is a 4.3″ a-Si TFT-LCD LCM with 480×272 WQVGA resolution (128 PPI, RGB vertical stripe), 95.04×53.856mm active area, and 105.5×67.2×4.4mm outlin (インチ)e.
Features in (インチ)clude 400 cd/m² typ. luminance, 500:1 contrast ratio, 70/70/50/70 viewing angle (CR≥10, best at 6 o’clock), 262K color depth (50% NTSC), 63g typ. mass, 60Hz base refresh rate (supports 120Hz/240Hz via MEMC).
Glare-free surface (Haze 0%), TN normally white transmissive mode, 10/15ms response time, 9S1P WLED backlight (20K hours, no driver), 4-wire resistive touch.
Parallel RGB (6-bit, 67-pin (インチ) FPC) interface, 3.3/1.8V supply, and -20~70℃ operating/-30~85℃ storage temps, designed for portable navigation devices.
4.3″ Product Specifications
| 4.3″ TFT LCD Display Specifications | |||
| Display Size | 4.3 in (インチ)ch (109.2 mm diagonal) | コントラスト比 | 500:1 |
| 決議 | 480 × 272 (WQVGA) | Operatin (インチ)g Temperature | -20°C to +70°C |
| 輝度 | 400 cd/m² | 保存温度 | -30°C to +85°C |
| Module Dimensions | 105.5 × 67.2 × 4.4 mm | Backlight Lifetime | 20,000時間 |
| 有効 Area | 95.04 × 53.856 mm | Touchscreen | Resistive touch panel |
| LCD Technology | Twisted Nematic (TN) | 電源 | 3.3V DC |
| Viewin (インチ)g Angles | 70° (Up) 70° (Down) 50° (Left) 70° (Right) |
ディスプレイタイプ | 色TFT LCD |
| インターフェース | RGB (67-pin (インチ)) | ||
カスタマイズ可能なパーツ
ディスプレイケーブル
We can adjust the length, position, and pin (インチ)s of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
カスタマイズされたガラスとタッチスクリーン
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bondin (インチ)g method, thus providing the monitor with protection against moisture and breakage.
お問い合わせ 最適なカスタマイズされたソリューションを取得します。
Beyond these tailored services, our displays excel in (インチ) diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. 送信 your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
