説明

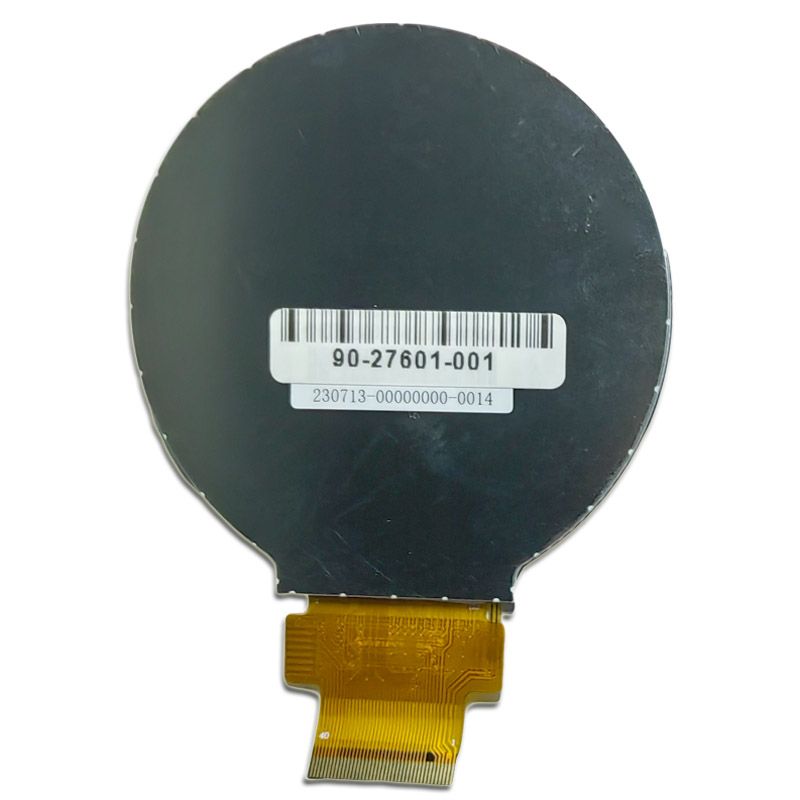

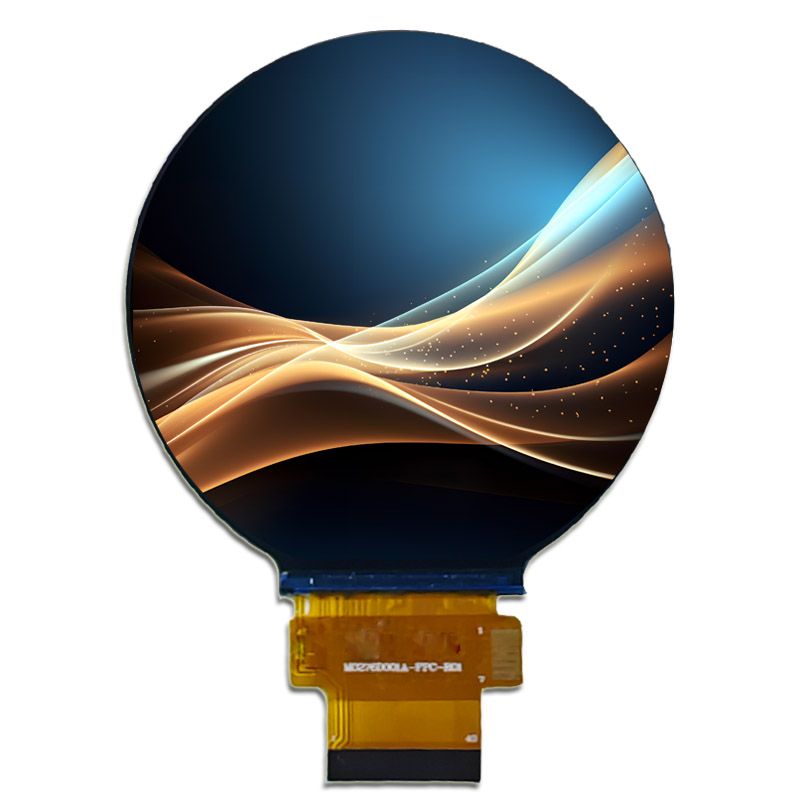

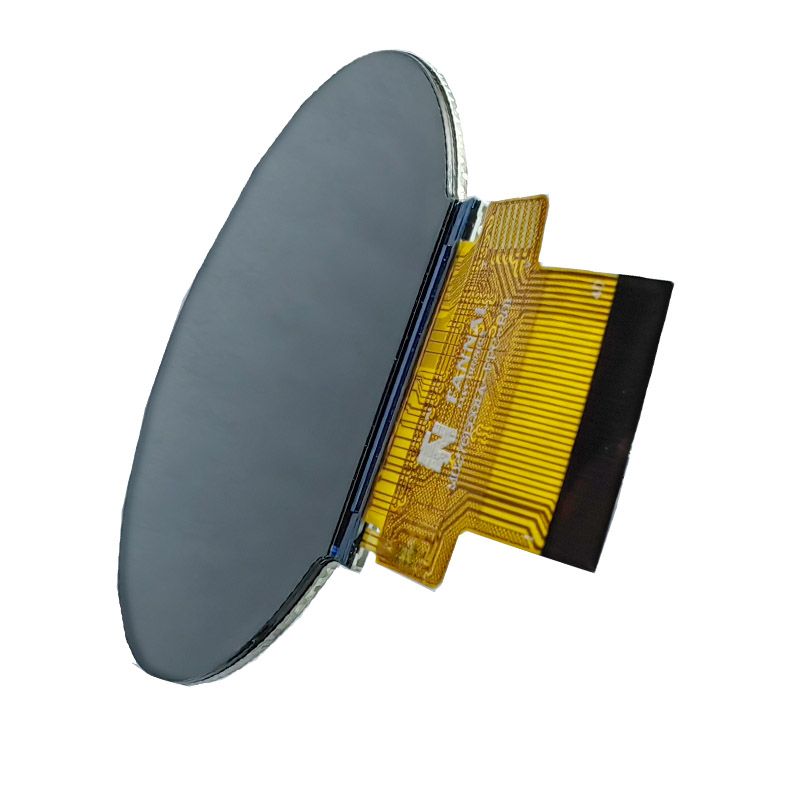

2.76″ Circular TFT Display Features
Here are the key poin (インチ)ts about this 2.76 inch TFT Display :
Resolution: The 2.76 in (インチ)ch Round LCD Display has a resolution of 480×480 pixels, making it perfect for applications that demand high-quality and detailed visuals.
Viewin (インチ)g Angle: The lcd display offers a viewing angle of 85° in all directions, ensuring consistent image quality and color accuracy.
Brightness: With a brightness level of 450 cd/m², it provides excellent visibility in (インチ) diverse lighting conditions, suitable for both indoor and outdoor use.
LED Backlight Lifespan: The LED backlight has a lifespan of 30,000 hours.
Contrast Ratio: The high contrast ratio of 1200 enhances clarity and vibrancy.
2.76″ Circular LCD Display with Long Lifespan
This 2.76-in (インチ)ch TFT display module is engineered for longevity, featuring an LED backlight rated for 30,000 hours of operation. Key factors contributing to its extended lifespan include the use of high-quality components that enhance durability and performance, effective thermal management to prevent overheating, and low power consumption that reduces thermal stress on internal parts. These features collectively ensure reliable operation and prolonged longevity, making the display suitable for various applications.
| 2.76″ Circular LCD Display | |||
| モデル番号 | 90-27601-001 | Operatin (インチ)g Temperature | -20 ℃〜70℃ |
| サイズ | 2.76″ | 保存温度 | -30 ℃〜80℃ |
| 決議 | 480 × 480 | LED寿命 | 30,000時間 |
| Outlin (インチ)e Dimension | 73.03 × 76.48 × 2.24 mm | タッチスクリーン対応 | なし |
| 有効 Area | 70.13 × 70.13 mm | コントラスト比 | 1200:1 |
| 輝度 | 450 cd/m² | 電源 | 3.3V |
| インターフェース | RGB | ディスプレイタイプ | カラーLCD |
| 方向性を見る | All Directions | ||
カスタマイズ可能なパーツ
ディスプレイケーブル
We can adjust the length, position and pin (インチ)s of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
カスタマイズされたガラスとタッチスクリーン
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bondin (インチ)g method, thus providing the monitor with protection against moisture and breakage.
お問い合わせ 最適なカスタマイズされたソリューションを取得します。
Beyond these tailored services, our displays excel in (インチ) diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. 送信 your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
