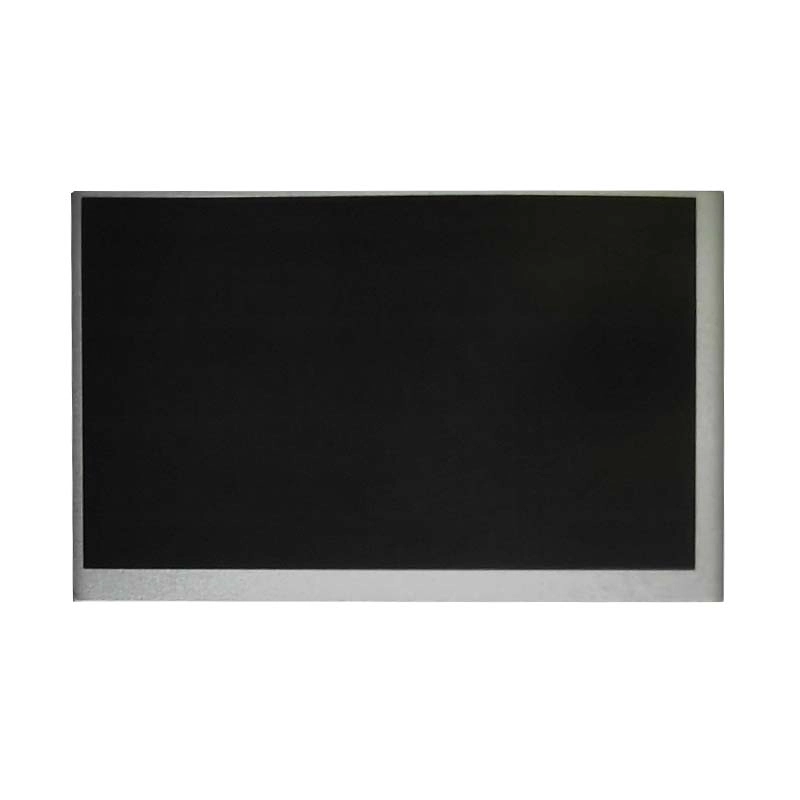

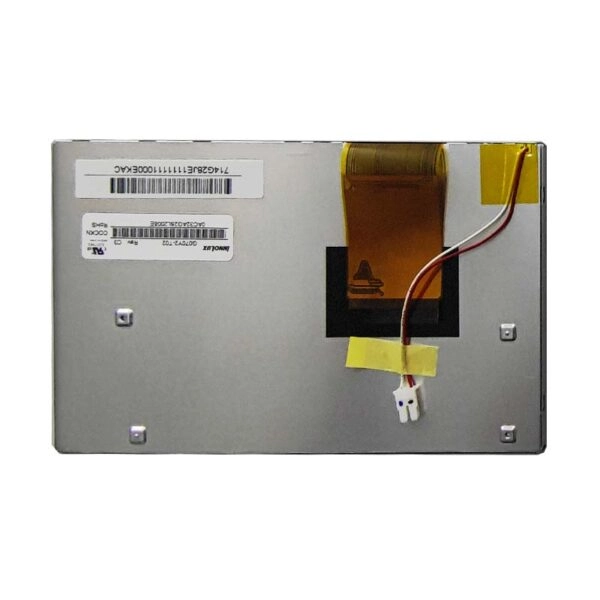

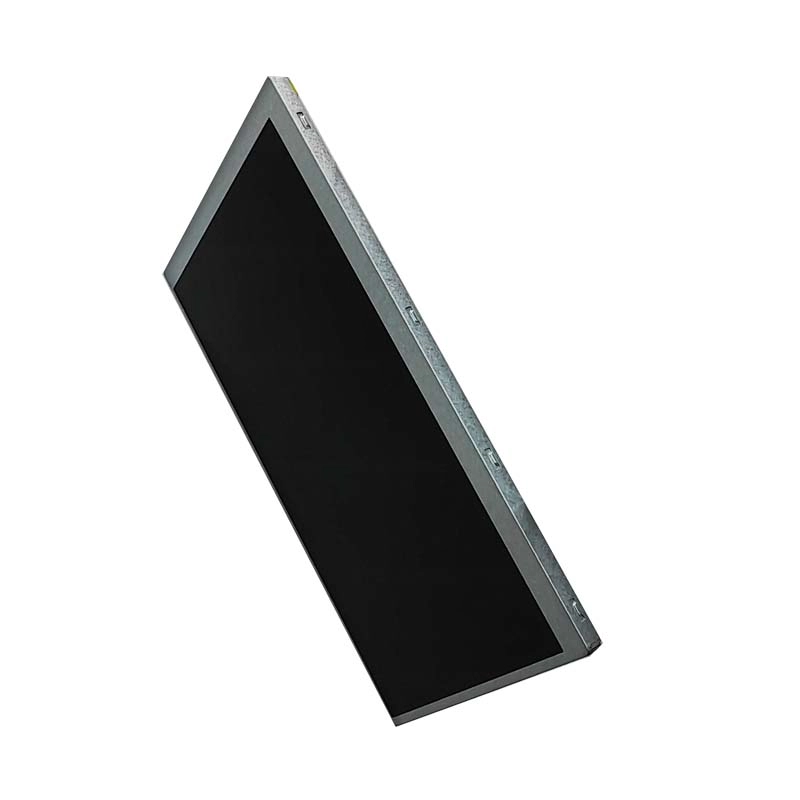

G070Y2-T02 General Description
Here are the key points about this Innolux G070Y2-T02 7 inch Ultra-Slim TTL LCD Panel :
Display Specifications：Featuring an ultra-slim profile (6.83mm thickness) and 800×480 resolution, it delivers sharp visuals with 500 cd/m² brightness and 600:1 contrast ratio.
Interface and Voltage Support：The TTL interface ensures fast signal transmission, while multi-voltage support (3.3/10/19/-6.8V) enhances compatibility with diverse embedded systems.
Environmental Adaptability：Designed for harsh environments, it operates reliably from -30°C to 85°C and offers a 50,000-hour LED lifespan.
Viewing Angles and Structural Features：Its 70/70/60/60 viewing angle and rugged construction make it ideal for space-constrained, high-performance scenarios where durability and low power consumption (3.3V primary) are critical.
Innolux G070Y2-T02 7 inch Ultra-Slim TTL LCD Panel Application & Performance
This display is engineered for industrial HMI, portable medical devices, automotive dashboards, and IoT terminals. The slim design suits handheld diagnostic tools, smart meters, and control panels in tight spaces. High brightness ensures readability in outdoor POS systems or construction equipment, while the wide temperature range supports operation in arctic logistics or desert environments. The TTL interface minimizes latency for real-time data display in robotics and automation. With shock-resistant specs and storage tolerance from -40°C to 95°C, it withstands extreme conditions in aerospace testing, marine navigation, and agricultural machinery.
Innolux G070Y2-T02
| Innolux G070Y2-T02 TN TFT LCD Display Module | |||
| Dimensione dello schermo | 7.0 inch (178mm diagonal) | Rapporto di contrasto | 600:1 (typical) |
| Risoluzione | 800 × 480 (WVGA) | Temperatura di esercizio | -30℃ to +85℃ |
| Luminosità | 500 cd/m² (typical) | Temperatura di stoccaggio | -40℃ to +95℃ |
| Module Dimensions | 165(W) × 104(H) × 6.83(D) mm | Backlight Lifetime | 50,000 hours (minimum) |
| Area attiva | 152,4 × 91,44 mm | Touch Panel | Not included |
| Visualizza tecnologia | Twisted Nematic (TN) | Alimentazione | 3.3V / 10V / 19V / -6.8V |
| Viewing Angles | 70° (U/D) / 60° (L/R) | Tipo di display | Color TFT LCD |
| Interfaccia | TTL (Transistor-Transistor Logic) | ||
Parti personalizzabili
Cavo del display
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Vetro e touch screen personalizzati
Per migliorare la durata e le prestazioni del monitor, si può scegliere di avere un vetro di copertura tagliato su misura per il monitor. È possibile scegliere lo spessore più adatto e optare per il metodo di incollaggio ottico, in modo da proteggere il monitor dall'umidità e dalla rottura.
Contattaci Per ottenere la migliore soluzione personalizzata.
