G057VCE-TH1 General Description

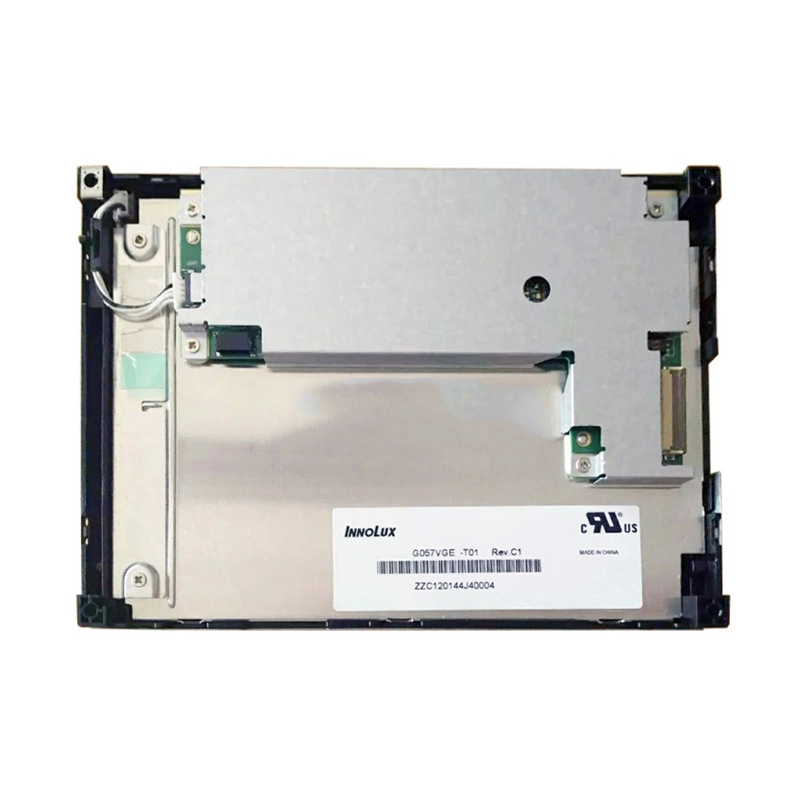

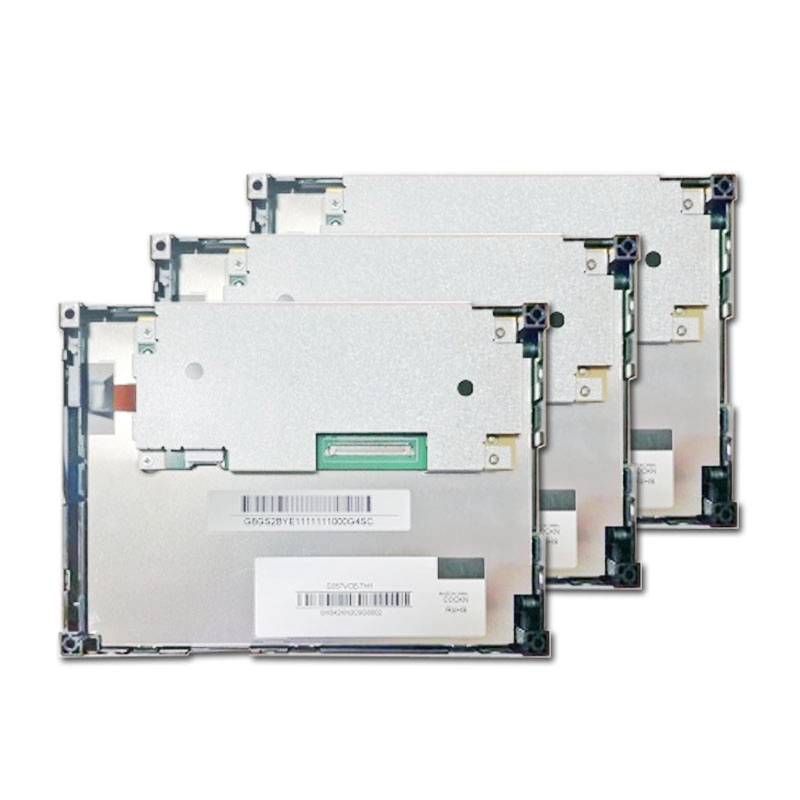

Here are the key points about this Innolux G057VCE-TH1 5.7 inch IPS LCD :
Model and Durability: The Innolux G057VCE-TH1 redefines durability with military-grade -30°C cold-start capability and 85°C heat resistance, surviving desert mining rig dashboards or Alaskan pipeline monitors.
Display Performance: Its 450cd/m² IPS panel delivers anti-glare performance under direct sunlight, while 88° ultra-wide viewing angles ensure consistent color accuracy for multi-operator control panels.
Interface and Contrast: The RGB interface enables precise color calibration for aviation warning systems, paired with 1000:1 contrast for crisp symbology in low-light environments.
LED Lifespan: With a 50,000-hour LED lifespan (5.7 years non-stop), it’s engineered for inaccessible installations like deep-sea ROV controls or nuclear reactor status displays.
Structure and Vibration Resistance: The 12.8mm ruggedized profile withstands vibration in armored vehicle systems, while the 3.3V low-power design integrates seamlessly with battery-powered field equipment.
Innolux G057VCE-TH1 5.7 inch IPS LCD Application & Performance
Engineered for extreme environments, this display operates in -30°C Arctic oil fields and 85°C desert solar farms. 450cd/m² brightness ensures visibility in blizzards or Sahara heat. IPS panels and 88° angles aid radar displays and collaborative mining control. 50K-hour LED lifespan reduces maintenance in Antarctic stations and molten metal robots. RGB precision suits chemical plant emergency systems, while 3.3V compatibility fits bomb disposal robots and UAV controls.
5.7″ Product Specifications
| 5.7″ Product Specifications | |||
| Dimensione diagonale | 5,7 pollici | Rapporto di contrasto | 1000:1 |
| Numero pixel | 640 × 480 | Temperatura di esercizio | -30 ~ 85 ℃ |
| Luminanza | 450 CD {{url_placeholder_0}} | Temperatura di stoccaggio | -40 ~ 85 ℃ |
| Dimensione del modulo | 144 × 104,6 × 12,8 mm | Durata del LED | 50.000 ore |
| Area attiva | 115,2 × 86,4 mm | Supporto per touchscreen | Senza |
| Direzione di visualizzazione | IPS | Alimentazione | 3.3V |
| Visualizza angle (u {{url_placeholder_0}}) | 88°/88°/88°/88° | Tipo di display | Colore tft |
| Interfaccia | RGB | ||
Parti personalizzabili
Cavo del display
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Vetro e touch screen personalizzati
Per migliorare la durata e le prestazioni del monitor, si può scegliere di avere un vetro di copertura tagliato su misura per il monitor. È possibile scegliere lo spessore più adatto e optare per il metodo di incollaggio ottico, in modo da proteggere il monitor dall'umidità e dalla rottura.
Contattaci Per ottenere la migliore soluzione personalizzata.
