Descrizione
EE080NA-06A General Description

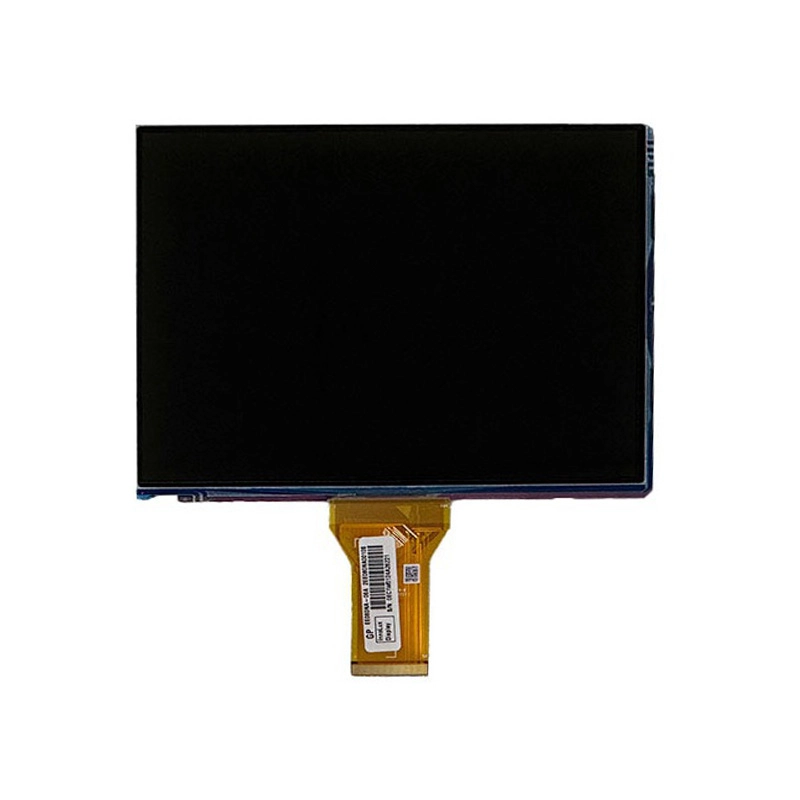

Here are the key points about this Innolux EE080NA-06A 8 inch Razor-Thin LCD :
Display Performance: It delivers 800×600 resolution and an exceptional 1000:1 contrast for crisp grayscale imaging.
Power Supply and Interface: Engineered for energy-sensitive applications, its RGB interface and 3.3V~16V power compatibility ensure seamless integration into low-power systems.
Display Features: Despite missing brightness specs, its anti-glare surface and 70/70/50/70 viewing angles provide reliable readability in controlled lighting environments.
Environmental Adaptability: The industrial-grade design withstands -20°C to 70°C operation, while a corrosion-resistant structure supports longevity in humid labs or cleanroom settings.
Application Scenarios: It is ideal for applications prioritizing minimal thickness without compromising signal stability.
Innolux EE080NA-06A 8 inch Razor-Thin LCD Application & Performance
Perfect for space-constrained scenarios, this display excels in portable medical diagnostic devices, handheld industrial scanners, and aviation cockpit subpanels where every millimeter matters. The 1000:1 contrast ratio enhances waveform monitoring in ultrasound machines or spectrometer displays, while the slim profile enables integration into wafer-thin IoT control panels for smart buildings. Its -20°C~70°C range suits pharmaceutical cold-chain monitoring systems and food processing HMIs. The absence of touch interference makes it ideal for radiation therapy consoles or semiconductor fab equipment requiring precise, distraction-free data visualization. Compatible with low-voltage embedded systems in robotics or drone telemetry interfaces.
8.0″ Product Specifications
| 8.0″ Product Specifications | |||
| Dimensione diagonale | 8.0 inch | Rapporto di contrasto | 1000:01:00 |
| Numero pixel | 800 × 600 | Temperatura di esercizio | -20 ~ 70 ℃ |
| Luminanza | - | Temperatura di stoccaggio | -30 ~ 80 ℃ |
| Dimensione del modulo | 171×132.7×1.43 | Durata del LED | 20000 |
| Area attiva | 162×121.5 | Supporto per touchscreen | Senza |
| Direzione di visualizzazione | TN | Alimentazione | 3.3/10.4/16.0/-7.0V |
| Visualizza angle (u {{url_placeholder_0}}) | 70/70/50/70 | Tipo di display | Colore tft |
| Interfaccia | RGB | ||
Parti personalizzabili
Cavo del display
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Vetro e touch screen personalizzati
Per migliorare la durata e le prestazioni del monitor, si può scegliere di avere un vetro di copertura tagliato su misura per il monitor. È possibile scegliere lo spessore più adatto e optare per il metodo di incollaggio ottico, in modo da proteggere il monitor dall'umidità e dalla rottura.
Contattaci Per ottenere la migliore soluzione personalizzata.
