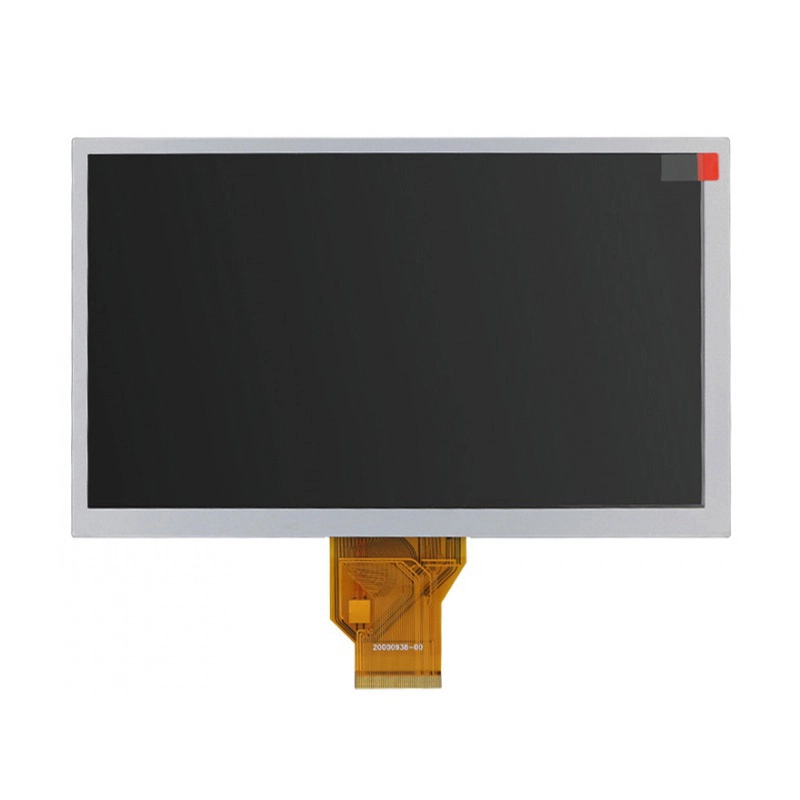

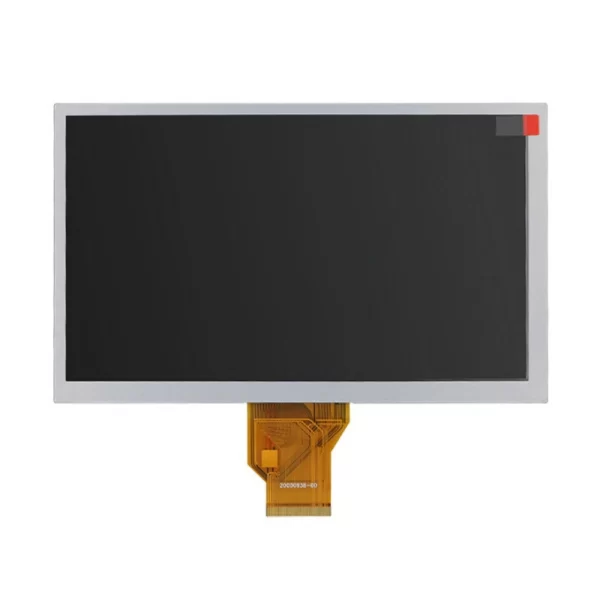

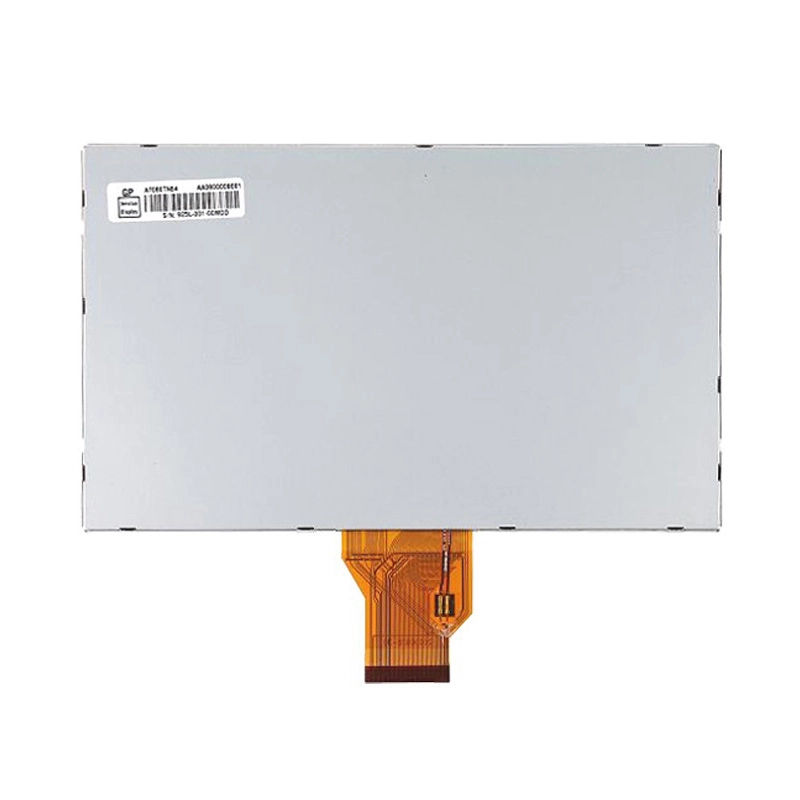

Innolux AT080TN64 RGB LCD Display Wide-Temp (-30°C~85°C)

SKU: DS50214
Brands:
Dimensione

8 pollici

Risoluzione

800*480

Interfaccia

RGB

Temperatura op

-30 ℃ ~ 85 ℃

Luminosità (cd/m²)

500

Supporto per touchscreen

NO

Tipo di display

LCD a colori

Risorse:

Innolux AT080TN64 RGB LCD Display 8 inch Industrial Beast: 500cd/m² Sunlight Visibility, 800:1 Contrast – Engineered for Extreme Temperature Machinery Displays.

x

    Descrizione

    AT080TN64 General Description

    Here are the key points about this Innolux AT080TN64 RGB LCD Display :
    ✅Operating Temperature Range: The ruggedized design allows operation from -30°C to 85°C in extreme conditions.
    ✅Dimensions and Power Supply: With a slim 6.7mm profile (192.8×116.9mm outline) and energy-efficient 3.3V~16V power supply, this display excels in space-constrained embedded systems.
    ✅Interface and Lifespan: The RGB interface guarantees stable data transmission, complemented by a 20,000-hour LED lifespan for reduced maintenance.
    ✅Application Scenarios: Designed without a touchscreen, it is optimized for applications requiring uninterrupted visual feedback in harsh industrial, marine, or transportation settings.

    AT080TN64 Application & Performance

    Designed for harsh conditions, the AT080TN64 excels in factory automation, offshore drilling, and railway signaling. Its 500cd/m² brightness makes it suitable for outdoor applications like solar sensors and mining dashboards. With 70/70/50/70 viewing angles, it’s ideal for aviation and medical devices. Offering IP65 compatibility, 800:1 contrast, and a 6.7mm profile, it’s perfect for EV charging stations, CNC HMIs, cold-chain tracking, and retrofitting legacy consoles or IoT devices.

    8.0″ Product Specifications

    8.0″ Product Specifications
    Dimensione diagonale 8.0 inch Rapporto di contrasto 800:01:00
    Numero pixel 800×480 Temperatura di esercizio -30 ~ 85 ℃
    Luminanza 500 Temperatura di stoccaggio -30 ~ 85 ℃
    Dimensione del modulo 192.8×116.9×6.7 Durata del LED 20000
    Area attiva 176.64×99.36 Supporto per touchscreen Senza
    Direzione di visualizzazione TN Alimentazione 3.3/10.4/16.0/-7.0V
    Visualizza angle (u {{url_placeholder_0}}) 70/70/50/70 Tipo di display Colore tft
    Interfaccia RGB

    Parti personalizzabili

    Cavo del display

    Cavo del display

    We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.

    Vetro e touch screen personalizzati

    Per migliorare la durata e le prestazioni del monitor, si può scegliere di avere un vetro di copertura tagliato su misura per il monitor. È possibile scegliere lo spessore più adatto e optare per il metodo di incollaggio ottico, in modo da proteggere il monitor dall'umidità e dalla rottura.

    Vetro e touch screen personalizzati

    Contattaci Per ottenere la migliore soluzione personalizzata.



    Q1: What is the model and type of this display?
    A: The model is Innolux AT080TN64, an 8-inch RGB LCD display designed for industrial use.

    Q2: What key visual specifications does it offer?
    A: It features 500cd/m² brightness for sunlight visibility and an 800:1 contrast ratio for clear graphics.

    Q3: What makes it suitable for harsh environments?
    A: It is engineered to withstand extreme temperatures, ideal for machinery displays in demanding conditions.

    Q4: What is the primary application of this display?
    A: It is built for industrial machinery displays that require durability and visibility in tough environments.

    Altre informazioni

    Dimensione

    8 pollici

    Risoluzione

    800*480

    Interfaccia

    RGB

    Temperatura op

    -30 ℃ ~ 85 ℃

    Luminosità (cd/m²)

    500

    Supporto per touchscreen

    NO

    Tipo di display

    LCD a colori

    Soluzioni espositive personalizzate

    Lavora con i nostri esperti di ingegneria per creare il display perfetto per la tua applicazione.
