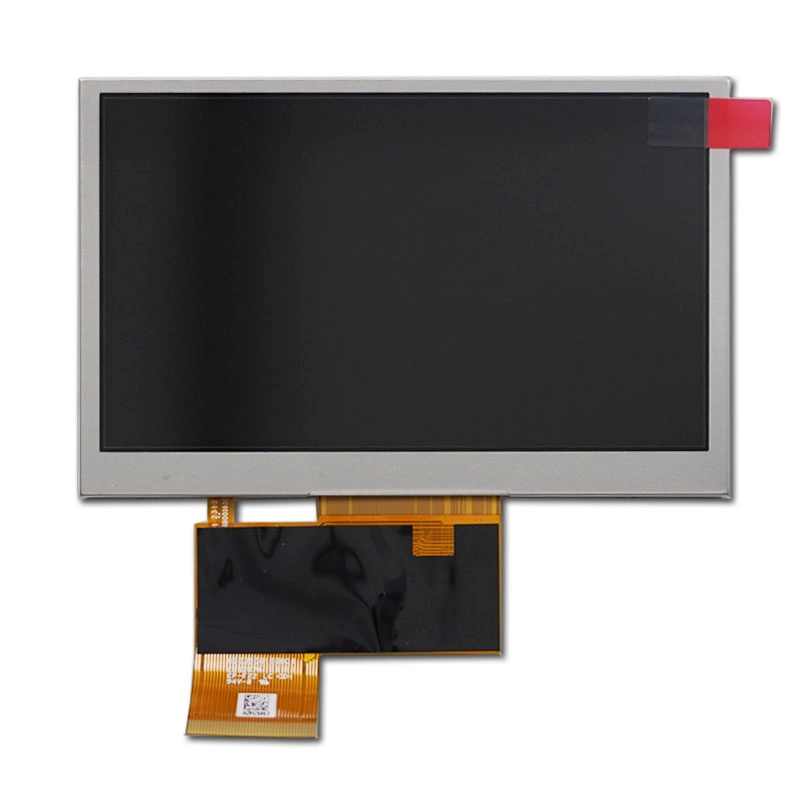

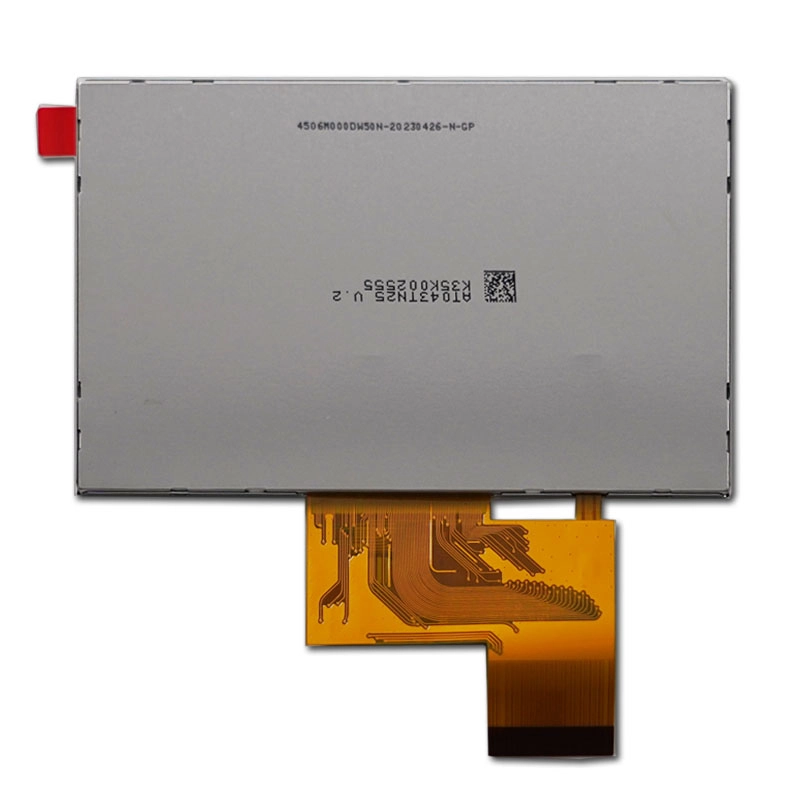

Innolux AT043TN25V.2 General Description
Here are the key points about this Innolux AT043TN25V.2 TFT LCD Screen :
Model and Size: The Innolux AT043TN25V.2 is a 4.3-inch TFT LCD screen specially designed for industrial applications.
Resolution: It features a resolution of 480 x 272 pixels.
Operating Temperature Range: Designed to operate in a wide temperature range from -20°C to 70°C, ensuring reliable performance in harsh environments.
Interface and Connector: Equipped with an RGB interface and a 40-pin FPC connector.
Product Grade and Characteristics: This original A-grade display offers high quality and durability.
Application Scenarios: It is ideal for scenarios requiring clarity and stability, such as handheld devices, industrial control systems, and portable equipment.
AT043TN25V.2 TFT LCD Screen Application
The Innolux AT043TN25V.2 TFT LCD Screen is well-suited for a variety of applications, particularly in automotive and portable device sectors. Its 4.3 inch size and robust features make it ideal for automotive displays, providing clear visuals for navigation and infotainment systems. The display’s high brightness of 500 cd/m² and wide viewing angles ensure excellent visibility in various lighting conditions, enhancing user experience in portable navigation devices and multimedia players like MP3 and PMP units.
4.3″ Specifiche di prodotto TFT-LCD
| 4.3″ Specifiche di prodotto TFT-LCD | |||
| Numero di modello | AT043TN25V.2 | Temperatura di esercizio | -20 ~ 70 ℃ |
| Dimensione | 4,3 pollici | Temperatura di stoccaggio | -30 ~ 80 ℃ |
| Risoluzione | 480(RGB)×272 | Durata del LED | 20000 hours |
| Dimensione del contorno | 105.5×67.1×2.95 mm | Supporto per touchscreen | Senza |
| Area attiva | 95.04×53.856 mm | Rapporto di contrasto | 1000:01:00 |
| Luminosità (cd/m²) | 500 | Alimentazione | 3.3V |
| Interfaccia | RGB 40pin | Tipo di display | LCD a colori |
| Visualizza la direzione | TN | ||
Parti personalizzabili
Cavo del display
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Vetro e touch screen personalizzati
Per migliorare la durata e le prestazioni del monitor, si può scegliere di avere un vetro di copertura tagliato su misura per il monitor. È possibile scegliere lo spessore più adatto e optare per il metodo di incollaggio ottico, in modo da proteggere il monitor dall'umidità e dalla rottura.
Contattaci Per ottenere la migliore soluzione personalizzata.
