Descrizione

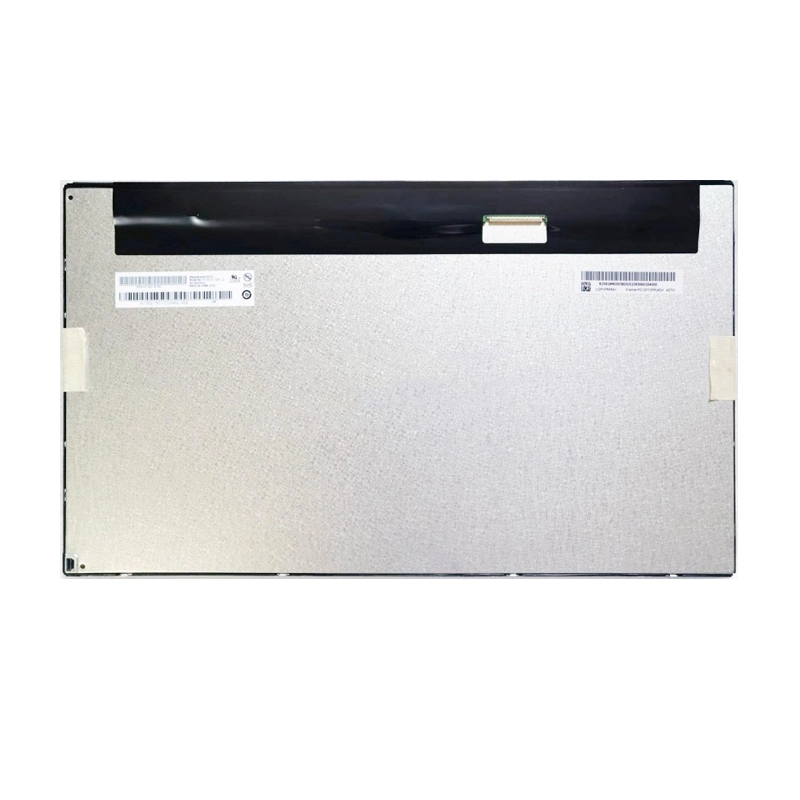

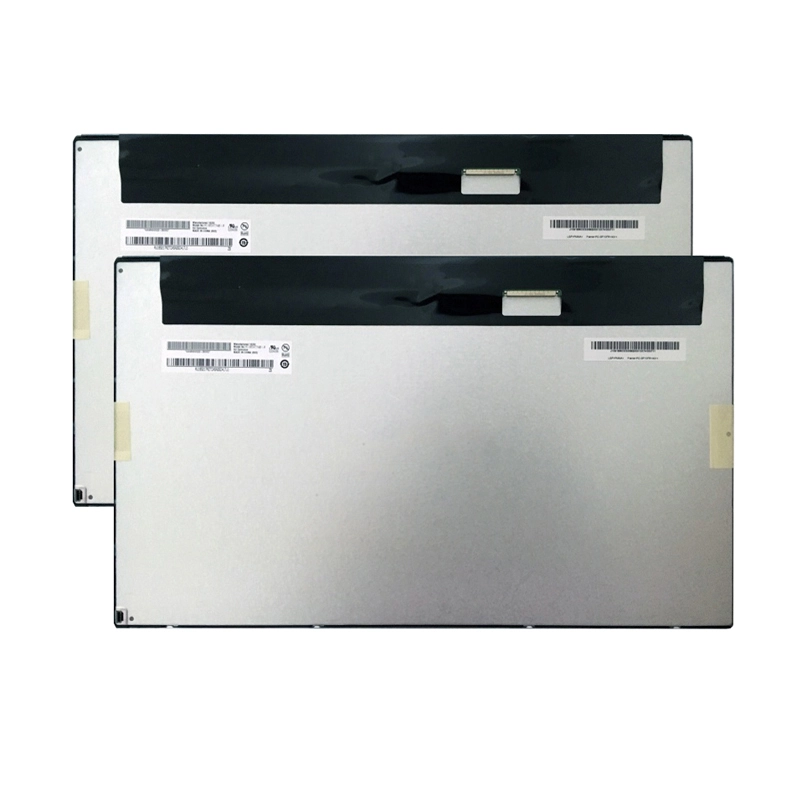

AUO M185XTN01.2 Key Features
Here are the key points about this AUO M185XTN01.2 LCD Screen :
- The AUO M185XTN01.2 LCD Screen is an 18.5-inch HD (1366×768) TN panel LCD engineered for rugged industrial applications.
- Featuring an LVDS interface for stable signal transmission in high-interference environments, it delivers reliable performance with 250cd/m² brightness and a 1000:1 contrast ratio.
- The ultra-slim 10.4mm profile (430.4×254.6×10.4mm) and 5V low-power design make it ideal for space-constrained and energy-efficient setups.
- Built to endure harsh conditions, it operates seamlessly in temperatures from -0°C to 50°C and withstands storage down to -20°C.
- With a 30,000-hour LED lifespan and anti-glare coating, it ensures long-term durability and readability under bright lighting.
M185XTN01.2 Applications & Performance
Designed for industrial control systems, retail kiosks, and medical monitoring devices, this TN display excels in cost-sensitive, single-view applications.
Its LVDS interface minimizes EMI in factory automation or transportation dashboards.
The wide temperature range supports outdoor digital signage or cold storage environments.
The slim design integrates effortlessly into compact IoT devices, ATMs, or legacy equipment upgrades.
Though TN panels have limited vertical viewing angles, the 89° horizontal clarity suits fixed-angle use in laboratory instruments or handheld diagnostic tools.
The 5V power compatibility simplifies integration with low-voltage systems, reducing energy costs in 24/7 operations like warehouse management or security panels.
18.5″ TN LCD Specifications
| 18.5″ TN LCD Display Specifications (Model: M185XTN01.2) | |||
| Numero di modello | M185XTN01.2 | Temperatura di esercizio | 0 ℃ a 50 ℃ |
| Dimensioni del display | 18,5 pollici | Temperatura di stoccaggio | Da -20 ℃ a 60 ℃ |
| Risoluzione | 1366 × 768 (HD) | Durata del LED | 30.000 ore |
| Dimensioni del contorno | 430.4mm × 254.6mm × 10.4mm | Touchscreen | No |
| Area attiva | 409.8mm × 230.4mm | Rapporto di contrasto | 1000:1 |
| Luminosità | 250 cd/m² | Alimentazione | 5,0 V DC |
| Interfaccia | LVDS | Tipo di display | Color TN LCD |
| Visualizza la direzione | TN (Twisted Nematic) | ||
Parti personalizzabili
Cavo del display
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Vetro e touch screen personalizzati
Per migliorare la durata e le prestazioni del monitor, si può scegliere di avere un vetro di copertura tagliato su misura per il monitor. È possibile scegliere lo spessore più adatto e optare per il metodo di incollaggio ottico, in modo da proteggere il monitor dall'umidità e dalla rottura.
Contattaci Per ottenere la migliore soluzione personalizzata.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
