AUO G238HAN01. 0 Key Features
Here are the key points about this AUO G238HAN01. 0 TN LCD Screen :

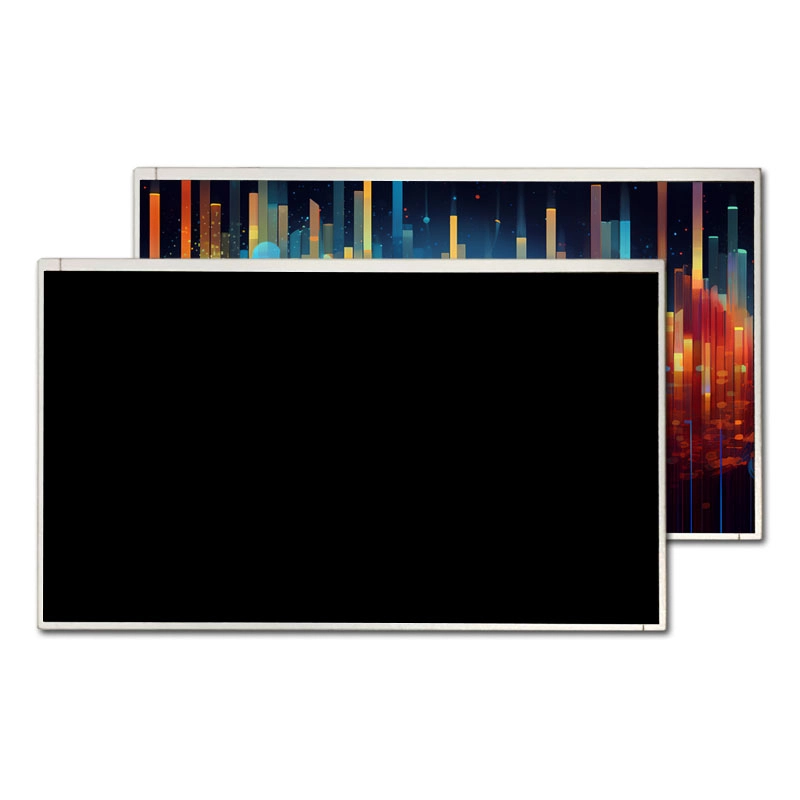

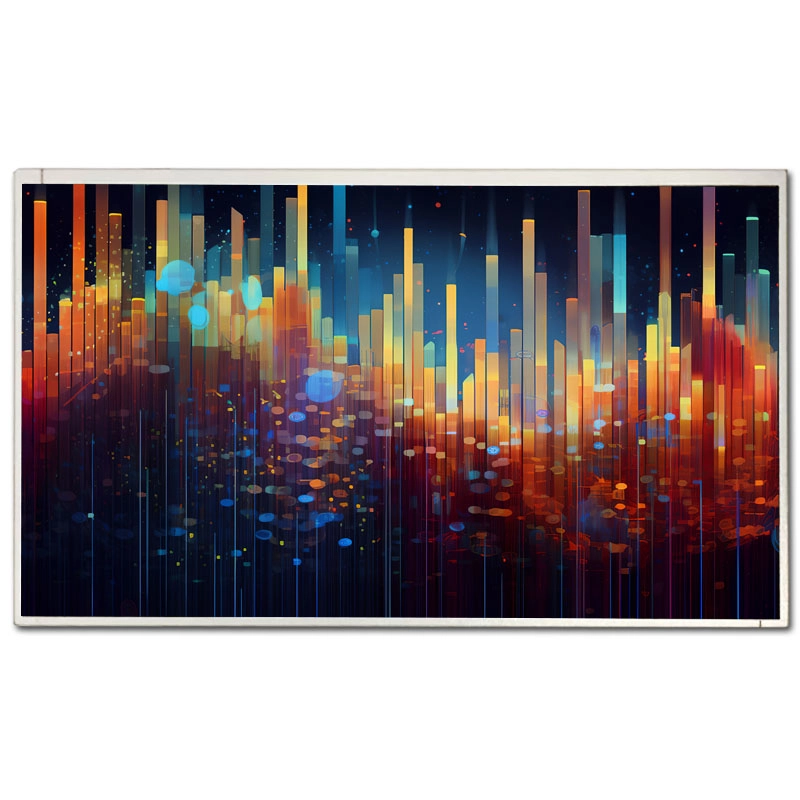

- The AUO G238HAN01. 0 TN LCD Screen is a high-performance 23.8-inch Full HD IPS LCD panel designed for industrial and commercial applications.
- Boasting a 1920×1080 resolution and 250 cd/m² brightness, it delivers crisp visuals with 1000:1 contrast for vibrant image clarity.
- The IPS technology ensures ultra-wide viewing angles (89°/89°/89°/89°), making it ideal for multi-user environments.
- Built for durability, it operates in extreme temperatures (-20°C to 60°C) and features a robust 30,000-hour LED lifespan.
- With an ultra-slim profile (11.65mm thickness) and LVDS interface, this display integrates seamlessly into space-constrained setups.
- Its 5V power supply reduces energy consumption, while the rugged design ensures reliability in demanding conditions.
- Perfect for industrial control systems, digital signage, medical devices, and retail POS terminals, the G238HAN01.0 balances performance, longevity, and versatility.
23.8″ TN LCD Specifications
| 23.8″ LCD Display Specifications (Model: G238HAN01.0) | |||
| Numero di modello | G238HAN01.0 | Temperatura di esercizio | 0 ℃ a 50 ℃ |
| Dimensioni del display | 23,8 pollici | Temperatura di stoccaggio | Da -20 ℃ a 60 ℃ |
| Risoluzione | 1920 × 1080 (Full HD) | Durata del LED | 30.000 ore |
| Dimensioni del contorno | 543mm × 317.4mm × 11.65mm | Touchscreen | No |
| Area attiva | 527.04mm × 296.46mm | Rapporto di contrasto | 1000:1 |
| Luminosità | 250 cd/m² | Alimentazione | 5,0 V DC |
| Interfaccia | LVDS | Tipo di display | LCD a colori |
| Visualizza la direzione | IPS (In-Plane Switching) | ||
Parti personalizzabili
Cavo del display
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Vetro e touch screen personalizzati
Per migliorare la durata e le prestazioni del monitor, si può scegliere di avere un vetro di copertura tagliato su misura per il monitor. È possibile scegliere lo spessore più adatto e optare per il metodo di incollaggio ottico, in modo da proteggere il monitor dall'umidità e dalla rottura.
Contattaci Per ottenere la migliore soluzione personalizzata.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
