Descrizione

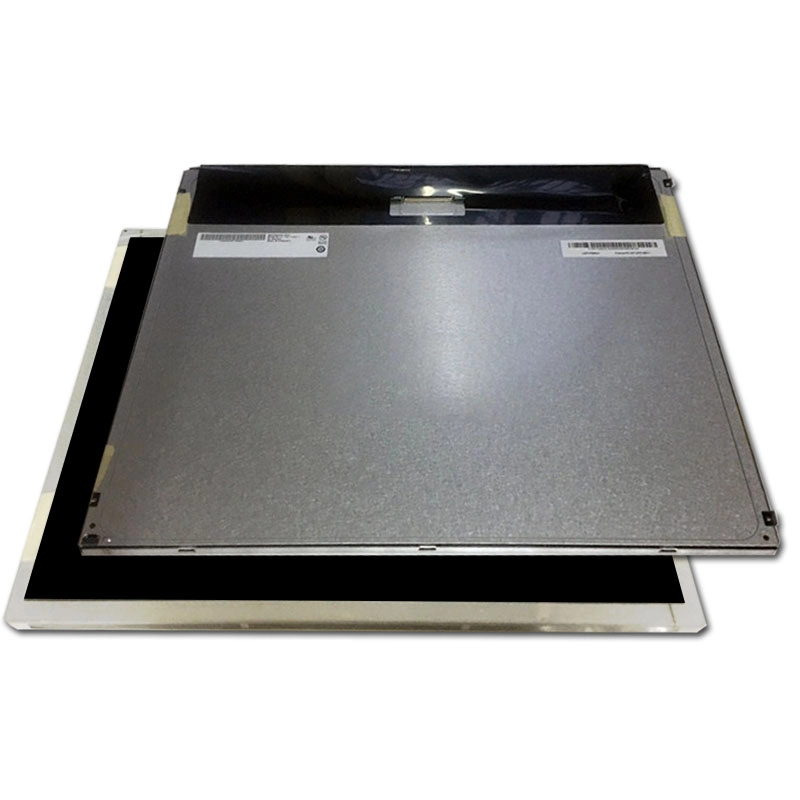

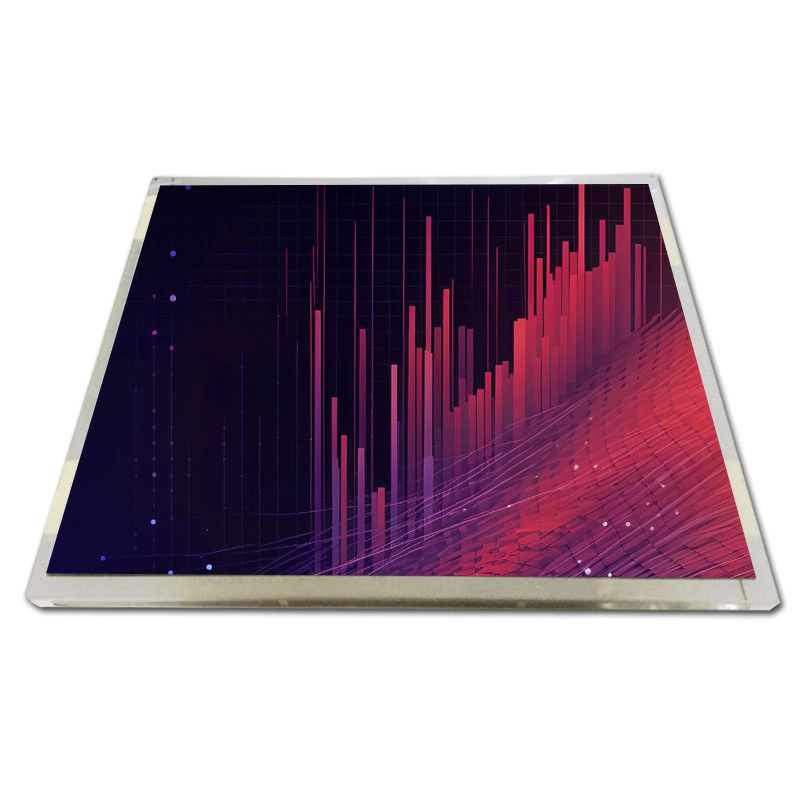

AUO G170ETN03.1 Key Features
Here are the key points about this AUO G170ETN03.1 LCD Screen :
- The AUO G170ETN03.1 LCD Screen is engineered for reliable performance in various applications, featuring a resolution of 1280 x 1024 pixels that delivers clear and detailed visuals.
- With a brightness level of 400 cd/m², this panel ensures good visibility in a range of lighting conditions, making it suitable for indoor environments.
- It operates efficiently within a temperature range of -0 to 50°C, providing dependable performance in moderate settings.
- The display utilizes a 30-pin LVDS interface, allowing for seamless integration into a variety of systems and enhancing its versatility across multiple applications.
- As an original A-grade quality product with a stable supply, the G170ETN03.1 is ideal for industrial automation, medical devices, and other applications requiring durable and high-performance display solutions.
17″ TFT-LCD Specifications
| 17″ TFT-LCD Display Specifications (Model: G170ETN03.1) | |||
| Numero di modello | G170ETN03.1 | Temperatura di esercizio | 0 ℃ a 50 ℃ |
| Dimensioni del display | 17 pollici | Temperatura di stoccaggio | Da -20 ℃ a 60 ℃ |
| Risoluzione | 1280 × 1024 (SXGA) | Durata del LED | 30.000 ore |
| Dimensioni del contorno | 358.5mm × 296.5mm × 10.8mm | Touchscreen | No |
| Area attiva | 337.92mm × 270.336mm | Rapporto di contrasto | 1000:1 |
| Luminosità | 400 cd/m² | Alimentazione | 3.3V DC |
| Interfaccia | LVDS | Tipo di display | TFT-LCD a colori |
| Visualizza la direzione | TN (Twisted Nematic) | ||
Parti personalizzabili
Cavo del display
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Vetro e touch screen personalizzati
Per migliorare la durata e le prestazioni del monitor, si può scegliere di avere un vetro di copertura tagliato su misura per il monitor. È possibile scegliere lo spessore più adatto e optare per il metodo di incollaggio ottico, in modo da proteggere il monitor dall'umidità e dalla rottura.
Contattaci Per ottenere la migliore soluzione personalizzata.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
