Descrizione
AUO G150XTN03.5 Key Features
Here are the key points about this : AUO G150XTN03.5 industrial Screen :

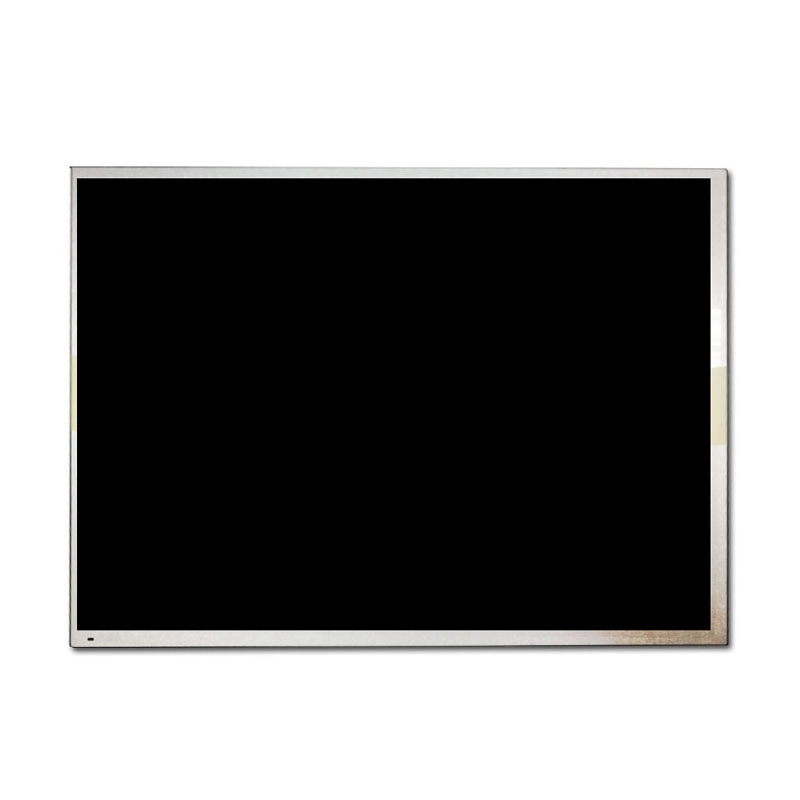

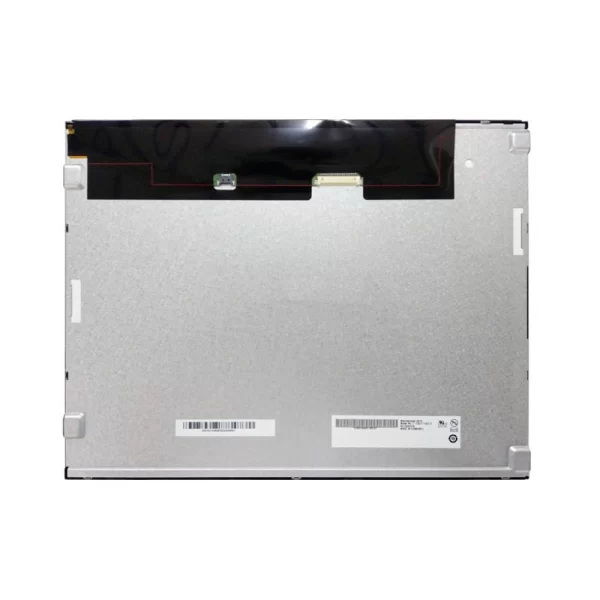

- The AUO G150XTN03.5 industrial Screen is a 15-inch TN LCD panel engineered for demanding environments.
- Featuring a crisp 1024×768 resolution and 350cd/m² high brightness, it ensures clarity even in brightly lit conditions.
- With an LVDS interface and ultra-low 3.3V power consumption, it integrates seamlessly into energy-efficient systems.
- Its rugged design supports operation from 0°C to 60°C and storage in extreme temperatures (-20~65°C), backed by a 50,000-hour LED lifespan for reduced maintenance.
- The 800:1 contrast ratio and 80/80/70/80 viewing angles deliver consistent visuals across horizontal and vertical orientations.
- Compact outline dimensions (326.5×253.5×10mm) maximize space efficiency, while the TN technology ensures cost-effective performance for industrial applications.
15″ TN LCD Specifications
| 15″ TN LCD Display Specifications (Model: G150XTN03.5) | |||
| Numero di modello | G150XTN03.5 | Temperatura di esercizio | 0℃ to 60℃ |
| Dimensioni del display | 15 pollici | Temperatura di stoccaggio | -20℃ to 65℃ |
| Risoluzione | 1024 × 768 (XGA) | Durata del LED | 50.000 ore |
| Dimensioni del contorno | 326.5mm × 253.5mm × 10mm | Touchscreen | No |
| Area attiva | 304.128mm × 228.096mm | Rapporto di contrasto | 800:1 |
| Luminosità | 350 cd/m² | Alimentazione | 3.3V DC |
| Interfaccia | LVDS | Tipo di display | Color TN LCD |
| Visualizza la direzione | TN (Twisted Nematic) | ||
Parti personalizzabili
Cavo del display
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Vetro e touch screen personalizzati
Per migliorare la durata e le prestazioni del monitor, si può scegliere di avere un vetro di copertura tagliato su misura per il monitor. È possibile scegliere lo spessore più adatto e optare per il metodo di incollaggio ottico, in modo da proteggere il monitor dall'umidità e dalla rottura.
Contattaci Per ottenere la migliore soluzione personalizzata.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
