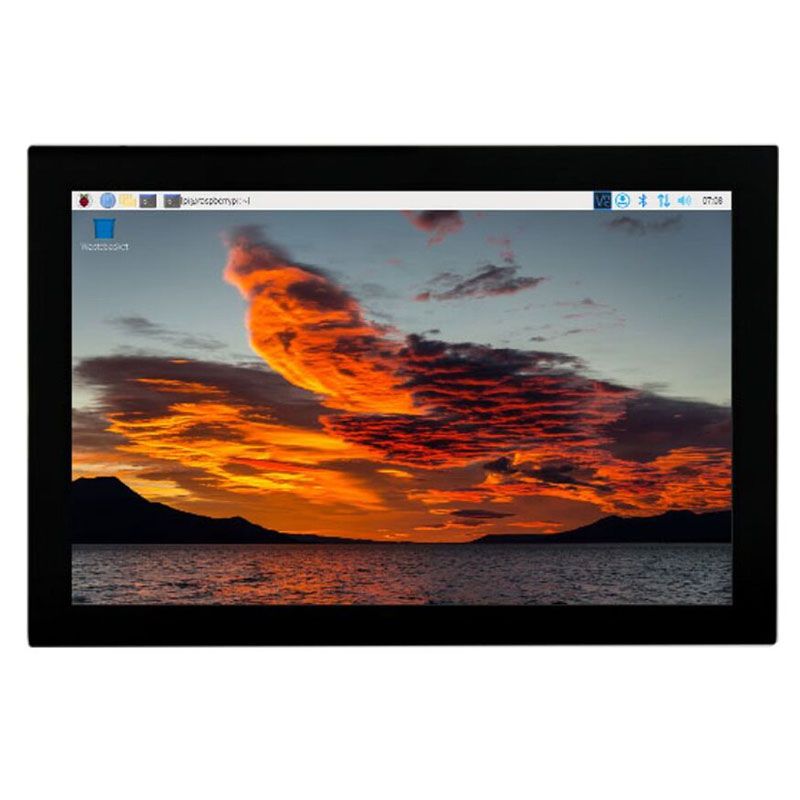

8 inch HDMI LCD Screens for Raspberry PI
Here are the key points about this 8 inch HDMI LCD Screens :
- 8 inch standard display, 1280 × 800 resolution
- Tempered glass cover, Hardness up to 6H, scratch-resistant and durable
- High-sensitivity capacitive touch screen, Supports up to 5-point touch
- It supports access to multiple devices and can connect to mainstream development boards such as Raspberry Pi, Banana Pi, and BB Black.
- It can connect to mainstream game consoles such as PS4, Xbox360, and Switch.
- It can connect to mainstream TV boxes and digital cameras (for display only).
- Supports multiple system displays,Supports Raspbian, Kali linux, Ubuntu, Kodi, Win10 IOT and other systems, touch driver-free
- Supports Win7/8/10/11 and other systems, touch driver-free
- CE and RoHS certified
8″ Raspberry Pi Screen Key Parameters
| 8″ Raspberry Pi Screen Key Parameters | |||
| Dimensioni (pollici) | 8 | Module power | 3.79W (100% brightness) |

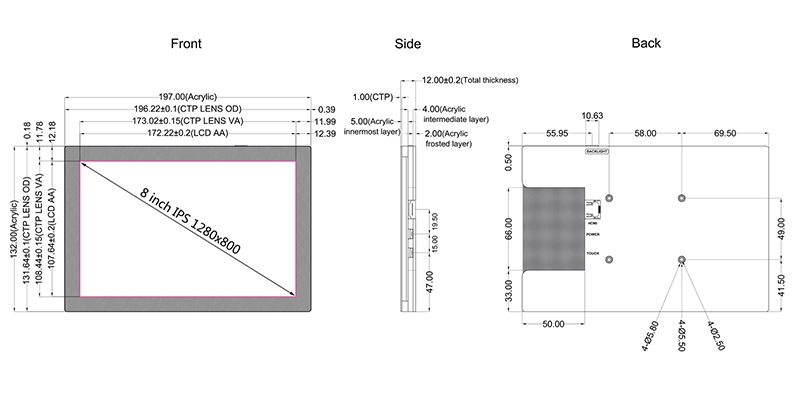

| Resolution (pixels) | 1280×800 | Module size (mm) | 197.0×132.0×12.0±0.2 |
| Display material | IPS full-view panel | Packaging size (mm) | 234.0×164.0×62.0 |
| Tocco | Touch screen capacitivo | Product weight | 610 g |

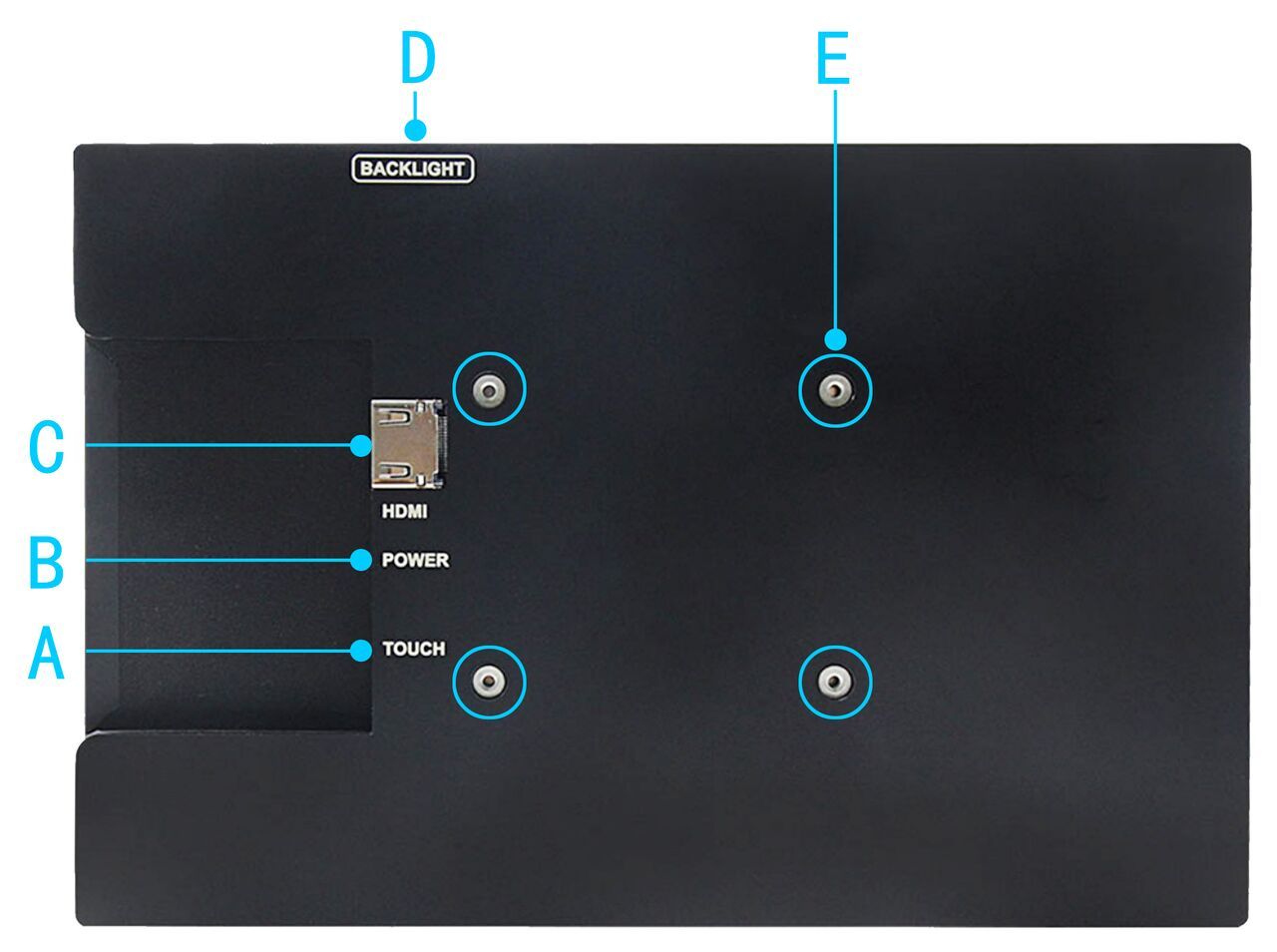

8 inch HDMI LCD Screens Interface Function
| Button & Interface | Note |
|---|---|
| A: Touch interface | Micro USB cable is used to connect with the signal source device. We use this interface for touch and power supply. |
| B: Power interface | Using micro USB cable and power connection, this interface is only used for power supply. |
| C: HDMI interface | Use HDMI cable to connect with signal source equipment, and the maximum supported resolution is 1080p. |
| D: Side key |
|

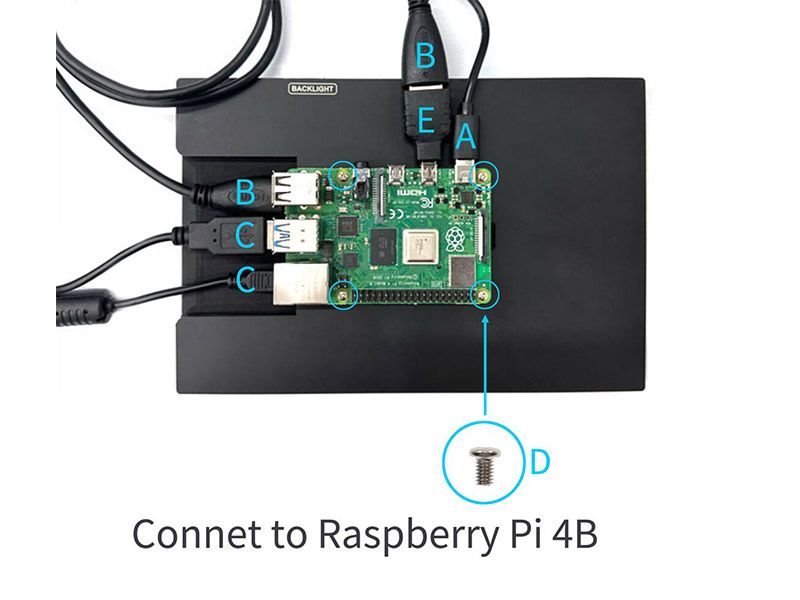

| E: Copper pillar | Used to fix Raspberry Pi (M2.5 mounting) |
Display LCD TFT Miqidisplay forniscono effetti visivi vividi e a colori, in grado di mostrare immagini luminose, animazioni veloci, grafica complessa, caratteri personalizzati e varie opzioni touchscreen. Supportano diverse opzioni di interfaccia, come HDMI, SPI, LVDS, MIPI, RGB e EDP.
Questi display presentano dimensioni e risoluzioni standard del settore.
