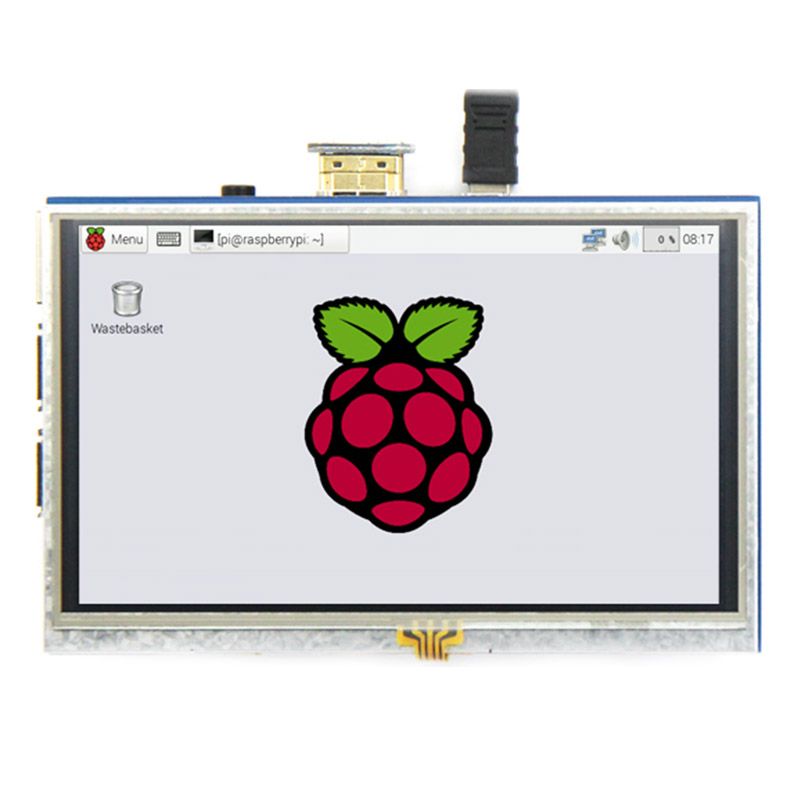

5 inch TFT Display Raspberry PI Keyboard on Screen
Here are the key points about this 5 inch TFT Raspberry PI Display :
- 5 inch standard display 800 × 480 resolution
- The device has a resistive touch screen that supports touch control. Users can control the backlight independently, and turning off the backlight can save power. It also supports the standard HDMI interface input and is compatible with Raspberry Pi (1st, 2nd, and 3rd generations), meaning users can directly plug in these devices.
-
- used as a raspberry pie display that supports Raspbian, Ubuntu, kali, Kodi(no touch), win10 IOT(no touch)
- work as a PC monitor, support XP,win7, win8, win10 system(do not support touch)
- CE, certificazione ROHS
5″ Raspberry Pi Screen Key Parameters
| 5″ Raspberry Pi Screen Key Parameters | |||
| Dimensione (pollici) | 5 | Module power | 0.34A@5V |

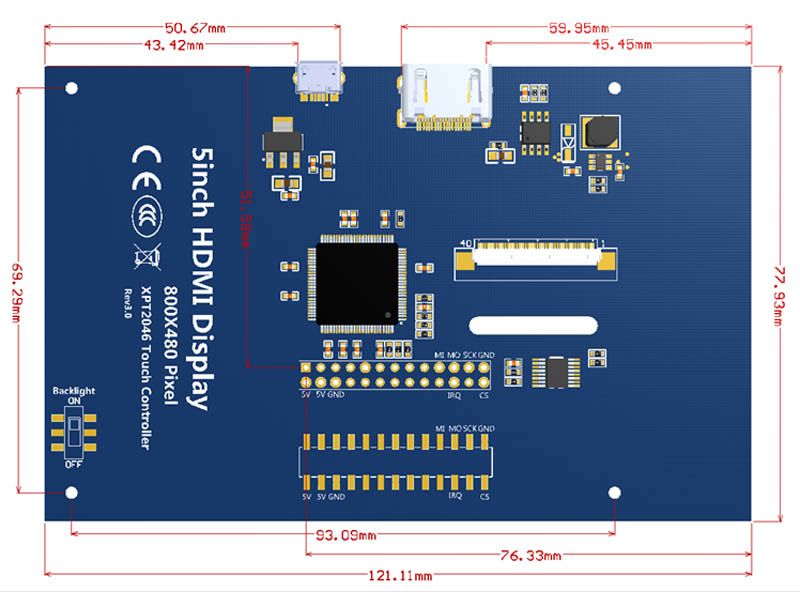

| Resolution(pixels) | 800×480 | Module size(mm) | 121.11×77.93 |
| Display material | IPS TFT panel | Package Dimension | 105.11×64.80 |
| Tocco | 4 wire resistive | Product weight(g) | 206 |

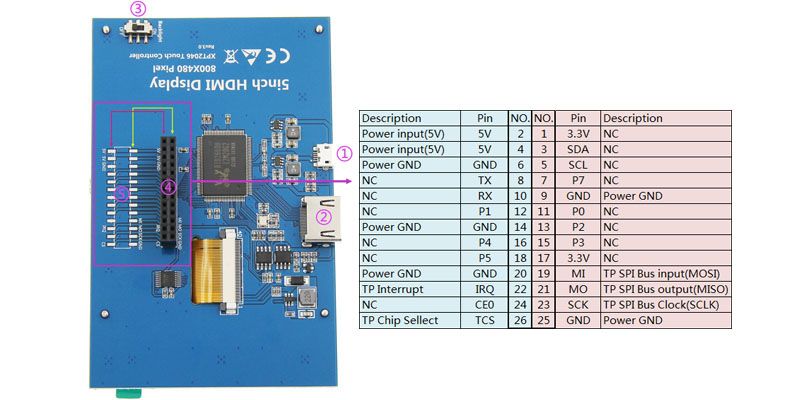

| Button & Interface | Note |
|---|---|
| ① USB power supply interface | USB power input (5V). If the mother socket in Figure ④ is connected to the Raspberry Pi for power, this USB port can be left unconnected |
| ② HDMI interface | Used to connect the motherboard and LCD display for HDMI transmission |
| ③ Backlight switch | Control the backlight on and off to save power |

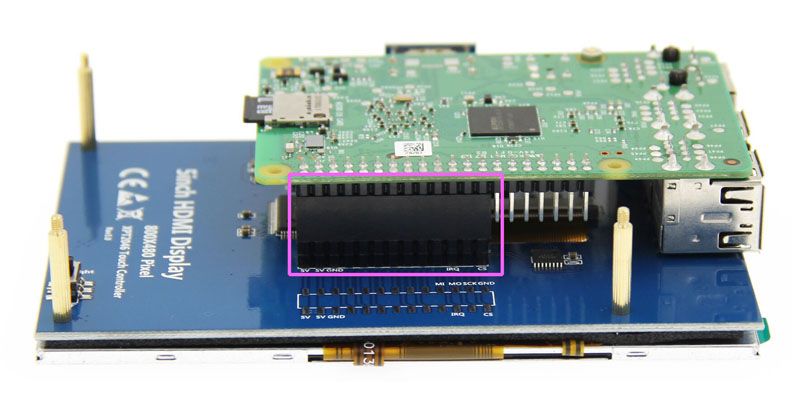

| ④ Power and touch interface | Power the LCD screen from the Raspberry Pi, and transmit the touch signal back to the Raspberry Pi through GPIO |
| ⑤ Expansion interface | PIN to PIN lead out the GPIO port occupied by the mother socket in Figure ④ for easy expansion |
Display LCD TFT Miqidisplay forniscono effetti visivi vividi e a colori, in grado di mostrare immagini luminose, animazioni veloci, grafica complessa, caratteri personalizzati e varie opzioni touchscreen. Supportano diverse opzioni di interfaccia, come HDMI, SPI, LVDS, MIPI, RGB e EDP.
Questi display presentano dimensioni e risoluzioni standard del settore.
