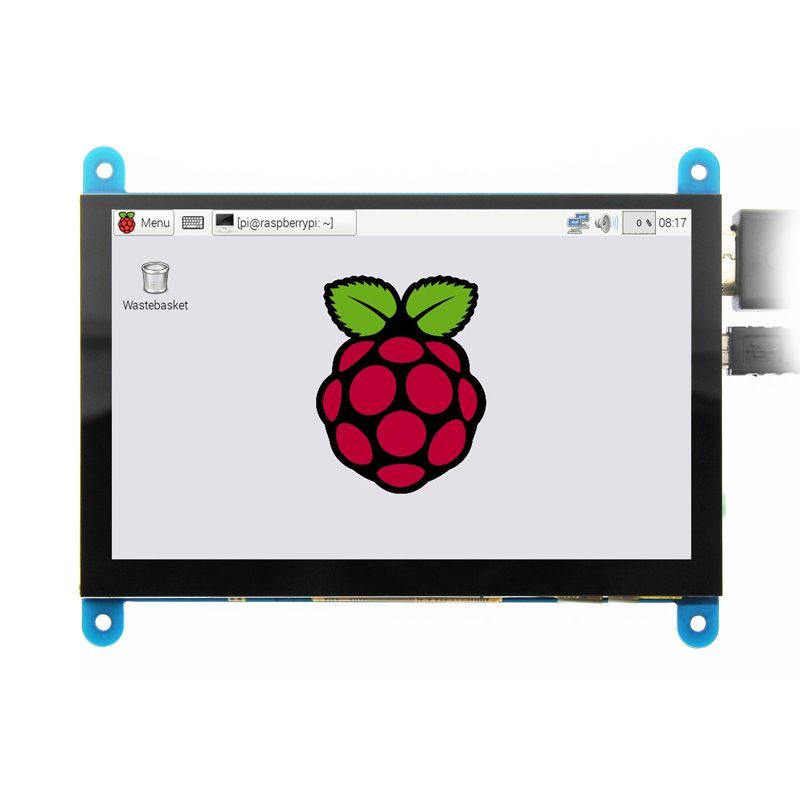

5.0 inch Raspberry PI Screen Introduction
Here are the key points about this 5 inch Raspberry PI Screen :
- Hardware resolution 800×480, resolution can be configured through software (up to 1920X1080 supported)
- Supports 5-point capacitive touch control, USB touch, driver-free
- Built-in OSD menu adjustment function (adjustable contrast/brightness/power on/off, etc.)

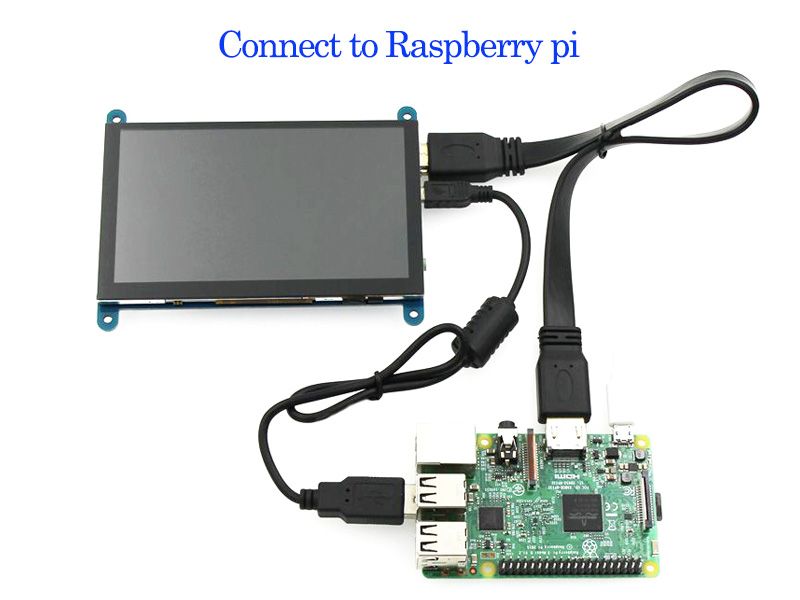

- Compatible with mainstream mini PCs such as Raspberry Pi, BB Black, Banana Pi
- As a Raspberry Pi monitor, it supports Raspbian, Ubuntu, WIN10 IOT and other systems, single-point touch, driver-free
- As a computer monitor, it supports Windows 7/ 8/ 8.1/ 10, five-point touch, driver-free
- Supports common game consoles such as Microsoft Sony PS4, XBOX360 and Nintendo
- This product has passed CE and RoHS certification
5″ Raspberry Pi Touch Screen Key Parameters
| 5″ Raspberry Pi Touch Screen Key Parameters | |||
| Dimensione (pollici) | 5 | Module power | 0.30A@5V |

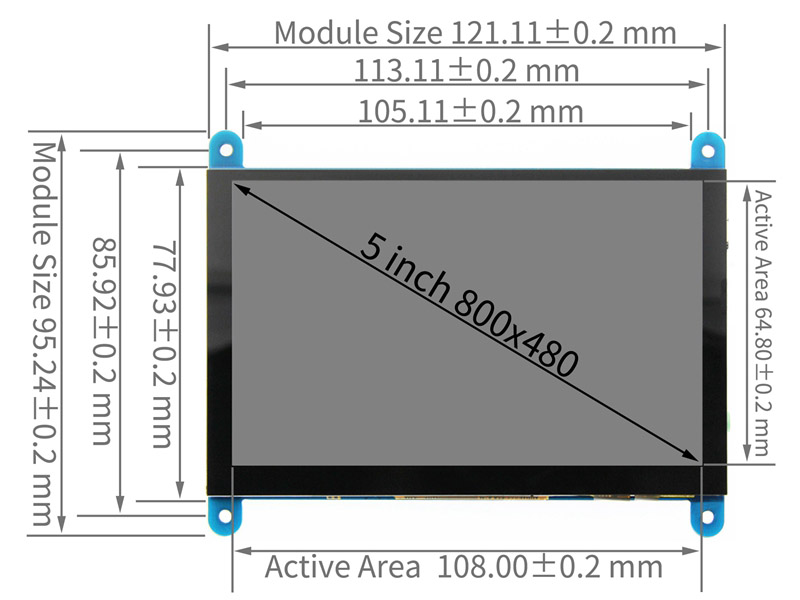

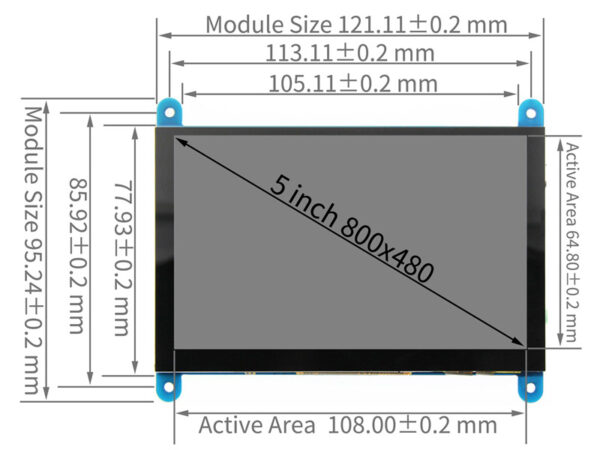

| Resolution(pixels) | 800×480 | Module size(mm) | 121.11×95.24 |
| Display material | IPS TFT panel | Area attiva (mm) | 105.11×64.80 |
| Tocco | 5 point capacitive touch | Product weight(g) | 259 |

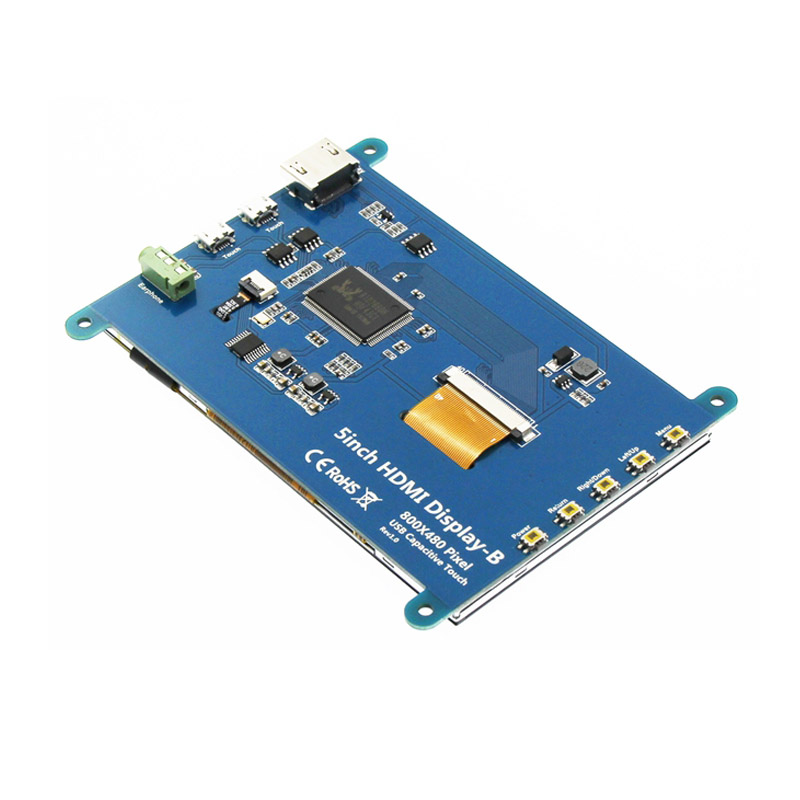

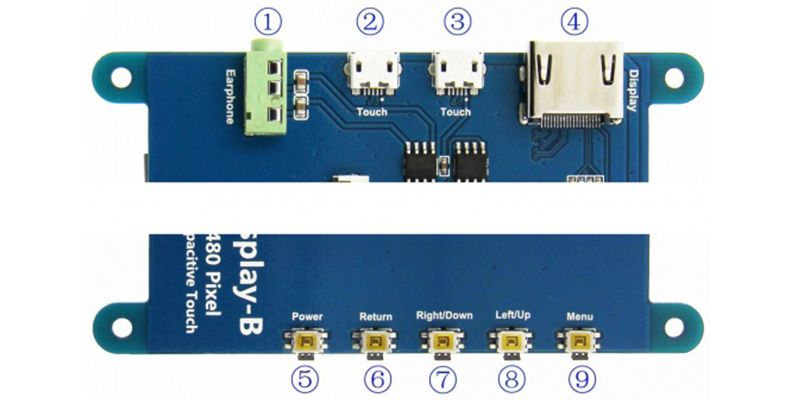

5 inch Raspberry PI Screen Interface Function：
| Button & Interface | Note |
|---|---|
| ① Earphone | 3.5mm audio output interface |
| ②&③ Touch | USB touch/power supply interface, used for power supply and touch output, the two functions are the same, just connect any one |
| ④ Display | HDMI interface, used to connect the motherboard and LCD display for HDMI transmission |
| ⑤ Power | Turn on or off the LCD display to reduce power consumption |
| ⑥ Return | Return to the previous level when setting the display menu |
| ⑦ Right/Down | Direction key (backlight shortcut adjustment key) |
| ⑧ Left/Up | Direction key (backlight shortcut adjustment key) |
| ⑨ Menu | Display OSD setting menu / selection key |
Display LCD TFT Miqidisplay forniscono effetti visivi vividi e a colori, in grado di mostrare immagini luminose, animazioni veloci, grafica complessa, caratteri personalizzati e varie opzioni touchscreen. Supportano diverse opzioni di interfaccia, come HDMI, SPI, LVDS, MIPI, RGB e EDP.
Questi display presentano dimensioni e risoluzioni standard del settore.
