Descrizione
19 inch Industrial All-in-One PC main features:
Here are the key points about this 19 inch Industrial All-in-One PC :
- 19-inch LCD, 1280*1024, 4:3, capacitive touch screen
- 1*HDMI
- 2*Intel I210 Gigabit LAN
- 6*porte seriali RS232, COM1~2 porte seriali RS232 DB9, COM2 supporta RS485/422, COM3~6 RS232 su terminale Phoenix 2*15P, COM3 supporta RS485
- GPIO a 4 ingressi e 4 uscite, 4*USB3.0, 2*USB2.0
- Ingresso di tensione ampio 9~36V

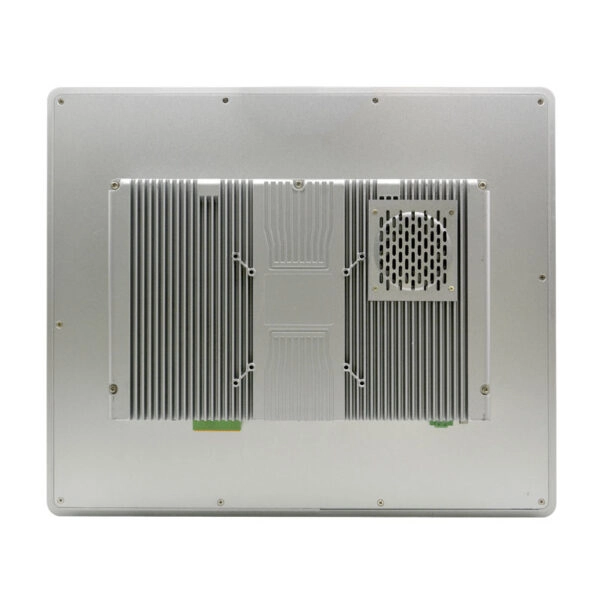

- Materiale in lega di alluminio, struttura di dissipazione del calore senza ventole
19 inch Industrial All-in-One PC
19 inch Industrial All-in-One PC |
||
| Telaio | Materiale/Struttura | Aluminum alloy, fan heat dissipation structure |
| Colore | Silver | |

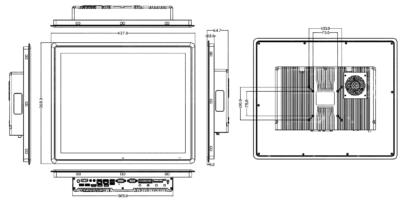

| Dimensions (L×W×H) | 437 × 368 × 65 mm | |
| Peso netto | 6.1 kg | |
| Installazione | Supporto dell'installazione di pannelli VESA/incorporati | |

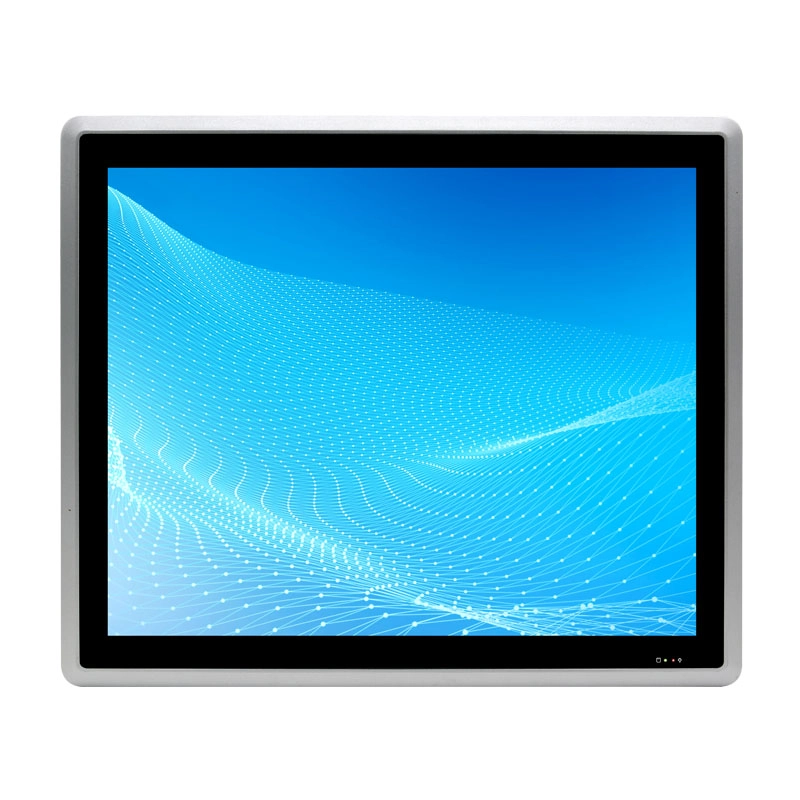

| Display LCD | Tipo | 19 inch LCD, 4:3 full screen |
| Risoluzione | 1280 × 1024 | |
| Luminosità | 250 cd/m² | |
| Schermo tattile | Tipo | Capacitive screen, 10 point touch (can be changed to resistive touch screen) |
| Trasmittanza | ≥86% | |

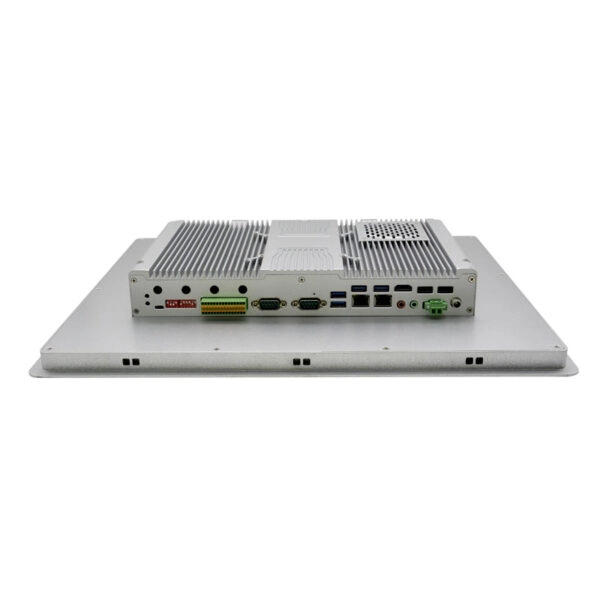

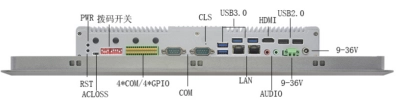

| I/O Interface | POTENZA | 1×power button, 1×one-key restore, 1×ACLOSS (power-on dial switch), 1×CMOS reset button |
| GUIDATO | 1×power indicator, 1×hard disk indicator | |
| Interfaccia di visualizzazione | 1×HDMI | |
| LAN | 2×Intel I210 Gigabit network card, support network wake-up, PXE | |
| USB | 4×USB 3.0, 2×USB 2.0 | |
| COM | 6×RS232 serial port: – COM1 RS232 DB9 serial port – COM2 RS232/485/422 DB9 serial port – COM3-6 RS232 on 2×15P Phoenix terminal – COM3 supports RS485 – COM1-2 support the 9th pin live function |
|
| Terminale Phoenix | 2×15P (4 in 4 out GPO/power switch signal/COM3~COM6/5V VCC/GND) | |
| Interruttore DIP | 10-bit DIP switch: – COM2-3 RS232/485 switching – COM2 RS422 is realized through COM2_SW1 jumper |
|
| Audio | 1×Line out, 1×MIC | |
| Storage | Potenza | 1×DC (5.5×2.5) aviation interface or 1×2P P=5.08mm Phoenix terminal Supports 9V~36V input |
| SATA | 1×2.5-inch hard disk slot | |
| M.2 | 1×M.2/SSD, support Key-M, 2280, NVME PCIEx4 SSD | |
| Estendere | mSATA | 1×mSATA |
| M.2 | 1×M.2/WiFi, Key-E, 2230, supports WiFi module | |
| 1×M.2/5G, Key-B, 2242/52, supports 5G module | ||
| System Support | Windows | Windows 10 |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (256 levels, 0~255 seconds) | |
| Potenza | Tipo di alimentazione | Adattatore di alimentazione esterno |
| Ingresso di tensione | Ampia tensione 9V~36V | |
| Potenza in uscita | AC to DC 60W or above | |
| Ambiente | Temperatura di esercizio | -10℃ to 50℃ |
| Temperatura di stoccaggio | -20 ℃ a 70 ℃ | |
| Umidità relativa | 5% to 95% relative humidity, no condensation | |
| Vibrazioni di funzionamento | 0.5g rms/5-500Hz/random/operating | |
