Descrizione
17 inch Industrial Panel main features
Here are the key points about this 17 inch Industrial Panel :

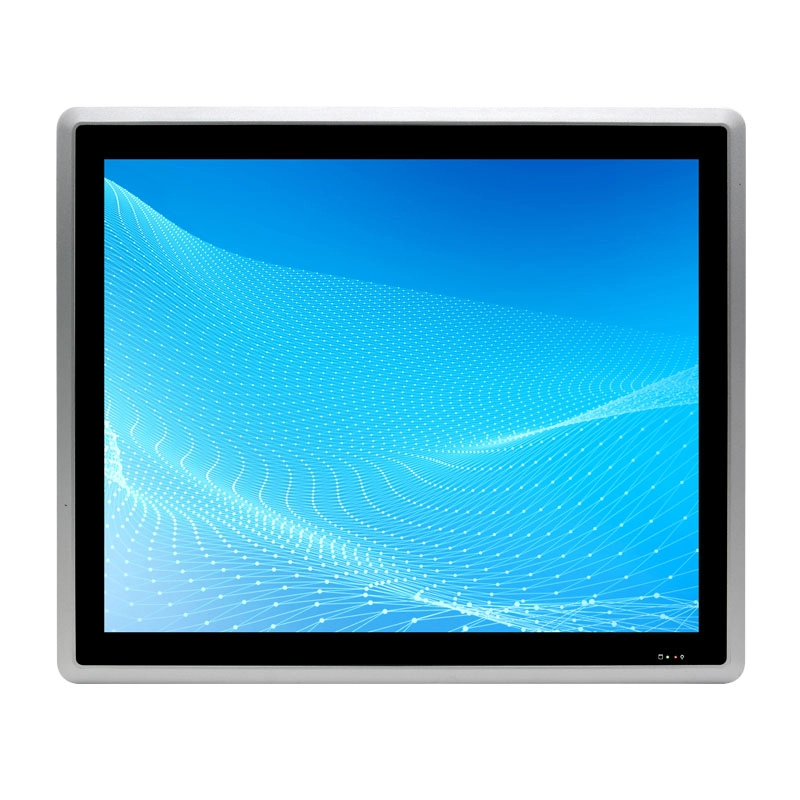

- 17-inch LCD, 1280*1024, 4:3, capacitive touch screen
- 1*HDMI
- 2*Intel I210 Gigabit LAN
- 6*porte seriali RS232, COM1~2 porte seriali RS232 DB9, COM2 supporta RS485/422, COM3~6 RS232 su terminale Phoenix 2*15P, COM3 supporta RS485
- GPIO a 4 ingressi e 4 uscite, 4*USB3.0, 2*USB2.0
- Ingresso di tensione ampio 9~36V

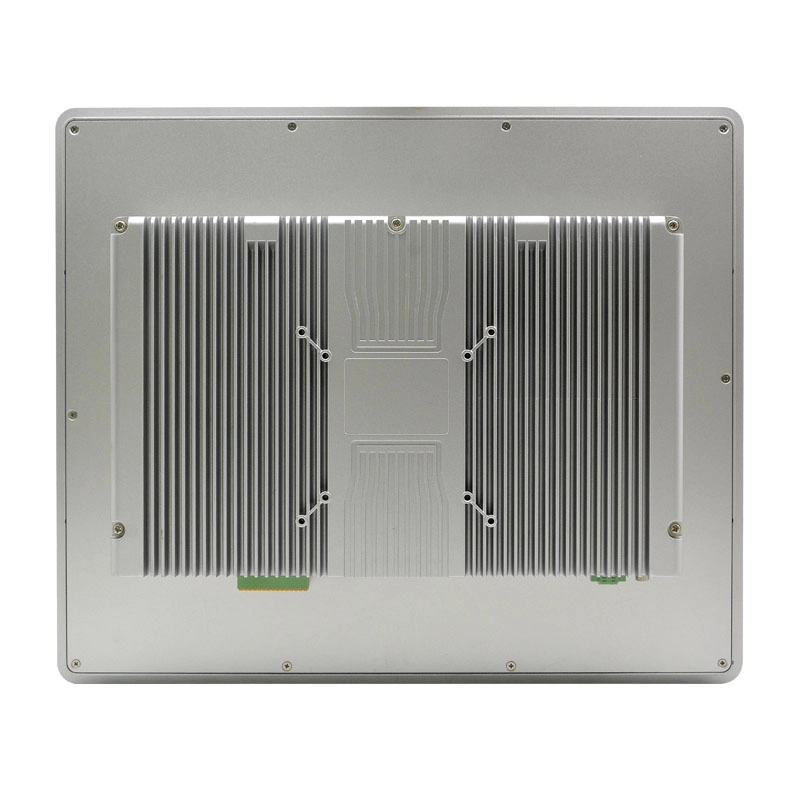

- Materiale in lega di alluminio, struttura di dissipazione del calore senza ventole
17 inch Industrial All-in-One Panel PC
17 inch Industrial All-in-One Panel PC |
||
| Telaio | Materiale/Struttura | Materiale in lega di alluminio, struttura di dissipazione del calore senza ventole |
| Colore | Silver | |

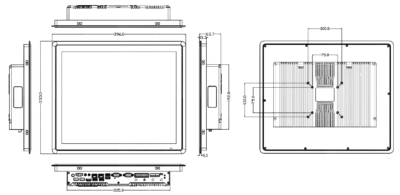

| Dimensions (L×W×H) | 396 × 333 × 64 mm | |
| Peso netto | 5.12 kg | |
| Installazione | Supporto dell'installazione di pannelli VESA/incorporati | |
| Display LCD | Tipo | 17 inch LCD, 4:3 full screen |
| Risoluzione | 1280 × 1024 | |
| Luminosità | 250 cd/m² | |
| Schermo tattile | Tipo | Capacitive screen, 10 point touch (can be changed to resistive touch screen) |
| Trasmittanza | ≥86% | |
| I/O Interface | POTENZA | 1×power button, 1×one-key restore, 1×ACLOSS (power-on dial switch) |
| GUIDATO | 1×power indicator, 1×hard disk indicator | |
| Interfaccia di visualizzazione | 1×HDMI | |
| LAN | 2×Intel I210 Gigabit network card, support network wake-up, PXE | |
| USB | 4×USB 3.0, 2×USB 2.0 | |

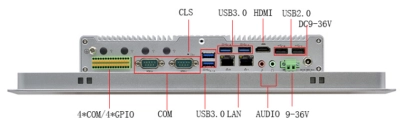

| COM | 6×RS232 serial port: – COM1 RS232 DB9 serial port – COM2 RS232/485/422 DB9 serial port – COM3-6 RS232 on 2×15P Phoenix terminal – COM3 supports RS485 – COM1-2 support the 9th pin live function |
|
| Terminale Phoenix | 2×15P (4 in 4 out GPO/power switch signal/COM3~COM6/5V VCC/GND) | |
| Interruttore DIP | 10-bit DIP switch: – COM2-3 RS232/485 switching – COM2 RS422 is realized through COM2_SW1 jumper |
|
| Audio | 1×Line out, 1×MIC | |
| Storage | Potenza | 1×DC (5.5×2.5) aviation interface or 1×2P P=5.08mm Phoenix terminal Supports 9V~36V input |
| SATA | 1×2.5-inch hard disk slot | |
| M.2 | 1×M.2/SSD, support Key-M, 2280, NVME PCIEx4 SSD | |
| Estendere | mSATA | 1×mSATA |
| M.2 | 1×M.2/WiFi, Key-E, 2230, supports WiFi module | |
| 1×M.2/5G, Key-B, 2242/52, supports 5G module | ||
| Potenza | Tipo di alimentazione | Adattatore di alimentazione esterno |
| Ingresso di tensione | Ampia tensione 9V~36V | |
| Potenza in uscita | AC to DC 60W or above | |
| Ambiente | Temperatura di esercizio | -10℃ to 50℃ |
| Temperatura di stoccaggio | -20 ℃ a 70 ℃ | |
| Umidità relativa | 5% to 95% relative humidity, no condensation | |
| Vibrazioni di funzionamento | 0.5g rms/5-500Hz/random/operating | |
We provide comprehensive customization services:
cable adjustments, capacitive/resistive touchscreen upgrades with custom glass, interface integration (HDMI, USB, etc.), connector modifications, PCB tweaks, cover glass additions, versatile mounting options, and custom backlights (voltage, brightness, color).
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
Visual access control displays deliver high brightness, HD quality, and shape customization.
Submit your project requirements via our form for a personalized solution within 48 hours.
